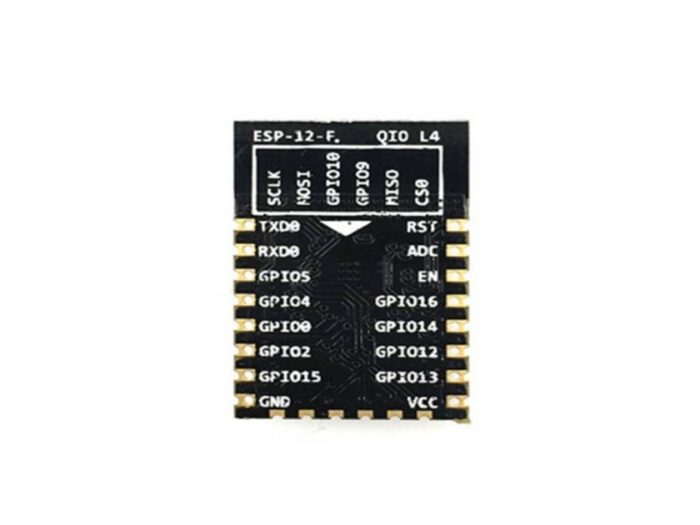

ESP8266 12F ESP-12F WiFi Board Module

215.00 {Inc. GST}

Without GST Price Rs. 182.20

GST Input Tax Credit is available

1 in stock

SKU: OMP-W030 Category:


WIFI module based on the ESP8266 controller
ESP8266-12F is an improved version of ESP8266-12E
It works as a standard Wi-Fi 802.11 b / g / n 2.4 GHz. It is equipped with 22 outputs (pitch 2 mm) of which 11 are GPIO, ADC 1 and SPI. A LED and a PCB antenna have been incorporated
Supply voltage: 3.3V (LOGICAL LEVELS: 3.3V)
Supported protocols: 802.11 b / g / n
Network support: 2.4 GHz
Band: 2400 (MHz)
Wi-Fi Direct (P2p), Soft Access Point
Integrated TCP / IP Stack
PLL, regulators and integrated energy management units
Output power: 0.15 (W); + 19.5dBm in 802.11b mode
Consumption in low energy mode: <10 uA
Integrated 32-bit processor
Supports WPA / WPA2
Supports Lua, AT
Supports three operating modes: AP, STA, STA + AP
Communication interface type: SPI, Serial, UART (115200 bps)
Size: 24 mm x 16mm
The characteristics that distinguish module ESP-12F:
Digital I / O Pins: 11 x GPIO
ADC Input (Analog Digital Converter)
SPI interface

Dispatch From:- Mumbai

Additional information

Weight 50 g
