T56 Programmer With 48 Adapter

32000.00 {Inc. GST}

Support :- For Software Installation

GST Input Tax Credit is available

Dispatch Time 15 to 17 days

SKU: OMP-PR086 Category:

Description

XGecu T56 Parameters
Note: Be sure to use the original USB cable, if you use HUB, it must be a high quality HUB
 PIC32MZ 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure, USB2.0 HS 480MHZ transmission
 Volume: 12.9cm x 8.5cm x 2.9cm
 56-pins powerful pins drivers IO design. Maximum operating frequency of 50MHZ for all pins, extremely high reliability.
 Stable and reliable 8P in-circuit programmable ISP interface with wire length of more than 40CM, reliable communication
at 25-45MHZ.
 The highest clock frequency can reach up to 40MHZ-50MHZ for 25 series/EMMC in-circuit programming.
 VCC voltage 1.2-6.5V, 64 levels adjustable, VPP voltage 6.5-25V 64 levels adjustable.IO voltage 1.2V-3.6V continuously
adjustable. VCC 120MA-320MA multilevel over current protection continuously adjustable. VPP 120MA overcurrent
protection.
 Power consumption: 5V <500MA. Static power consumption: 180mA , All chips do not need an external power supply.
 Allow to use an external power supply 5V-5.5V 500MA.
 The programmer has multiple protection for external power supply: over-voltage protection/reverse connection
protection/over-current protection/under-voltage prompt.
 Maximum read-write speed can reach up to 25-45MB/s
 Open self-test function, self-test on each pin of VPP/VCC/GND/IO
 Suitable for developers and maintenance personnel, suitable for small batch production, support simultaneously working with 4 Programmers on each computer.
Function test:
The first development-type programmer to really test common logic ICs to test for errors
that can be located to logic gates, and to test any possible combinations of inputs in an integrated circuit when testing.

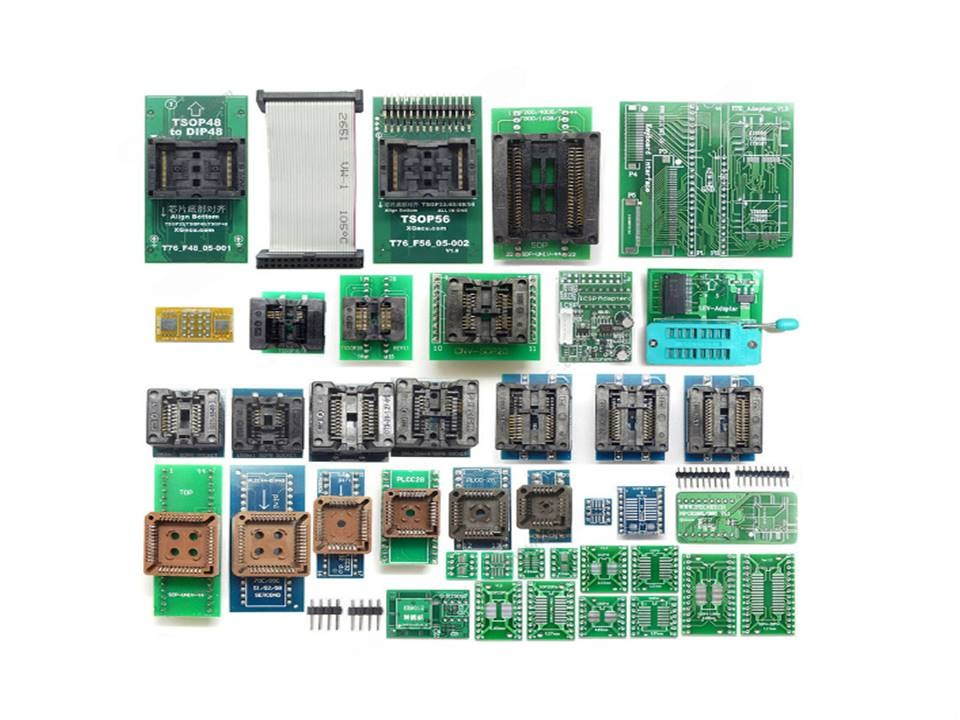

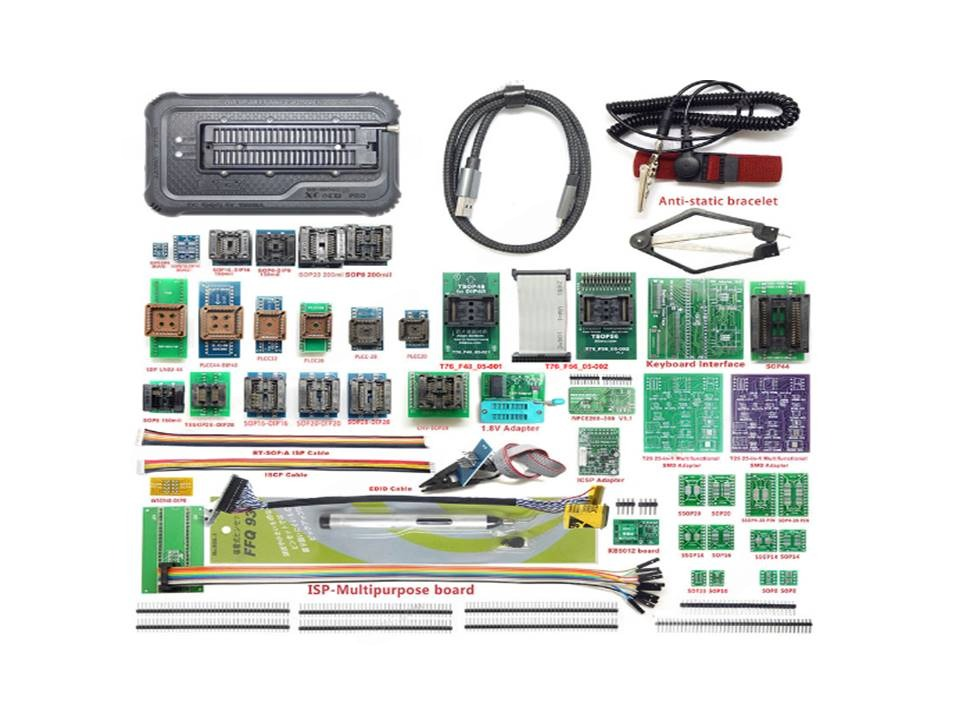

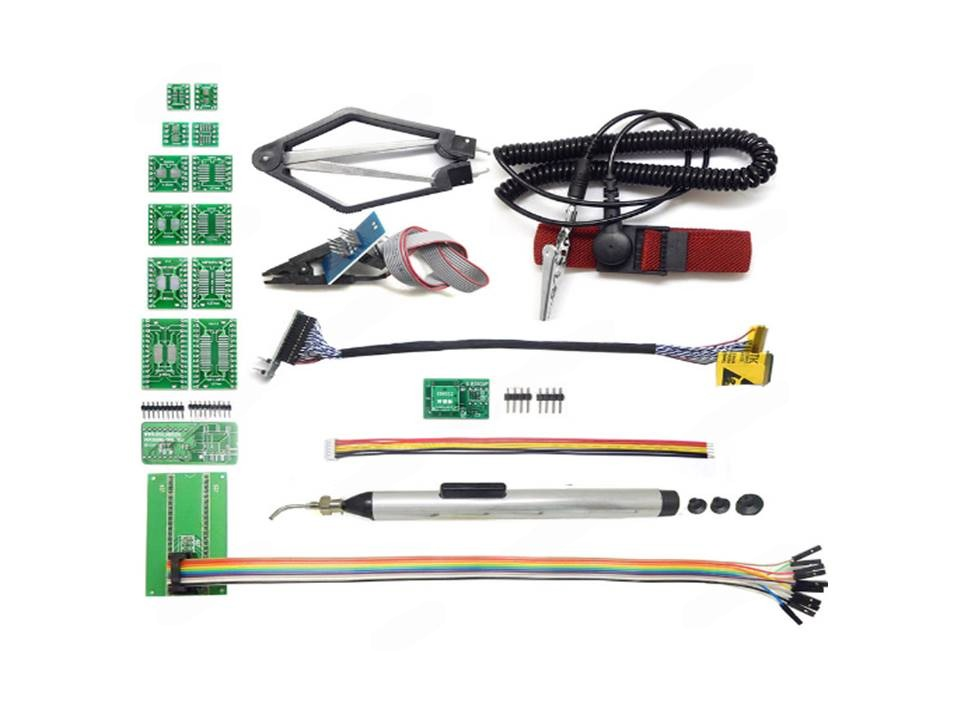

Packing List:
1 * XGecu T56 universal programmer
1 * TSOP56/48/40/32 Adapter
1 * ADP-SSO-056-0.8  Adapter
1 * TSOP48 Adapter
1 * SOP44-DIP44 1.27mm (530mil) Adapter
1 * SOP28-DIP28 (300mil) Adapter
1 * SOP20-DIP20 (300mil) Adapter
1 * SOP16-DIP16 (300mil) Adapter
1 * Double SOP8-DIP16 CNV-SOP20 (208mil) Adapter
1 * SOP8-DIP8 CNV-SOP20 (208mil) Adapter
1 * SOP20-DIP20 CNV-SOP20 (208mil) Adapter
1 * SOP8-DIP8 CNV-SOP-DIP16 (150mil) Adapter
1 * SOP16-DIP16 CNV-SOP-DIP16 (150mil) Adapter
1 * PLCC44-DIP44
1 * PLCC44-DIP40
1 * PLCC32-DIP32
1 * PLCC28-DIP28
1 * PLCC28-DIP24
1 * PLCC20-DIP20
1 * SSOP28 to DIP28
1 * TSSOP8 to DIP8
1 * KB9012 board
1 * SOP8 IC Clip
1 * ITE 29/39/49/50 series 32/40/48 feet adapter
1 * Multipurpose ISP-DuPont-Header Adapter
1 * EC NPEC288 NPEC388 PCB Board
1 * TSOP28Pin 0.65mm Adapter Board
1 * SOP28Pin 1.27mm Adapter Board
1 * TSOP20Pin 0.65mm Adapter Board
1 * SOP20Pin 1.27mm Adapter Board
1 * TSOP16Pin 0.65mm Adapter Board
1 * SOP16Pin 1.27mm Adapter Board
1 * TSOP14Pin 0.65mm Adapter Board
1 * SOP14Pin 1.27mm Adapter Board
1 * TSOP10Pin 0.65mm Adapter Board
1 * SOP10Pin 1.27mm Adapter Board
1 * TSOP8Pin 0.65mm Adapter Board
1 * SOP8Pin 1.27mm Adapter Board
1 * QFN8-DIP8 Programador Adapter WSON8-DIP8 8x6mm 6x5mm
1 * SOP8/MSOP8/SSOP8/SOP16-DIP16 simple Adapter
1 * Adapter SOP8-DIP8 simples
1 * 1.8V Conversion Block 25 series low voltage chip adapter
1 * ICSP Cable
1 * LCD LED screen EDID Cable
1 * IC Chip Extractor
1 * Suction Pen
1 * USB Cable
1 * VGA Cable
1 * Anti-Static Wristband Wrist Strap Band ESD Discharge PC Electricity Grounding

Additional information

Weight 750 g
