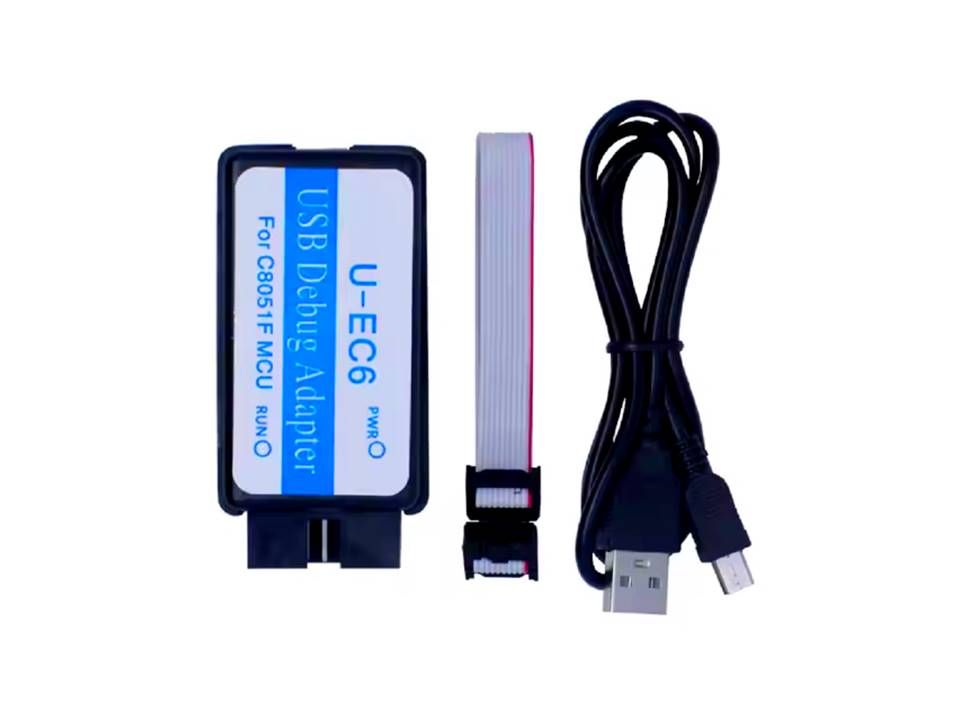

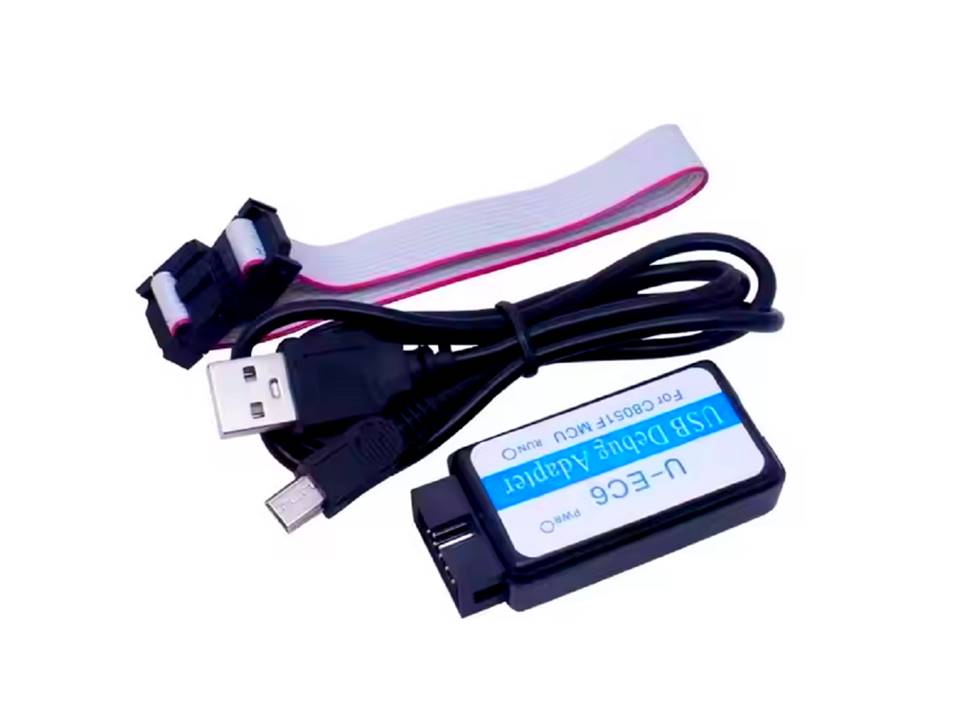

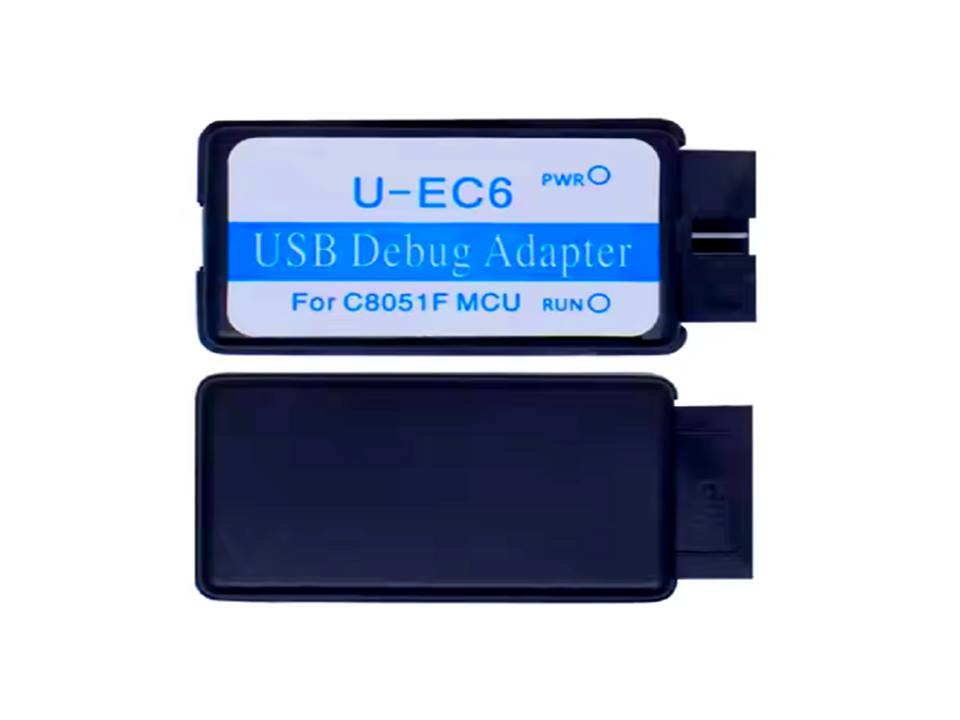

C8051F MCU Emulator U-EC6 USB Debug Adapter Downloader JTAG/C2 Mode with Cable

2190.00 {Inc. GST}

GST Input Tax Credit is available

Dispatch Time 12 to 15 days

SKU: OMP-V294 Category:

Description

The C8051F MCU Emulator U-EC6 USB Debug Adapter Downloader is a versatile tool designed for debugging and programming C8051F series microcontrollers. Here are its key features and specifications:

Features:

  1. Compatibility: Based on the USB Debug Adapter emulator design from Silicon Labs, compatible with EC3/EC5 debuggers.
  2. Functionality: Supports procedure download and online emulation.
  3. Interface: USB 2.0 interface for easy connectivity, with free installation drivers.
  4. Protection: Hardware strengthened protection to reduce damage from improper use.
  5. Size and Design: Compact size (L)70*(W)45*(H)18 mm with a PVC waterproof surface sticker for durability and aesthetics.
  6. Production: Utilizes machine placement for bulk production.
  7. Software Compatibility: Can be connected with Keil software and all official software launched by Silicon Labs, including Silicon Laboratories IDE, FLASH Utility Programmer, Product Programmer, etc.
  8. Supported Devices: Supports a wide range of C8051F single-chip microcontrollers, including those with JTAG and C2 interfaces.
  9. Firmware Update: Firmware automatically updates to support a full range of C8051F chip emulation and subsequent MCU series.

Functions:

  1. Multicircuit Protection: Self-repair fuse protects the computer’s USB power supply module.
  2. Double Buffer Chip: Prevents damage to the main chip directly.
  3. Double Power Output: Supports 5V/500mA and 3.3V/500mA power outputs, facilitating direct power supply to the target board for development.
  4. Quality USB Cable: Included USB cable ensures reliable connectivity.
  5. Emulator Interface Definition: Supports both C8051F JTAG and C2 interfaces.
  6. Debugging Features: Supports JTAG and C2 mode, with up to 4 breakpoints during debugging, requiring only 2 connections.

Overall, the C8051F MCU Emulator U-EC6 USB Debug Adapter Downloader provides a reliable and efficient solution for debugging and programming C8051F series microcontrollers, with comprehensive protection features and convenient power supply options.

Additional information

Weight 200 g
