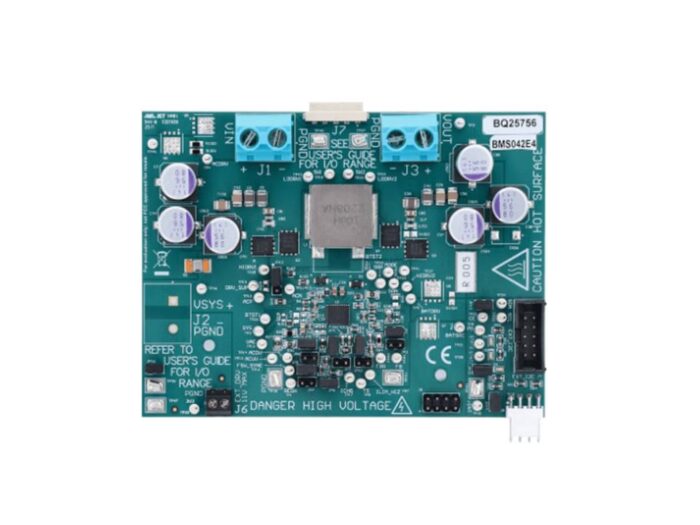

BQ25756EVM Evaluation Board
₹36000.00 {Inc. GST}
GST Input Tax Credit is available
Dispatch Time 15 to 17 days
The BQ25756EVM evaluation module (EVM) is a
complete evaluation system for the BQ25756 IC, a
buck-boost battery charge controller with a wide input
range of 4.2V – 70V, a wide output voltage range of up
to 70V, and bi-directional capabilities.
The BQ25756EVM has a max input and output of 55V
and a max charge current of 10A.
Features
- Wide input voltage operating range: 4.2 V–55 V
- Wide output operating range: up to 55V with CC/CV support for:
– 2– to 13–Cell Li-Ion
– 2– to 14–Cell LiFePO4
- Synchronous buck-boost DC/DC charge controller with NFET drivers
– Adjustable switching frequency from 200kHz to 600kHz
– Optional synchronization to external clock
– Optional gate driver supply input for optimized efficiency
- Resistor-programmable standalone with added I2C Mode
- Built in MPPT to maximize power from solar panel arrays
- Power up from battery (reverse mode) output 4V to 55V
- High safety integration
– Adjustable input overvoltage and undervoltage protection
– Output Overvoltage and overcurrent protection
