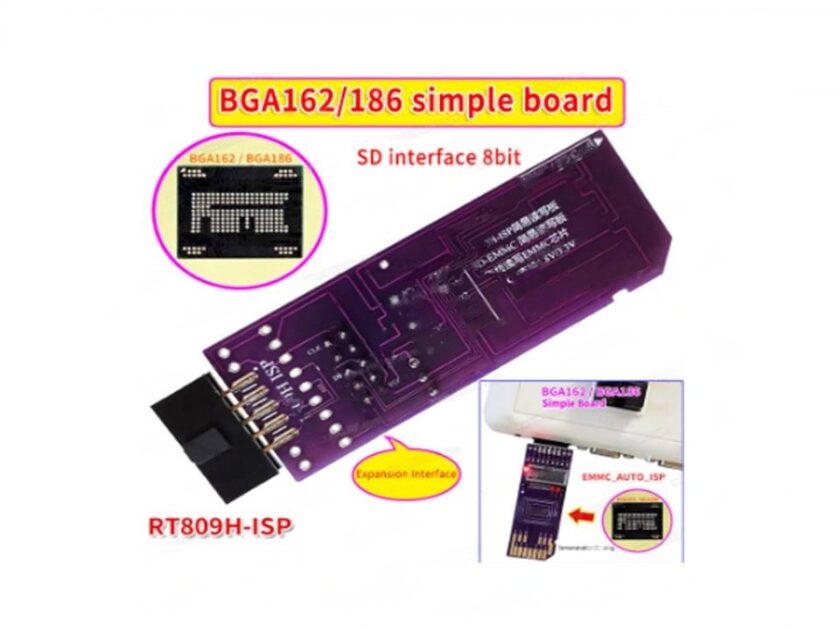

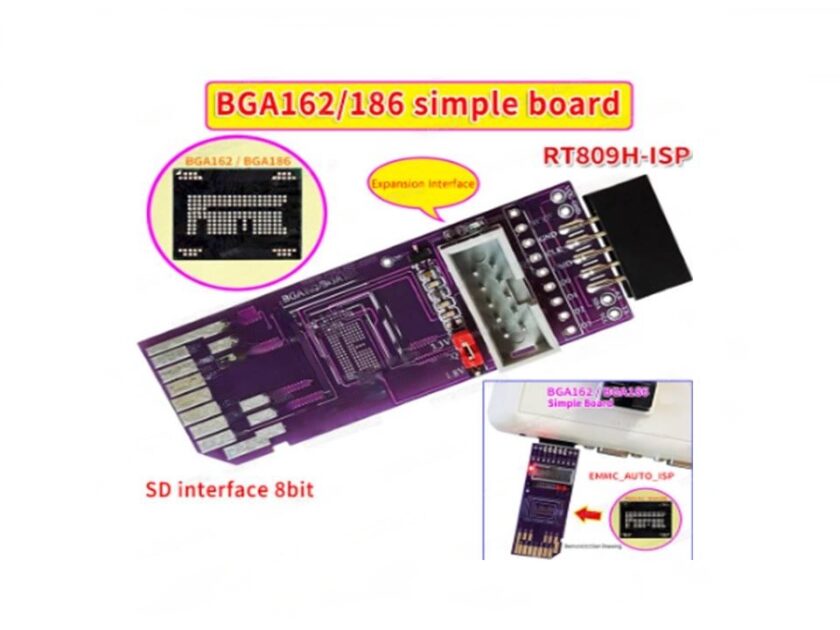

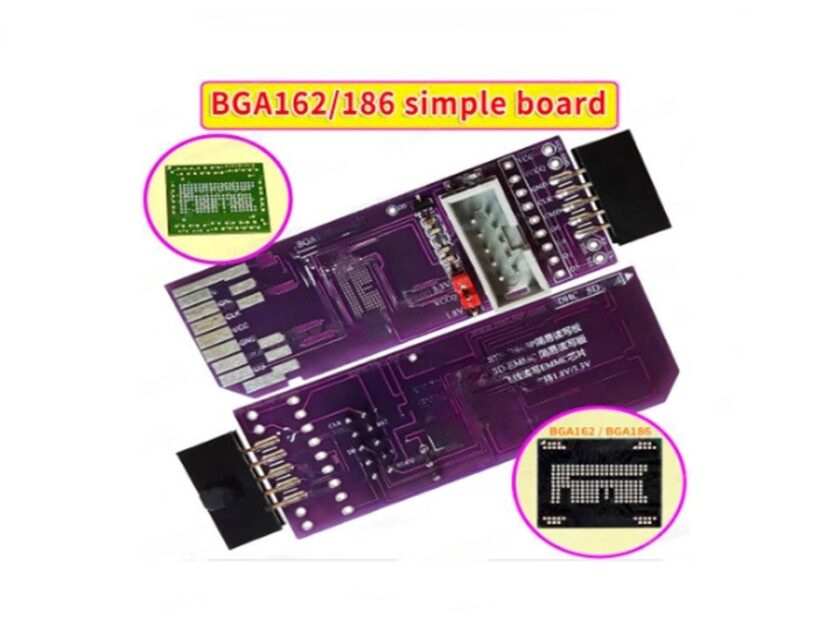

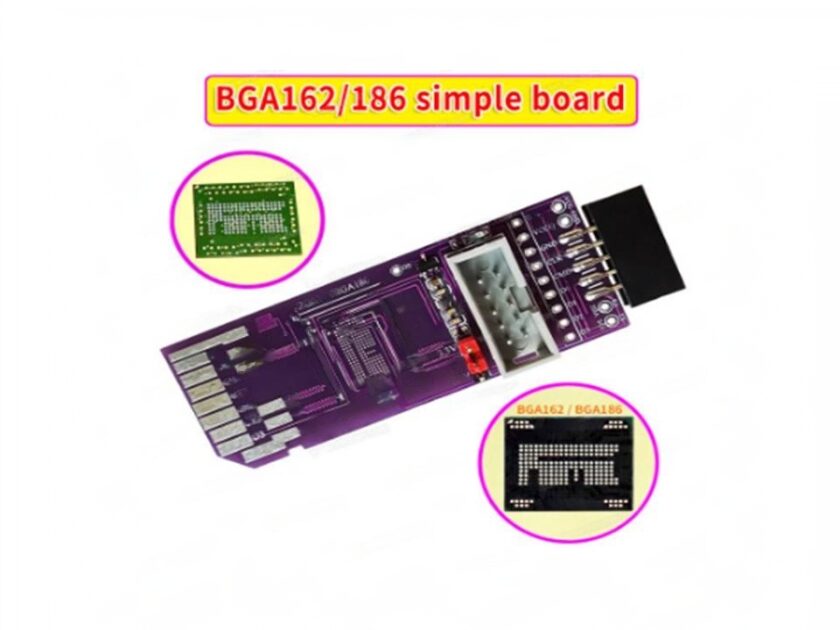

BGA162/186 Simple Reading and Writing Board SD-EMMC 8bit 1.8V RT809H-ISP Detachable Flywire Adapter Board

The BGA162/186 Simple Reading and Writing Board SD-EMMC 8bit 1.8V RT809H-ISP Detachable Flywire Adapter Board is a specialized tool designed for reading and writing data to eMMC (embedded MultiMediaCard) and SD NAND flash memory chips. It is commonly used in conjunction with the RT809H ISP (In-System Programming) tool, which is a popular device for repairing and programming various types of memory chips.

    Key Features:

1. Compatibility:

   – Supports BGA162 and BGA186 eMMC and SD NAND chips.

   – Works with 8-bit eMMC chips operating at 1.8V.

2. Detachable Flywire Design:

   – The adapter board features a detachable flywire design, making it easier to connect to the target chip without soldering.

   – This is particularly useful for chips that are not easily accessible on the PCB.

3. RT809H ISP Support:

   – Designed to work seamlessly with the RT809H ISP programmer, enabling reading, writing, and cloning of eMMC and SD NAND chips.

4. Simple and Efficient:

   – The board simplifies the process of accessing and programming eMMC chips, which are commonly used in smartphones, tablets, and other embedded devices.

5. Applications:

   – Used in repairing or recovering data from devices with eMMC or SD NAND storage.

   – Ideal for firmware updates, chip cloning, and data recovery.

    How to Use:

1. Connect the Adapter Board:

   – Attach the BGA162/186 adapter board to the RT809H ISP programmer.

   – Use the flywire cables to connect to the eMMC or SD NAND chip on the target device.

2. Power and Voltage:

   – Ensure the target chip is powered correctly (1.8V for 8-bit eMMC chips).

   – The RT809H programmer can supply the necessary voltage.

3. Read/Write Operations:

   – Use the RT809H software to read, write, or clone the eMMC/SD NAND chip.

   – Follow the software instructions for specific operations like firmware extraction or flashing.

4. Detach and Reuse:

   – After completing the operation, detach the flywire and adapter board for future use.

    Common Use Cases:

– Data Recovery: Extracting data from a damaged or corrupted eMMC chip.

– Firmware Repair: Flashing new firmware to a device with a corrupted eMMC.

– Chip Cloning: Duplicating the contents of one eMMC chip to another.

    Notes:

– Ensure proper alignment and connection of the flywire to avoid damage to the chip or adapter.

– Always back up the original data before performing any write operations.

This adapter board is a valuable tool for technicians and engineers working with embedded systems and devices that use eMMC or SD NAND storage.
