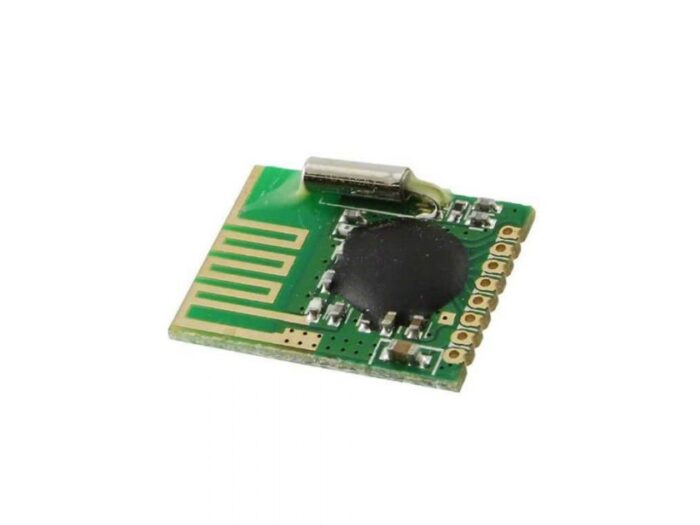

RFM-75 Module

SKU: OMP-W033 Category:



RFM75 is a GFSK transceiver operating in the world wide ISM frequency band at 2400-2483.5MHz. Burst mode transmission and up to 2Mbps air data rate make them suitable for applications requiring ultra low power consumption.

RFM75 operates in TDD mode, either as a transmitter or as a receiver.

The embedded packet processing engines enable their full operation with a very simple MCU as a radio system. Auto re-transmission and auto acknowledge give reliable link without any MCU interference.


Working frequency: 2400MHz–2483.5MHz

Power supply: DC 1.9V–3.6V

Modulation: FSK/GFSK

TX Output Power: 5dBm (1mW)

Rx sensitivity: -88dBm

Data rate: 1Mbps or 2Mbps (software selectable)

TX current: <30mA, Rx current: <23mA

Channel selection: 83 channels

Data interface: SPI

Operating temperature: -40–+85°C

Range: 70m (open air)
