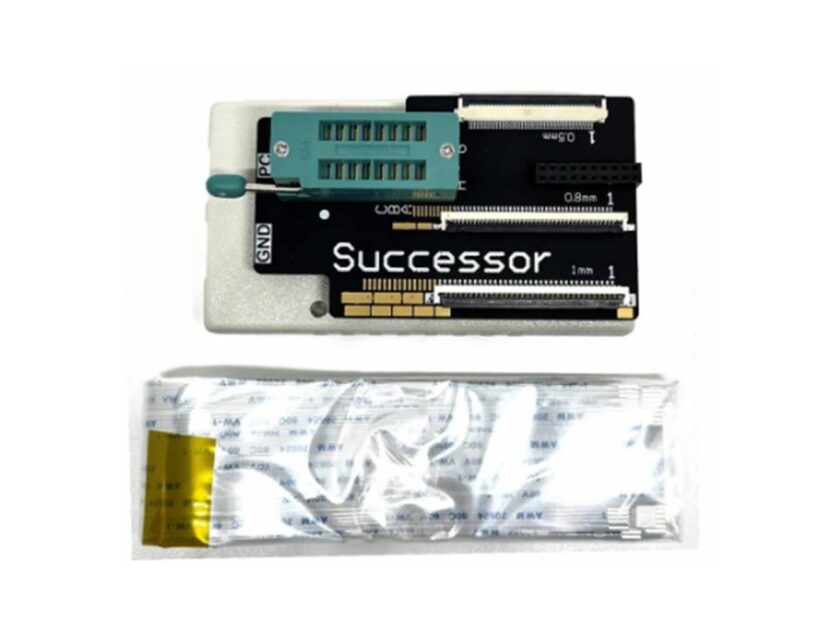

Storage Humidity: 35%~45% Programmer SUCCESSOR (Successor) + BASE3 – programmer for SPI FLASH memory and EC from ENE / ITE / MEC / NUVOTON / EXPLORE. Output control signal levels 1v8 and 3v3. ESD protection is already installed. The Successor programmer is based on a 32-bit ARM® Cortex®-M4 RISC processor 120 MHz USB_FS and FPGA from GoWin. To date, work with SPI FLASH, ITE, ENE, NUVOTON TETRIS are fully supported by KEYBOARD_TEST, MEC , I2C, ITE via the I2C bus The BASE3 has the following installed: – ZIF socket (8 upper for I2C/SPI, 8 lower – AH duplication) It is convenient to work with DIP cases. – connector (black, vertical) for external expansion boards for EC programming (*) – 50 pins with a pitch of 0.5 mm – 34 pins with a pitch of 1 mm The programmer comes with a basic set of 9 cables: with a pitch of 0.5 mm (for 30 and 32 pins), with a pitch of 0.8 mm (for 26 and 30 pins), with a pitch of 1 mm (for 24, 26, 28, 30, 32 pins) Please note the order time for programmer is 6 weeks and it needs to be ordered on pre basis
