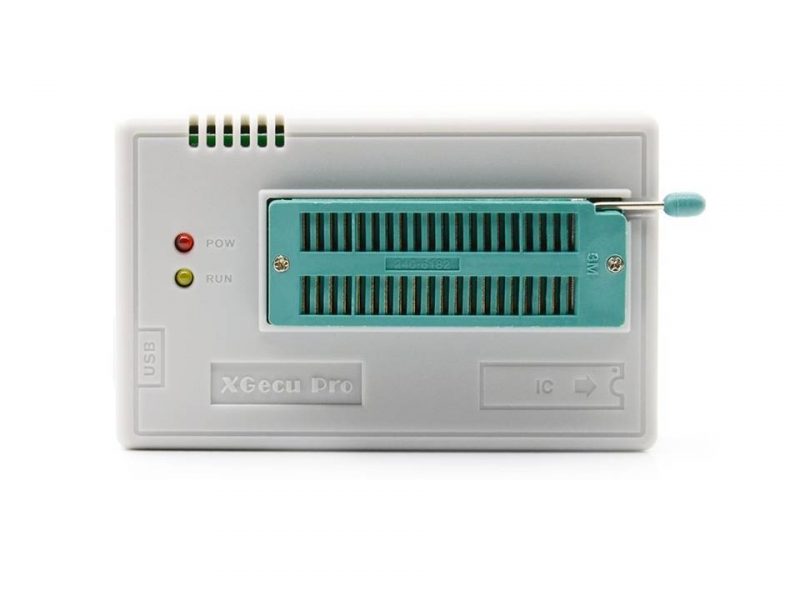

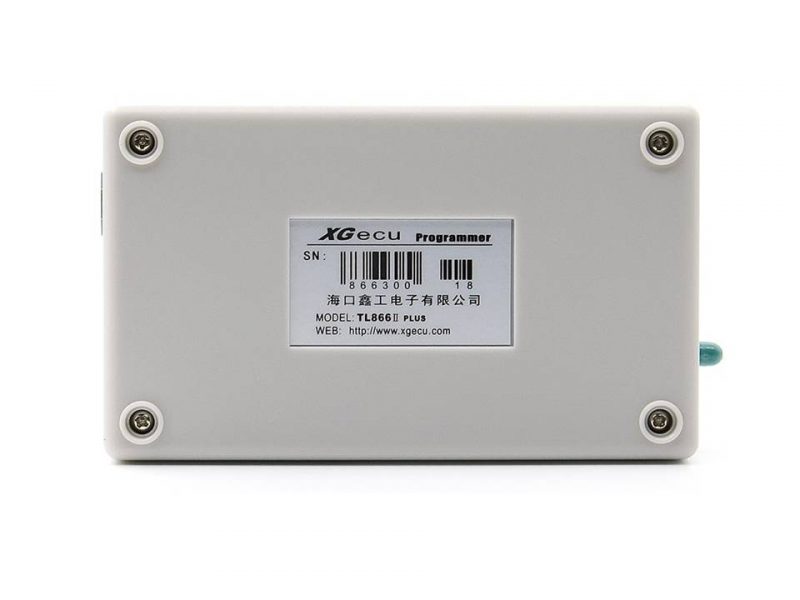

TL866II Plus EEPROM Bios Programmer

Description

TL866II Plus USB Programmer is Support 15000+IC SPI Flash NAND EEPROM 8051 MCU PIC AVR GAL.TL866II PLUS programmer is the Advance version of TL866CS and TL866A programmer. The programming speed is much higher (Up to Double) of high capacity memories as compare to TL866CS and TL866A programmer. It supports multi programming mode (up to four).IT is Well-designed cheap professional programmer, Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small code -runs faster, supports bilingual (English and Chinese), it can automatically identify the operating system to install and run under WIN 2000/WIN XP/WIN 2003/WIN 2008/WIN VISTA /WIN7/WIN8/WIN10 (32BIit/64Bit).

FEATURES

Support simultaneously burn with 4 Programmers each computer, The Minimum Volume and the lowest Power Consumption and do not feel any Heat in Process. All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power. Best internal 40 pin over voltage protection, the strongest VCC/VPP 4-level over current protection. The short circuit does not reset the PC. Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH. Unique serial ICSP interface, supporting the serial download and high-speed parallel high voltage programming, Test CMOS4000 74/54 series integrated circuit, Can be located in the gate circuit error, Chip auto serial number is the most complete and practical. Original chip encryption operation on AVR microcontroller with internal RC Calibration byte, The Decrypt software cannot be directly run on another same type of chip.

SUPPORTED CHIPS

15000+ supported devices

NAND FLASH Samsung K9xxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Micron MT29Fxxx, NANDxxx, Spansion S34xxx, NAND Toshiba TH58NVGxxx.Serial NAND FLASH Micron MT29Fxxx.
Serial Flash standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Fxxx, 25Lxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX26Lxxx ).Data Flash (AT45Dxxx, AT26Dxxx).
Parallel NOR Flash 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung’s K8Pxxxx, K8Dxxxx series.
EPROM NMOS/CMOS, 27xxx and 27Cxxx series.
EEPROM NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series.
Serial E(E)PROM 24XXX,25XXX series.
Microcontrollers MCS51 series 89Cxxx, 89Sxxx, 89EXXX, 89VXX.
Microcontrollers Atmel AVR 8bit/16bit AT90Sxxxx, ATtiny, ATmega series.
Microcontrollers Microchip PICmicro PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx.
PIC18xxx, PIC24xxx series.
GAL Programmable logic device programming and SRAM test.
I.C. Tester TTL type 54, 74 S/LS/ALS/H/HC/HCT series; CMOS type 4000, 4500 Series.
Static RAM 6116…

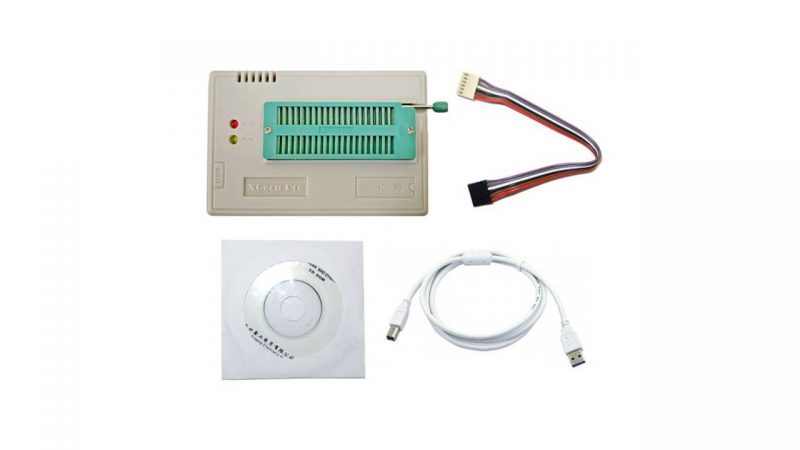

PACKAGE INCLUDES

1.TL866II Plus Programmer
2.USB Cable
3.Cable
