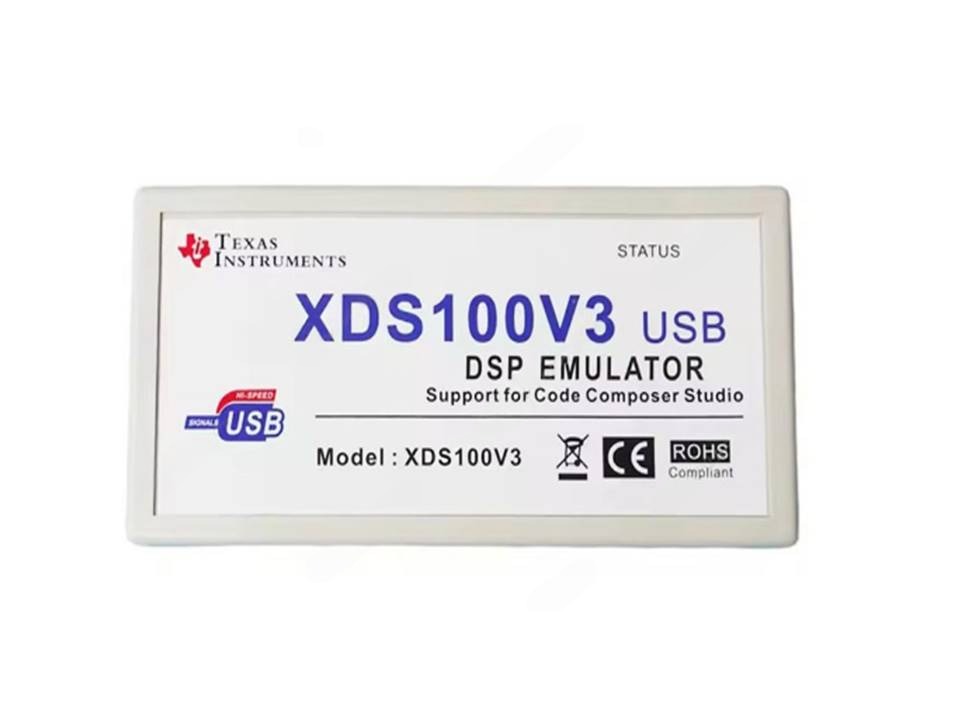

Texas XDS100-V3 DSP Emulator DSP/ARM Core Support TI DSP CCS5-CCS10

XDS100V3 emulator TI DSP JTAG Debugger Programmer for TMS320 TI CCS ARM9 Cortex-A8
download line USB2.0 support ccs5/6/7/10/12
Official function,  Stable &Fast
Size 110 x 54 x 25mm
Product features
1. Supports USB2.0 full speed interface, with a theoretical value of 480Mb/S.

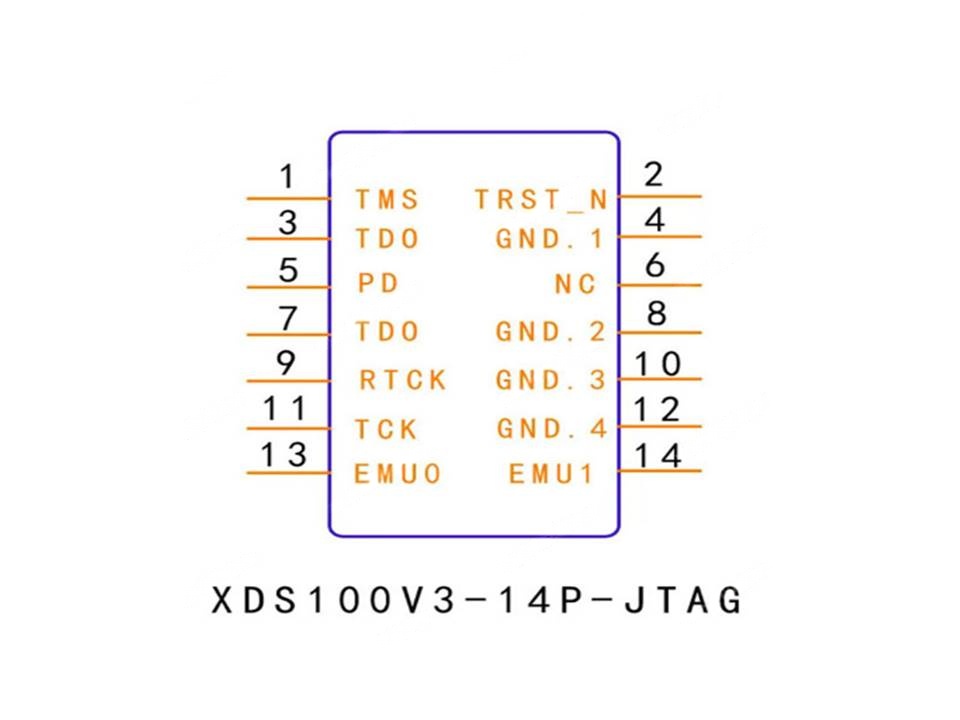

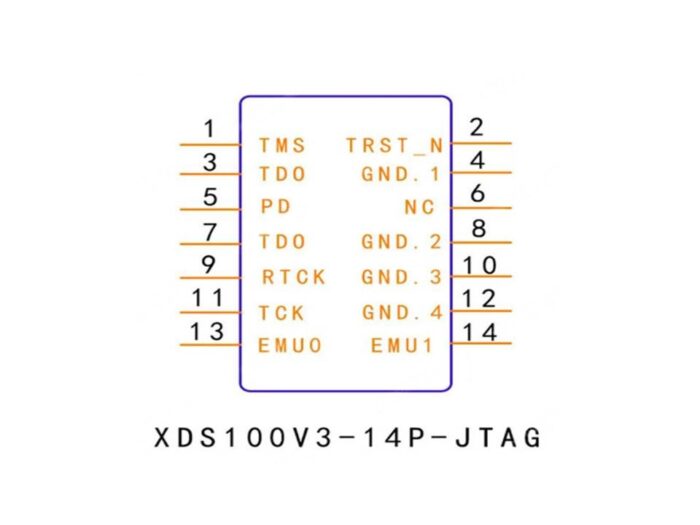

2. Output port 14P standard JTAG interface.
3. Supports standard simulated voltage of 3.3V and official software.
4. Supports all models supported by official CCS and supports IAR for ARM

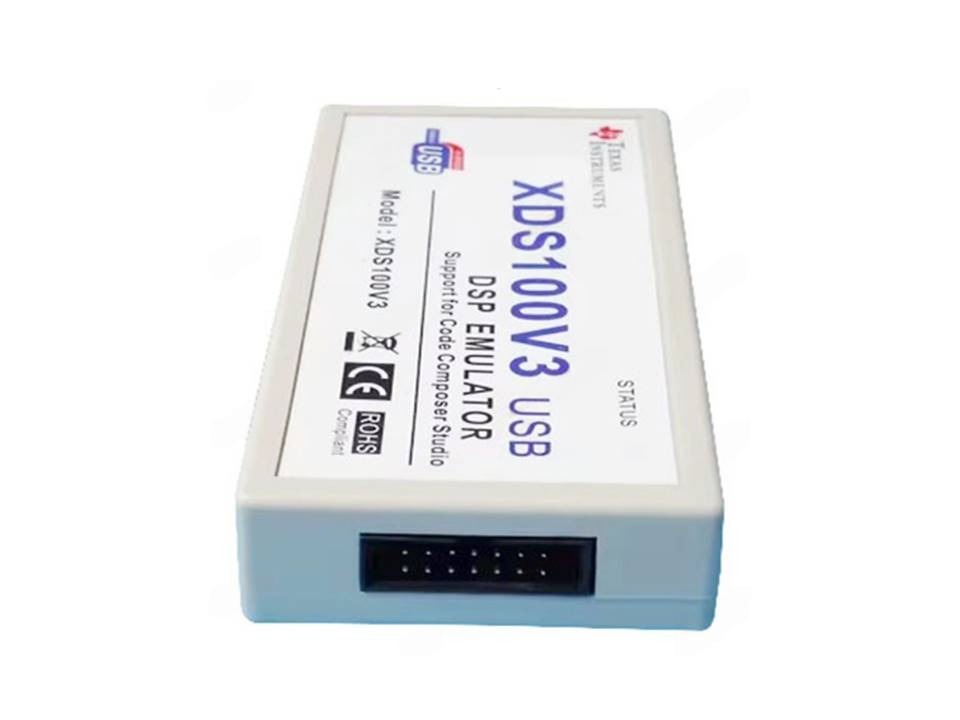

5. The JTAG interface adopts an anti insertion reverse horn socket and cable arrangement.
6. Input self recovery fuse protection, output port electrostatic protection, and output isolation protection.
Unique features
1. XDS100V3 operates on dual chips internally, and the FPGA logic array operates at high speed with a main frequency of 100MHz.
2. V3 supports CCS version 5.2 and above, with original functional design and support for future CCS version upgrades.
3. Support third-party software such as Flash Programmer, UniFlash, SmartRF Studio, etc.
4. Support operating systems such as XP/WIN7/WIN10/WIN11/LINUX.
5. Hardware does not require drivers, software automatically recognizes simulators.
6. Supports cJTAG two wire interface.
XDS100V3 support
TMS320C28XX/T320C54XX/TMS320C55XX/TMS320C674X/TMS320C64X+/TMS320C66X/TMS320C674X/ARM CORTEX M0/M3/3M4/A8/A9/A5/R4/R5/TMS470LSXX/TMS570LSXX/Davinci/Sitara ARM Cotex-A Zigbee CC26XX（CC2652/2650/2642/2640/2630/CC1310/1350/CC2538）

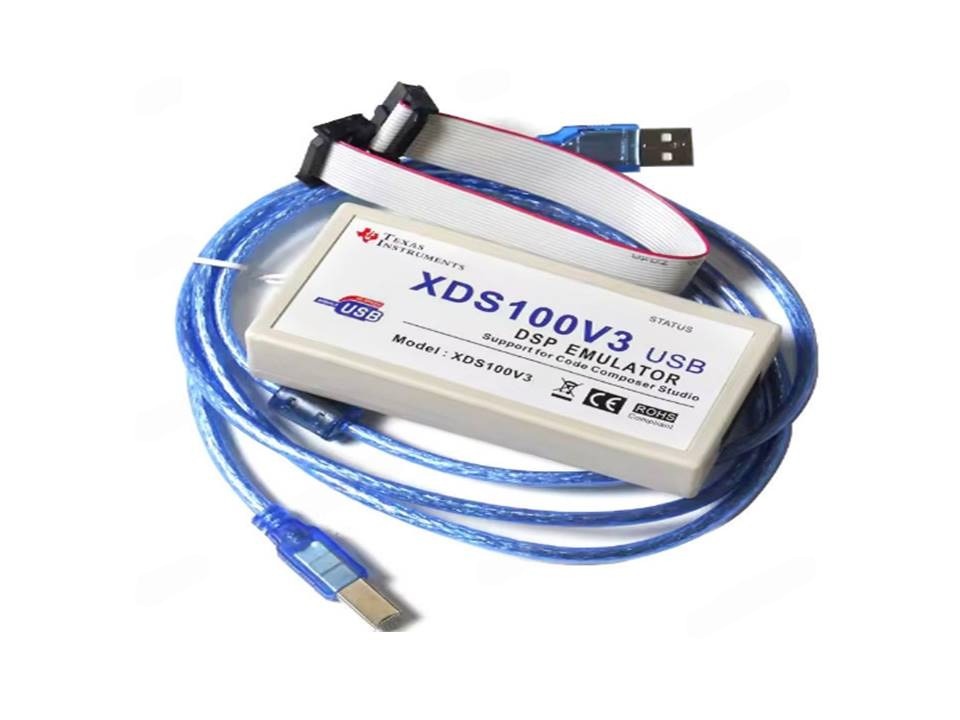

Shipping list
1. One XDS100v3 simulator.
2. Blue high-quality data cable.
3.14P gray ribbon cable.
