1.1 Performance Introduction
Carefully built low-cost professional programmer, high-density chip production process, a
unified user interface, easy to use, functional integrity, application software, reliable
operation, code small, faster execution. supported operating system:
WINXP WIN2003 WIN2008 VISTA WIN7 WIN8 WIN10 32-bit or 64-bit operating system
? A wide range of chip support, the initial version supports the chip 15000+, supports a variety of 24 25 26 27 28 29 37 39 49 50 series of serial and parallel memory chips, microcontroller 51 series, ATMEL AVR ATMEGA AT90 series, MICROCHIP PIC10 PIC12 PIC16 PIC18 series microcontroller , GAL programmable logic device programming, SRAM test, 54/74 and CMOS4000 integrated circuit integrated functional test.
Support NAND Flash chip, the function is complete and comprehensive, the capacity supports to 8Gbits.
25 series Nor Flash capacity support to 512Mbits.
? Universal serial programming interface ICSP (to support both high-voltage parallel programming and low-volt age serial programming). Note: ICSP now supports 24-Series 25 Series 93 Series Serial Integrated Circuits, ATMEL89S51,52, AVR ATMEGAxxx Full
Series, and MICROCHIP PIC10Fxxx 12Fxxx 16Fxxx 18Fxxx Full Series, and the new series of SYNCMOS SM59Dxx SM59Rxx fu ll range chips for in-circuit serial programming.
? Powerful 54 / 74F / LS / HC CMOS4000 Series Integrated Functionality Tests: The First Development Programmer to Test Common Logic ICs True, Test Errors Locating Logic Gate Circuits, Test Arbitrary Possible input combinations.
1.2 Programmer chip support range
? Variety of 26 27 28 29 37 39 49 50 series of parallel ROM, EPROM, EEPROM
Fast, full support. Support TSOP32 TSOP40 TSOP48 chips to 64MBits, will join the TSOP56 pin support.
(TL866II programming voltage VPP only supports up to 18V, for early 27C series ROM, the
chip with 21V 25V VPP voltage no longer supports writing, but can be read. If it is used,
the VPP with the same type of programming voltage can be used as 13V or 12V chip replacement, for example: 27C32 21V or 13V Vpp chip,Pay attention to the VPP voltage)
? 24 25 35 45 85 93 95 Series Serial EEPROM
Serial Series Chip Support Full, Supports Chip Capacity 25 Series 8 or 16PIN to 512MBits (64M Bytes)
? NAND FLASH chip supports up to 8Gbits
? MCU series, hundreds of models of 51 series of microcomputer
? AVR microcontroller package scratch ATMEGA series ATtiny series AT90XXX series of microcontrollers, all AVR ATMEGAxxx chip also supports the ICSP interface for SPI serial download programming. Support AVR one-to-one soft-key with RC correction byte.
? MICROCHIP PIC10 PIC12 PIC16 PIC18 Series Microcontroller:
PIC series of more than 300 models, more than 900 package chip support, currently supports
one of the most complete PIC chip integrated programmer. For vario
us types of PIC monolithic, in strict accordance with the manufacturer’s manual requirements, the optimal programming, programming speed is excellent. The vast majority of chips support both ISCP online programming and programming through programming sockets.
? GAL programmable logic device programming
? SRAM test
Support for common 24 61 62 DS12 series SRAM test, respectively, to data line testing,
address line testing, memory unit incremental testing and unit testing.
? Super performance 54 / 74F / LS / HC CMO
S4000 series integrated circuit integrated
The first development-type programmer to really test common logic ICs to test for errors
that can be located to logic gates, and to test any possible combinations of inputs in an integrated circuit when testing.

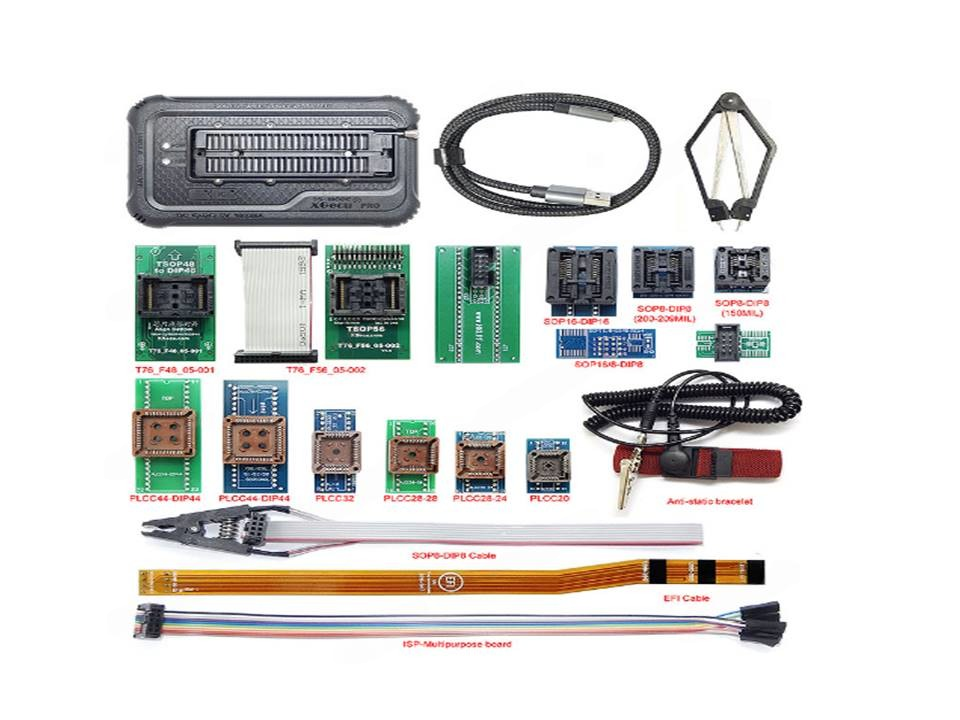

1 * XGecu T56 universal programmer.

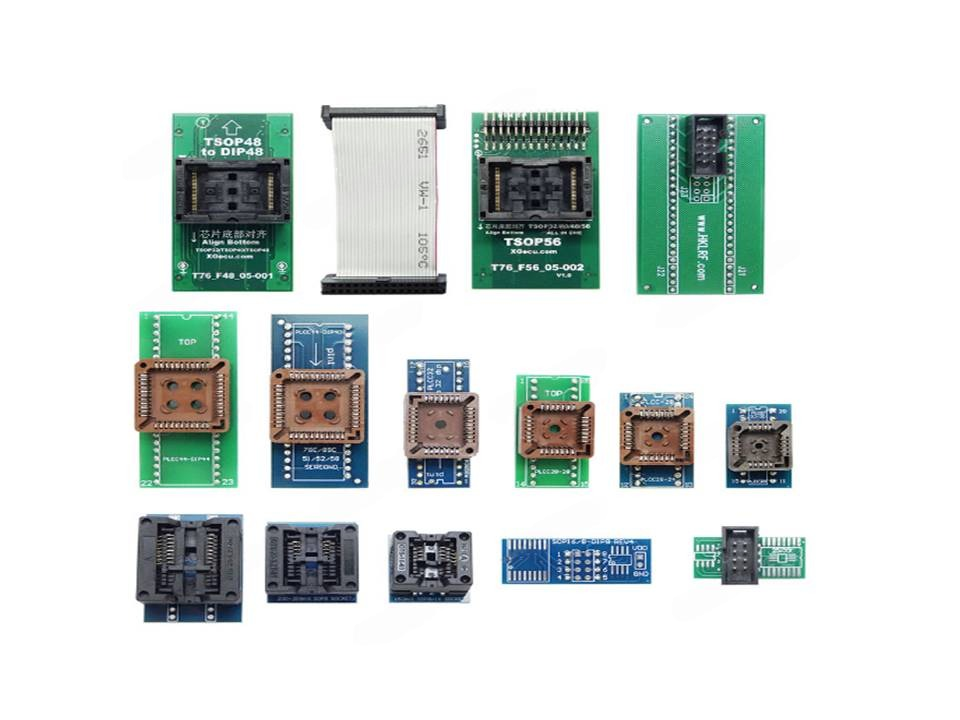

1 * BGA48 Adapter(LFBGA48, 8*6mm, spacing 0.8mm)
1 * BGA63 Adapter(11*9mm)
1 * XG-ADP-BGA64A-1.0 Adapter(11*13mm,10*13mm,10*15mm)
1 * BGA169 Adapter(11.5*13mm,11*10mm,12*16mm,14*18mm)
1 * TSOP56/48/40/32 Adapter
1 * ADP-SSO-056-0.8 Adapter
1 * LCD LED screen EDID Cable
