Description
Description:
With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer. Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, VPP Maximum up to 25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster, support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11.
XGecu T48 (TL866-3G) hardware Parameters:
* 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 HS 480MHZ
* Volume: 10X6.5X2.8 cm (almost the same as TL866II)
* 16 channel ISP
Total 56-channel dedicated IO
56-channel high-speed high-voltage isolation
* VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
* Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.
* Self-test function, self-test each pin of VPP/VCC/GND/IO
* Suitable for developers and maintenance personnel, can do small batch production for high capacity chips, support simultaneously working with 4 Programmers on each computer.
*Support operating Systems: Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11

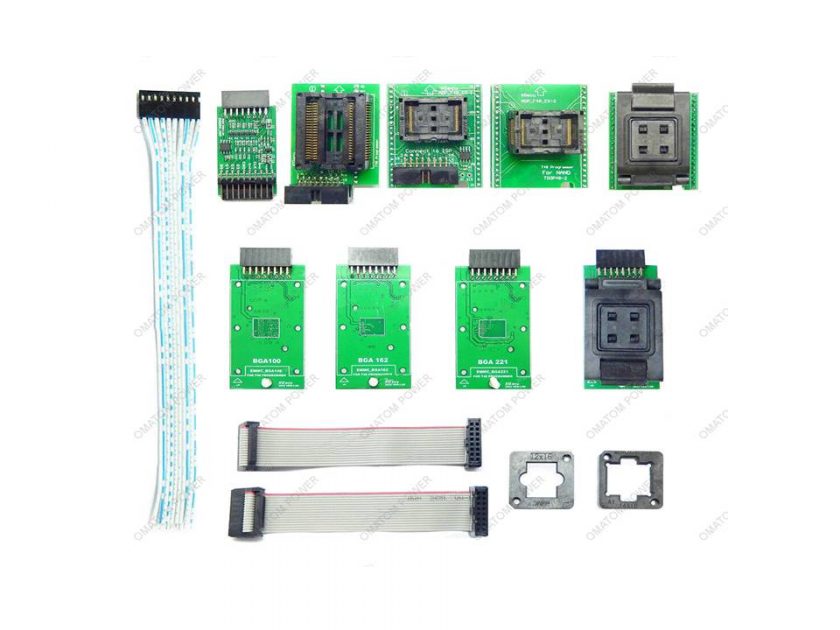

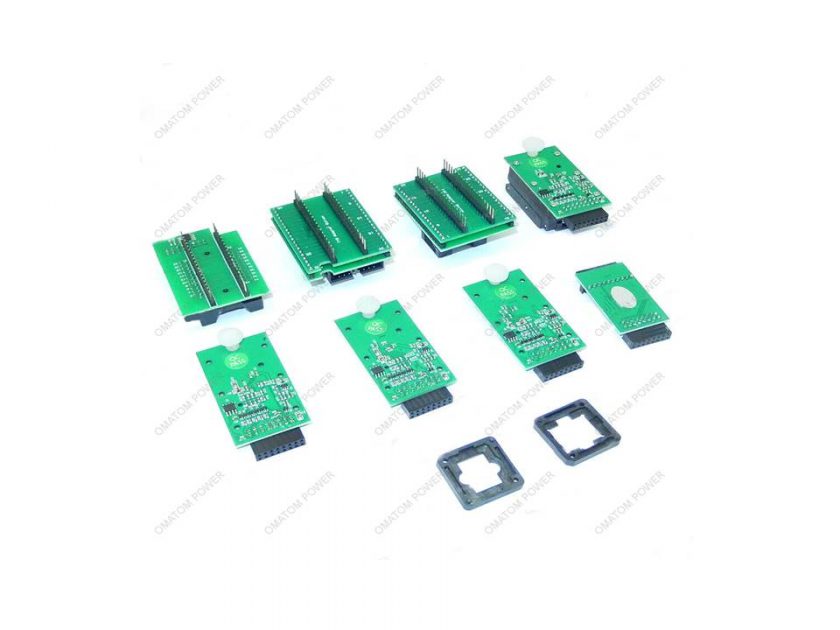

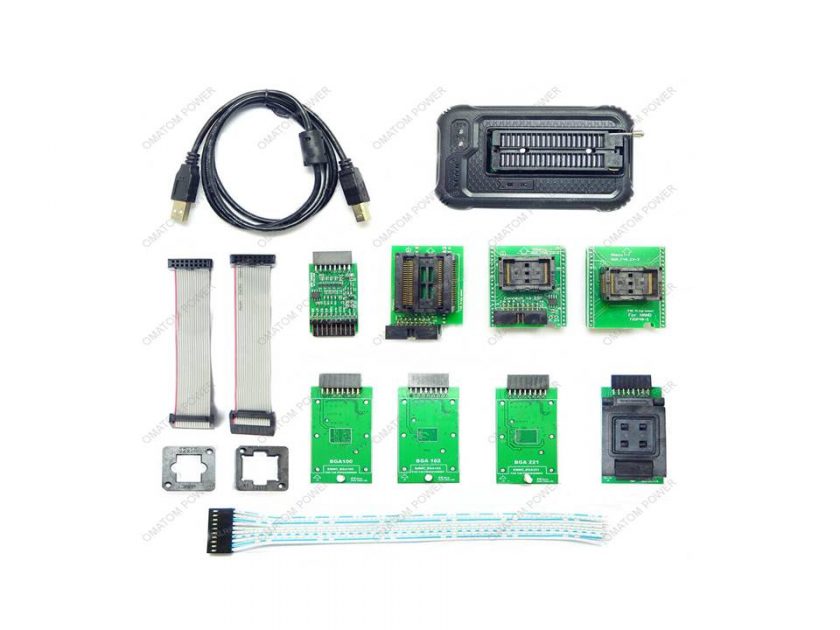

Package Include:
1. XGecu T48 Universal Programmer
2. SOP44 adapter ADP_S44_EX-1
3. TSOP48-1 Nor Flash adapter ADP_F48_EX-1
4. TSOP48-2 NAND adapter ADP_F48_EX-2
5. EMMC_ISP
6. ADP_BGA63_E001
7. 5in1-EMMC BGA100 BGA162 BGA153 BGA169 BGA221 Adapter
