Description
Description:-
PIC32MZ 32-bit MCU 200MHZ + Xilinx SP6 FPGA structure, USB2.0 HS 480MHZ transmission
Volume: 12.9cm x 8.5cm x 2.9cm
56-pins powerful pins drivers IO design. Maximum operating frequency of 50MHZ for all pins, extremely high reliability.
Stable and reliable 8P in-circuit programmable ISP interface with wire length of more than 40CM, reliable communication at 25-45MHZ.
The highest clock frequency can reach up to 40MHZ-50MHZ for 25 series/EMMC in-circuit programming.
VCC voltage 1.2-6.5V, 64 levels adjustable, VPP voltage 6.5-25V 64 levels adjustable.IO voltage 1.2V-3.6V continuously
adjustable. VCC 120MA-320MA multilevel over current protection continuously adjustable. VPP 120MA overcurrent
protection.
Power consumption: 5V <500MA. Static power consumption: 180mA , All chips do not need an external power supply.
Allow to use an external power supply 5V-5.5V 500MA.
The programmer has multiple protection for external power supply: over-voltage protection/reverse connection
protection/over-current protection/under-voltage prompt.
Maximum read-write speed can reach up to 25-45MB/s
Open self-test function, self-test on each pin of VPP/VCC/GND/IO
Suitable for developers and maintenance personnel, suitable for small batch production, support simultaneously working with 4 Programmers on each computer
26 27 28 29 37 39 49 50 series parallel ROM, EPROM, EEPROM, Paged EPROM, Flash Maximum capacity 2GBits.
24 25 35 45 85 93 95 Serial Series EEPROM, Support 25 FLASH chips: Maximum capacity 2GBits
Support NAND FLASH: Maximum capacity 256Gbits, NAND can be customized parameters to add new model chips.
Support SPI NAND: Maximum capacity 8Gbits
Support EMMC/EMCP: Maximum capacity 256GBits, EMMC/EMCP support one-button cloning, support ISP
programming
Microcontroller Series
GAL/CPLD programmable logic device programming
Support VGA tool and VGA ISP programming, Can output VGA/HDMI video test signal, read TV or monitor parameters,and ISP in-circuit programming
Super performance 54/74F/LS/HC CMOS4000 series integrated circuit logic test, Can test common logic integrated
circuit, result can be located to the logic gate circuit, customizable logic vector table, can add new chips to support list.
Support more packages of DIP42/PLCC44/SOP44/QFP44/TSOP48 on base of TL866
Support TSOP56/BGA48/BGA63/BGA64/BGA100/BGA153/BGA162/BGA169/BGA221 etc.
Support operating Systems: Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11

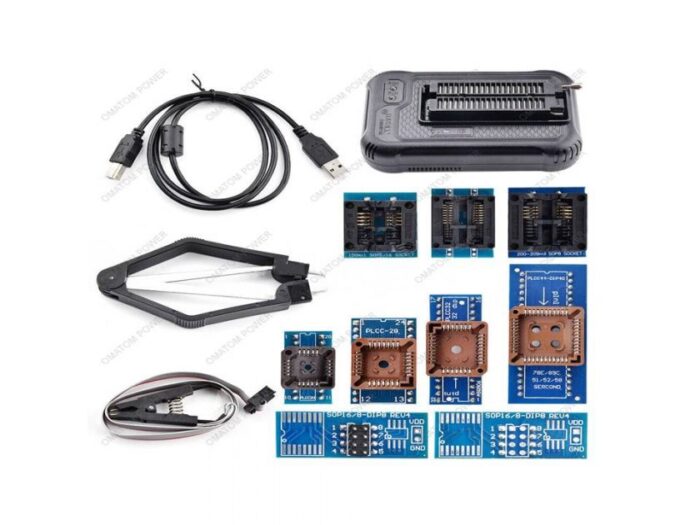

Package In clude:
1. XGecu T48 Programmer
2. 150mil SOP8–DIP8 Adapter
3. 200mil-208mil SOP8–DIP8 Adapter
4. SOP16–DIP16 Adapter
5 PLCC44–DIP40 Adapter
6. PLCC32–DIP32 Adapter
7. PLCC28–DIP24 Adapter
8. PLCC20–DIP20 Adapter
9. 8pin DIP SMD Adapter
10. PLCC IC Extractor
11.SOP 8/SOIC Clip
