SVOD4 Programmer With 3in1 Combine Adapter set

25830.00 {Inc. GST}

Support :- For Software Installation

GST Input Tax Credit is available

Dispatch Time 1 to 2 days

SKU: OMP-PR081 Category:

Description

Description:

With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer. Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, VPP Maximum up to 25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster, support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under Windows XP,2003,2008,Vista  Win7 WIN8 WIN10 WIN11.
XGecu T48 (TL866-3G)  hardware Parameters:
* 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 HS 480MHZ
* Volume: 10X6.5X2.8 cm (almost the same as TL866II)
* 16 channel ISP
   Total 56-channel dedicated IO
   56-channel high-speed high-voltage isolation
* VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable.
* Power consumption: 5V <500MA. Static power consumption: 60mA. Without external power supply interface.
* Self-test function, self-test each pin of VPP/VCC/GND/IO
* Suitable for developers and maintenance personnel, can do small batch production for high capacity chips, support simultaneously working with 4 Programmers on each computer.
*Support operating Systems: Windows XP,2003,2008,Vista  Win7 WIN8 WIN10 WIN11

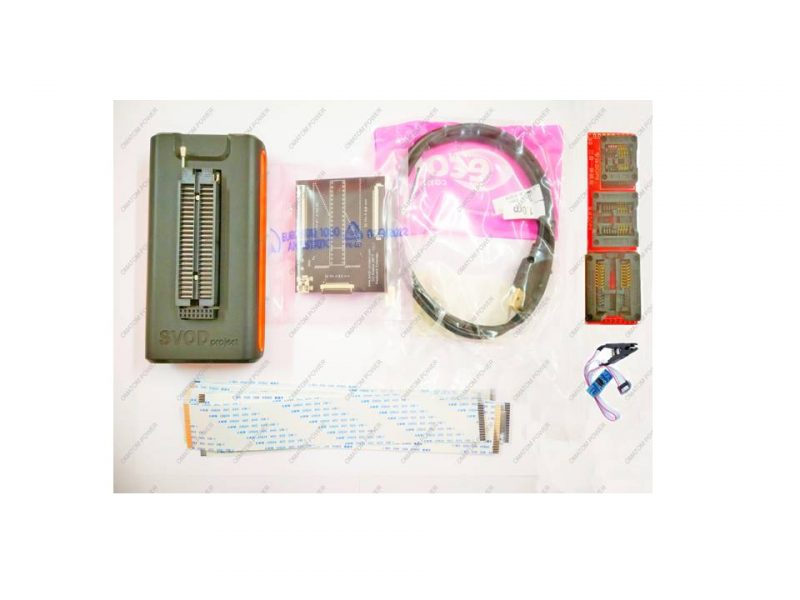

Package Includes:

In package included:

1 pcs Programmer SVOD Ver. 4

1 pcs USB Connection cable

1 pcs Extended board of ports for keyboard module

12pcs Flex cables: 34pin, 32pin, 30pin, 26pin

1 3 in 1 Base (150mil,200Mil,300Mil)

SVOD V4 programmer is a universal programmer for various microcircuits.

As you know you can program different kinds of chips such as: SPI, I2C, ONE WIRE, NAND, NAND SPI, NOR, EMMC, JTAG, UART, ENE, MEC, ITE, NUVOTON, parallel synchronous and asynchronous protocols. Automatic detection of “bad contact” when connecting chips.

Protocol: JEDEC ID (spi25 flash, Nand have 5 byte ID, spi NAND have 512 byte ID, nor48,40 have 3 byte id, emmc have 512 byte id, new spi25 have id with 128 byte info).

Specifications:

*SVOD 4 port of connection to the computer: usb 2.0- 3.0 high speed,

*SVOD 4 CPU: Processor ARM7, 480MHz

*SVOD 4 Voltage: 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.25V, 1.2V, 0.8V

*SVOD 4 GPIO PIN: 48+16

As you know you can program different kinds of chips such as: SPI, I2C, ONE WIRE, NAND, NAND SPI, NOR, EMMC BGA, JTAG, UART, ENE, MEC, ITE, NUVOTON, parallel synchronous and asynchronous protocols. Automatic detection of “bad contact” when connecting chips.

Supported:

KB9010,KB9012, KB9016, KB9018, KB9022, KB9028qc

NPCE288N/NPCE388N

ITE IT8380E PROGRAMMABLE

ITE IT8380VG PROGRAMMABLE

ITE IT8386 PROGRAMMABLE

ITE IT8522 PROGRAMMABLE

ITE IT8580 PROGRAMMABLE

ITE IT8585E PROGRAMMABLE

ITE IT8586E PROGRAMMABLE

ITE IT8586VG PROGRAMMABLE

ITE IT8587E PROGRAMMABLE

ITE IT8589 PROGRAMMABLE

ITE IT8886H PROGRAMMABLE

ITE IT8886HE PROGRAMMABLE

ITE IT8985E PROGRAMMABLE

ITE IT8987E PROGRAMMABLE

ITE IT8995E PROGRAMMABLE

NUVOTON NPCE288NA0DX PROGRAMMABLE

NUVOTON NPCE388NA0DX PROGRAMMABLE

MEC1404-NU 128-VTQFP PROGRAMMABLE 128 KB

SMSC MEC1404-SZ 144-WFBGA PROGRAMMABLE 128 KB

SMSC MEC1406-NU 128-VTQFP PROGRAMMABLE 160 KB

SMSC MEC1406-SZ 144-WFBGA PROGRAMMABLE 160 KB

SMSC MEC1408-NU 128-VTQFP PROGRAMMABLE 192 KB

SMSC MEC1408-SZ 144-WFBGA PROGRAMMABLE 192 KB

SMSC MEC1414-NU 128-VTQFP PROGRAMMABLE 128 KB

SMSC MEC1414-SZ 144-WFBGA PROGRAMMABLE 128 KB

SMSC MEC1416-NU 128-VTQFP PROGRAMMABLE 160 KB

SMSC MEC1416-SZ 144-WFBGA PROGRAMMABLE 160 KB

SMSC MEC1418-NU 128-VTQFP PROGRAMMABLE 192 KB

SMSC MEC1418-SZ 144-WFBGA PROGRAMMABLE 192 KB

SMSC MEC1609 PROGRAMMABLE

SMSC MEC1619 PROGRAMMABLE

SMSC MEC1632 PROGRAMMABLE

SMSC MEC1633 PROGRAMMABLE

SMSC MEC1641 PROGRAMMABLE

SMSC MEC1650 PROGRAMMABLE

SMSC MEC1651 PROGRAMMABLE

SMSC MEC1653 PROGRAMMABLE

SMSC MEC5035 PROGRAMMABLE

SMSC MEC5045 PROGRAMMABLE

SMSC MEC5055 PROGRAMMABLE

SMSC MEC5075 PROGRAMMABLE

SMSC MEC1609 PROGRAMMABLE

SMSC MEC1609I PROGRAMMABLE

SMSC MEC1633L PROGRAMMABLE

EPF011/021/035/036/037

SMSC MEC5085 NON-PROGRAMMABLE

The mode of displaying POST codes of the laptop motherboard is implemented. Choose the software in the online base of your motherboard, download, select it in the choice of motherboard, connect the motherboard with a loop to the keyboard connector, and read the post codes by running the software in read mode of POST codes.

MANY FLASHING FILES IN DATABASE FOR FREE

Additional information

Weight 500 g
