Description

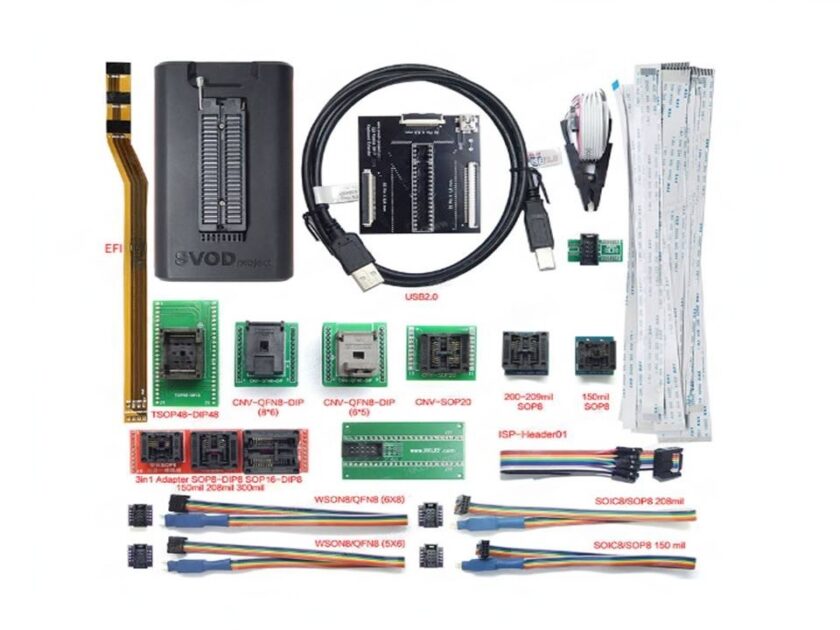

| Specifications: – port for connecting to a computer: usb 2.0 high speed, – high-speed ARM7 processor at 480MHz, – connection to IC: zif 48 + 16 pin connector – number of input-output ports: 56 – supply voltage: 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.25v, 1.2V, 0.8V. – work with EC ITE, ENE, NUVOTON, MEC, EPFxxx Supported protocols: SPI, I2C, SMBUS, 1-Wire, NAND, NOR, EMMC, JTAG, UART, CAN, parallel synchronous and asynchronous protocols. Automatic detection of “bad contact” when connecting IC. SPI ROM cable – Comptible Macbook’s list until 2017 year if you use SVOD programmer: A1534 emc 2746 820-00045, A1534 emc 2991 820-00244, A1534 emc 3099 820-00687, A1370 emc 2393 820-2796, A1370 EMCXXXX 820-2955, A1370 EMCXXXX 820-2955, A1370 820-2855-A, A1465 emc 2558 820-3208, A1465 emc 2631 820-3435, A1465 emc 2924 820-00164, A1304 EMCXXXX 820-2375, A1304 EMCXXXX 820-2375, A1369 emc 2469 820-3023, A1466 emc 259 820-32509, A1466 emc 2632 820-3437, A1466 emc 2925 820-00165, A1466 emc 3178 820-00165, A1425 emc 2512 820-3462, A1502 emc 2678 820-3536, A1502 emc 2678 820-3476, A1502 emc 2875 820-3476, A1502 emc 2835 820-4924, A1398 emc 2512 820-3332, A1398 emc 2673 820-3332, A1398 emc 2746 820-3662, A1398 emc 2876 820-3662, A1398 emc 2745 820-3787, A1398 emc 2881 820-3787, A1398 emc 2909 820-00138, A1398 emc 2910 820-00163, A1398 emc 2910 820-00426, A1708 EMCXXXX 820-00361, A1708 emc 2978 820-00875, A1708 emc 3164 820-00840, A1706 emc 3071 820-00239, A1706 emc 3163 820-00923, A1707 emc 3072 820-00281, A1707 emc 3162 820-00928, A1283 emc 2264 820-2366,A1283 emc 2336 820-XXXX, A1347 emc 2364 820-2577, A1347 emc 2442 820-2993, A1347 emc 2442 820-3059, A1347 emc 2442 820-3017, A1347 emc 2570 820-3227, A1347 emc XXXX 820-3228, A1347 emc 2840 820-5509 Supported: KB9010,KB9012, KB9016, KB9018, KB9022, KB9028qc NPCE288N/NPCE388N ITE it8380E programmable ITE it8380VG programmable ITE it8386 programmable ITE it8522 programmable ITE it8580 programmable ITE it8585e programmable ITE it8586e programmable ITE it8586VG programmable ITE it8587e programmable ITE it8589 programmable ITE it8886H programmable ITE it8886he programmable ITE it8985e programmable ITE it8987e programmable ITE it8995E programmable Nuvoton npce288na0dx programmable Nuvoton npce388na0dx programmable SMSC MEC1404-NU 128-VTQFP SMSC MEC1404-SZ 144-WFBGA SMSC MEC1406-NU 128-VTQFP SMSC MEC1406-SZ 144-WFBGA SMSC MEC1408-NU 128-VTQFP SMSC MEC1408-SZ 144-WFBGA SMSC MEC1414-NU 128-VTQFP SMSC MEC1414-SZ 144-WFBGA SMSC MEC1416-NU 128-VTQFP SMSC MEC1416-SZ 144-WFBGA SMSC MEC1418-NU 128-VTQFP SMSC MEC1418-SZ 144-WFBGA SMSC MEC1609 programmable SMSC MEC1619 programmable SMSC MEC1632 programmable SMSC MEC1633 programmable SMSC MEC1641 programmable SMSC MEC1650 programmable SMSC MEC1651 programmable SMSC MEC1653 programmable SMSC MEC5035 programmable SMSC MEC5045 programmable SMSC MEC5055 programmable SMSC MEC5075 programmable SMSC MEC1609 programmable SMSC MEC1609i programmable SMSC MEC1633L programmable EPF011/021/035/036/037 SMSC MEC5085 non-programmable Protocol: JEDEC ID (spi25 flash, nand have 5 byte ID, spi NAND have 512 byte ID, nor48,40 have 3 byte id, emmc have 512 byte id, new spi25 have sfdp with 128 byte info). The mode of displaying POST codes of the laptop motherboard is implemented. Choose the software in the online base of your motherboard, download, select it in the choice of motherboard, connect the motherboard with a loop to the keyboard connector, and read the post codes by running the software in read mode of POST codes. Package Includes: 1pcs Programmer SVOD Ver.4 1pcs USB Connection cable 1pcs Extended board of ports for keyboard module 1pcs TSOP48-DIP48 Adapter 1pcs DFN8 QFN8-DIP8(8*6) CNV-QFN8-DIP Adapter 1pcs DFN8 QFN8-DIP8(6*5) CNV-QFN8-DIP Adapter 1pcs Double SOP8-DIP8 Adapter (SOP16-DIP20) OTS-20-1.27-01 (200mil) 1pcs 3in1 Adapter SOP8-DIP8 SOP16-DIP8 150mil 208mil 300mil 1pcs ISP-adapter 10pin ISP-Header01 Adapter 1pcs DFN8 QFN8 to DIP8 Probe 8*6mm 1pcs DFN8 QFN8 to DIP8 Probe 6*5mm 1pcs SOP8-DIP8 Probe (200mil) 1pcs SOP8-DIP8 Probe (150mil) 1pcs SOP8-DIP8 Adapter (200mil) 1pcs SOP8-DIP8 Adapter (150mil) 1pcs SOIC8 SOP8-DIP8 Cable ZIF Clip 1pcs SPI ROM EFI Ribbon Cable (Hirose12 Hirose30 Molex30 connector) Flex cables: 34pin, 32pin, 30pin, 26pin (all cables what you see in picture). |
