Description
DESCRIPTION
SuperPro 6100N is a cost-effective, reliable, and high-speed universal chip programmer. It is designed to communicate using USB 2.0 port for development requirement and can also work in standalone mode (without connecting to a PC) for production requirement. It has the largest device support count in the programming industry with 144 pin drivers to support high pin count chips.
Application and target customers: Programming houses, electronic repair, car repair shops, forensic and data recovery companies, medical devices, requirement for larger device support.
ADVANTAGES
Ultra Fast Programming Speed SuperPro 6100N is designed with high programming speed in mind. Our semiconductor manufacturer approved algorithms, precision and clean signals guarantee high programming yield. Tester for Logic Devices and SRAMs In addition to having a large device library, SuperPro 6100N programmer is also designed for IC testing of various devices such as TTL, CMOS Logic (74/4000 series), and SRAM memory devices.
HARDWARE AND ELECTRICAL SPECIFICATIONS
Devices supported:-EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU.
Package types supported:-DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, ?BGA, CSP, SCSP, QFN, HVQFN etc.
PC interface:-USB 2.0,Stand-alone memory, Compact FLASH Card, Power supply, AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A,Dimensions,Main unit: 148(L) x 216(W) x 94(H) mm, Package: 301(L) x 252(W) x 145(H) mm, Weight
Main unit: Weight 3.5 lbs (1.6 Kg),Package: Weight 6.2 lbs (2.8Kg)
Expanded Features
Operate multiple units to construct a concurrent multi-programming system. Cluster 1-15 units for Flexible volume production, Support devices with Vcc from 1.2V – 5V.,Support files up to 256 GB, Over-current and over-voltage protection for safety of the chip and programmer hardware Only IC manufacturer approved programming algorithms used for high reliability. Vcc verification (at +5% ~ -5% and +10% ~ -10%) enhances programming reliability.

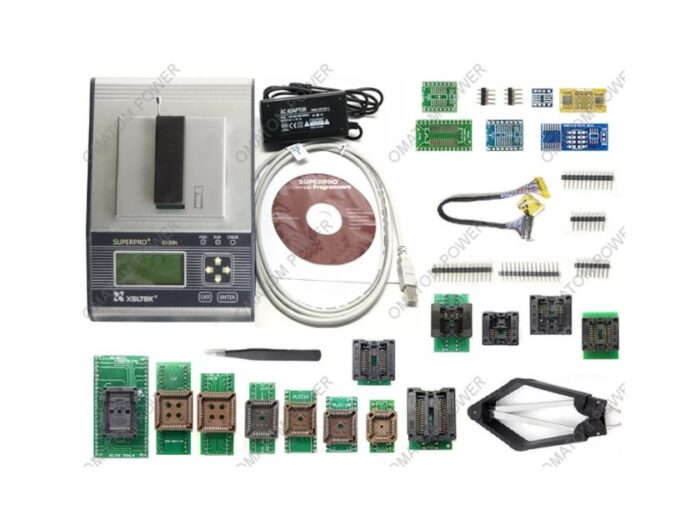

Accessories:
XELTEK SuperPro 6100N Programmer
AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A
USB Cable
CD Software
TSOP48 Adapter
PLCC44-DIP44
PLCC44-DIP40
PLCC32-DIP32
PLCC28-DIP28
PLCC28-DIP24
PLCC20-DIP20
SOP28-DIP28 (300mil) adapter
SOP20-DIP20 (200mil) adapter
SOP8-DIP8 (200mil) adapter
SOP16-DIP16 (150mil) adapter
SOP8-DIP8 (150mil) adapter
TSSOP8-DIP8 (170mil) Adaptor
SOP8-DIP8 Simple Adaptor
QFN8 WSON8 Simple Adaptor
SOP16/8-DIP8 REV4 Simple Adaptor
MSOP8/SSOP8/SOP8/SOP16-DIP16 Simple Adaptor
SSOP4-28PIN 0.65mm / SOP4-28PIN 1.27mm Simple Adaptor
LCD LED screen EDID code
SOP8 Clamp Test
IC Chip Extractor
