SP20F SFLY High Speed Programmer

15750.00 {Inc. GST}

GST Input Tax Credit is available

Dispatch Time 15 To 20 Days

SKU: OMP-PR057 Category:


SP20 series (SP20B/SP20F/ SP20X/SP20P) programmers are the latest highspeed mass production programmers for SPI FLASH launched by Shenzhen SFLY Technology. It fully supports the high-speed programming of SPI NOR / NAND FLASH, I2C / MicroWire and other EEPROMs from domestic and foreign manufacturers.

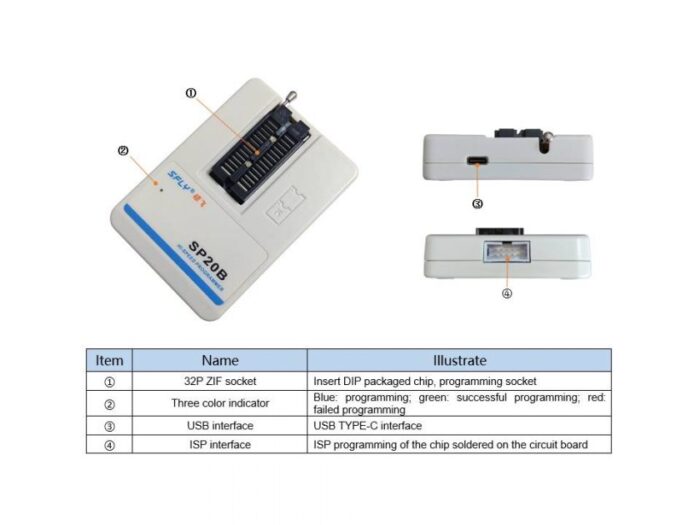

Hardware features

? USB TYPE-C communication interface, no need for external power supply when used in USB mode;
? Support USB and standalone mode high-speed mass production programming;
? The built-in large-capacity memory chip saves the engineering data for standalone programming, and multiple CRC data verification ensures that the programming data is absolutely accurate;
? Replaceable 28-pin ZIF socket, which can be supported by conventional universal programming bases;
? RGB three-color LED indicates the working status, and the buzzer can prompt the success and failure of the programming;
? Support poor pin contact detection, effectively improve programming reliability;
? Support ISP mode programming, which can support on-board programming of some chips;
? intelligent detection chip placement and removal, automatic startup programming;
? Short circuit / overcurrent protection function can effectively protect the programmer or chip from accidental damage;
? Programmable voltage design, adjustable range from 1.7V to 5.0V, can support 1.8V/2.5V/3V/3.3V/5V chips;
? Provide equipment self-check function;

  • Small size (size: 108x76x21mm), simultaneous programming of multiple machines only takes up a very small work surface;

Software features

? Support Win7/Win8/Win10/Win11;
? Support software upgrade to add new devices;
? Support project file management (project file saves all programming parameters, including: chip model, data file, programming settings, etc.);
? Supports project file lock and read-only attributes to prevent operators from setting programming parameters by mistake;
? Support multi-computer connection: one computer can be connected with 8 SP20 series programmers for simultaneous programming;
? Support the reading and writing of additional storage area (OTP area) and configuration area (status register, etc.) of the chip;
? Support some SFDP content reading of SPI FLASH;
? Automatic serial number function (can be used to generate product unique serial number, MAC address, Bluetooth ID, etc., support automatic increment and file mode);

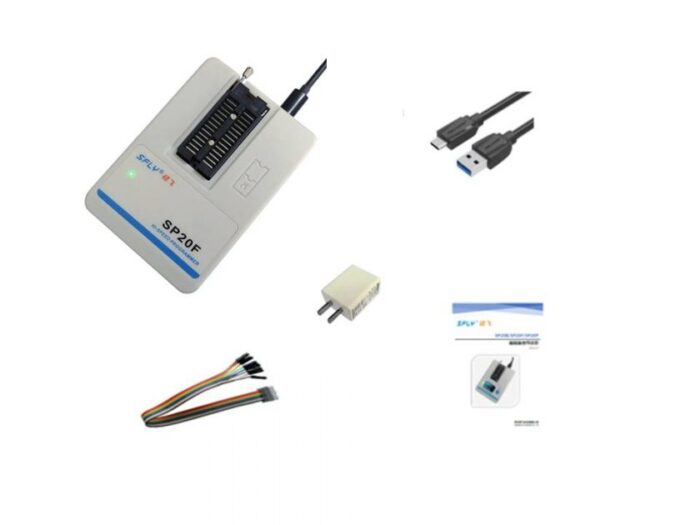

Packing list

SP20F High-speed Programmer
C-Type Data Cable
ISP Cable
5V/1A Power Adapter
Instruction Manual

Additional information

Weight 250 g
