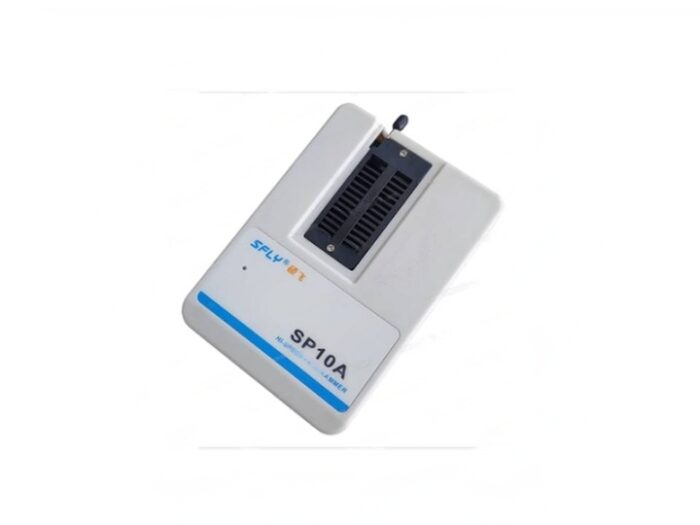

SFLY SP10-A EEPOROM Serial EEPROM / Flash Pro Programmer

Description

Performance Characteristics
Hardware features
 USB Type-C communication interface, no need for external power supply when used in USB mode;
 Support USB mode mass-production programming: automatically detects the chip insert and remove,and
automatically starts programming; (Note: SP10A does not have this function)
 Support standalone programming: no need to connect to a computer when programming, built-in large-size
memory saves the project data, multiple CRC data validation ensures that the programming data is absolutely
accurate; (Note: only SP10F has this function)
 28-pin ZIF socket, universal programming sockets are supported;
 RGB three-color LED indicates the working status, the SP10F can also indicate the success and failure via a
buzzer;
 Support poor pin contact detection, effectively improve programming reliability;
 Short circuit / overcurrent protection function can effectively protect the programmer or chip from accidental
damage;
 Programmable voltage design, adjustable range from 3.3V to 5.0V, can support 3.3V-5V chips;
 Provide equipment self-check function;
 Small size (size: 108x76x21mm), simultaneous programming of multiple machines only takes up a very small
work surface;
Software features
 Support Win7/Win8/Win10/Win11;
 Support switching between Chinese and English;
 Support software upgrade to add new devices;
 Support project file management (project file saves all programming parameters, including: chip model, data
file, programming settings, etc.);
 Support the reading and writing of additional storage area (OTP area) and configuration area (status register,
etc.) of the chip;
 Support automatic recognition of 25 series SPI FLASH;
 Automatic serial number function (can be used to generate product unique serial number, MAC address,
Bluetooth ID, etc.,);

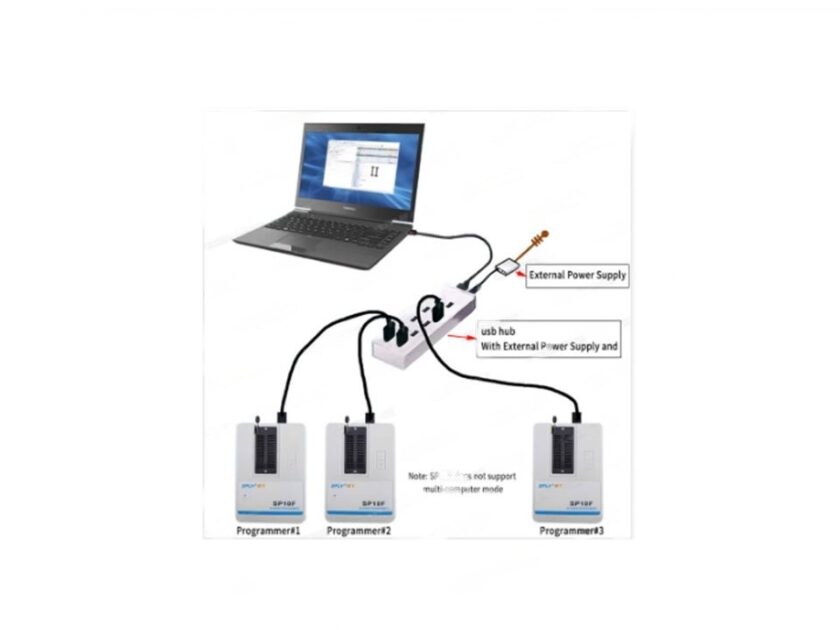

 Support multi-programmer mode connection: one computer can be connected with 8 SP10B/SP10F
programmers for simultaneous programming,The automatic serial number function is active in multiprogrammer mode; (Note: SP10A does not have this function)
 support 8 SP10F to download standalone data at the same time;
 Support log file saving
