OBDSTAR X300 DP Plus X300 PAD2 8inch Tablet Full C Package

Description

CONFIGURATIONS

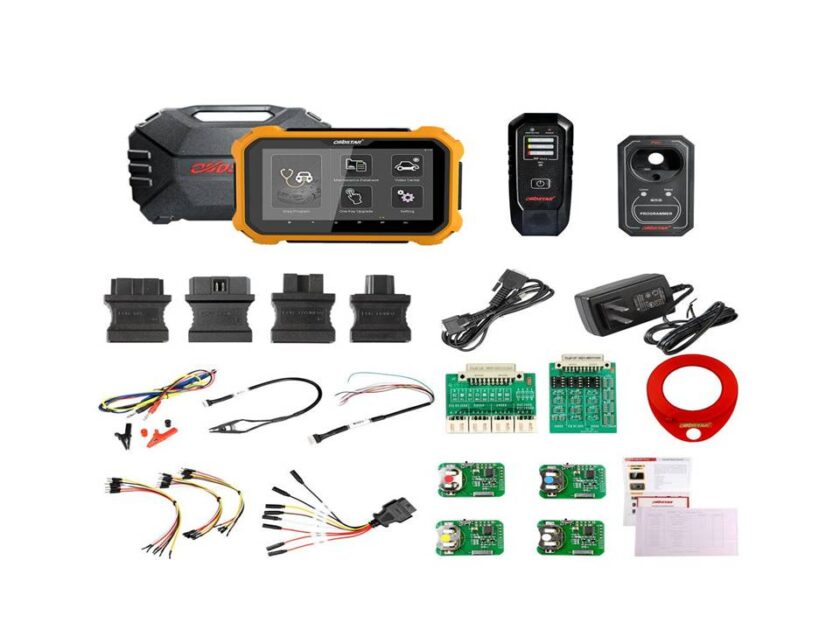

A Package:
Immobilizer+Special function(EEPROM+Key Renewing)Adapter(P001 programmer+C001circuit board+C002 circuit board+W001 cable+W002 data cable+W003 data cable+Toyota smart key Emulator)+others(Ignition coil+Remote tester)
B Package (Calibration with instrument mileage):
Immobilizer+Special function(EEPROM+Key Renewing)+Mileage correction+Adapter(P001 programmer+C001 circuit board+C002  circuit board+W001 data cable+W002 data cable+W003 data cable+Tota smarkt key Emulator)+others(Ignition coil+Remote tester)
C Package  (With meter mileage correction + maintenance to match special functions):

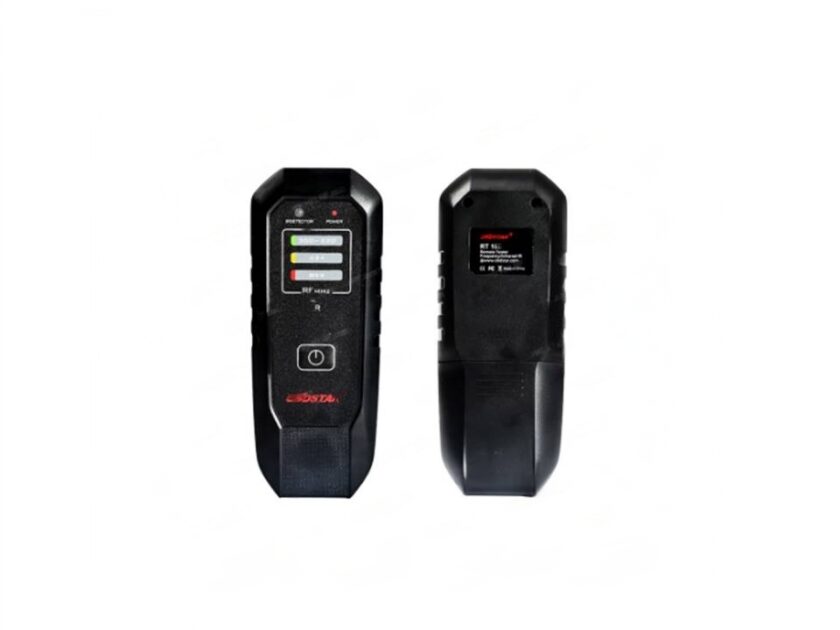

Immobilizer+Mileage correction+Diagnosis+Special function (Oil rest +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag rest+TPMS+Steering angle rest+OBDII+DPF+Injector code+Supension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyota smarkt key Emulator)+others(Ignition coil+Remote tester)
This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.
Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

OBDSTAR X300 DP Plus X300 PAD2 8inch Tablet (Full package) C Package

OBDSTAR X300 Key Master DP Plus Hardware Advantages:
1. Built-in VCI box

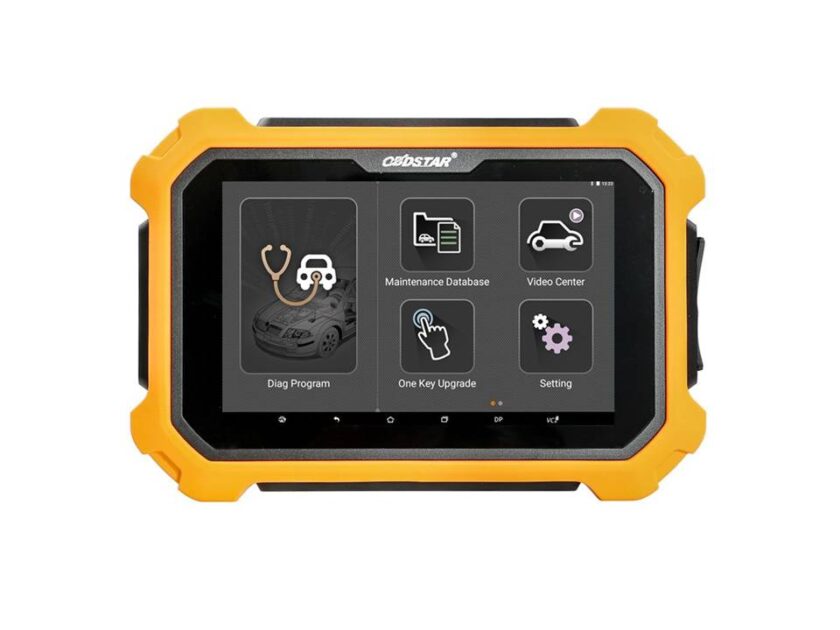

2. 8-inch touchscreen
3. Charge directly via OBD interface

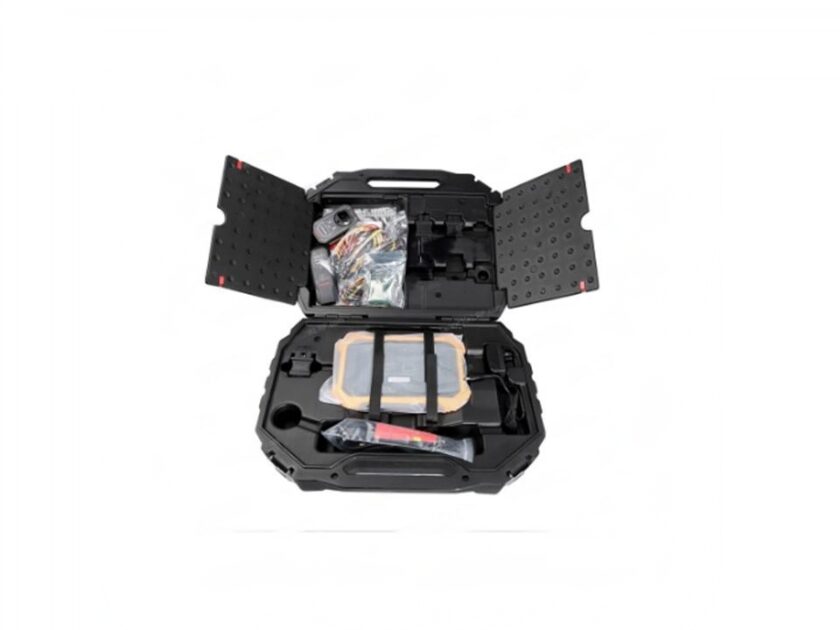

4. Practical and high-end gift box
5. Industrial design with silicone case
6. Back bracket design:prop on the steering wheel or stand on the table
7. With 4 Tota simulation keys (the fifth is coming soon)

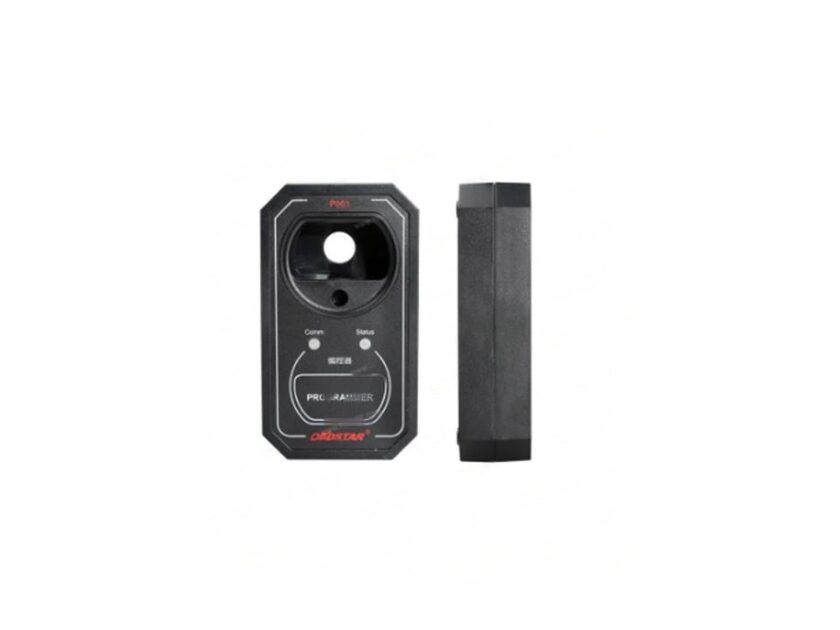

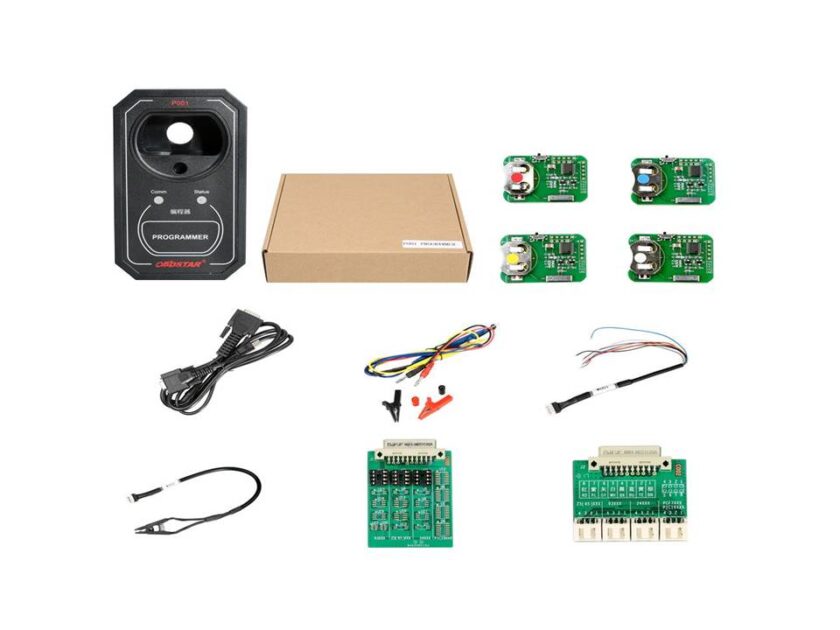

8. P001 programmer: EEPROM adapter + RFID adapter + Key Renew adapter
9. Add the clip of reading SOP 8PIN EEPROM
10. C001/C002 circuit board to read and write chip data with welding
11. IMMO induction coil to detect the key induction coil failure of the vehicle.
12. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)
OBDSTAR X300 Key Master DP Plus Software Advantages:
IMMO:
1. EEPROM
2. Renew Key
3. Key programming
4. Remote programming
Cluster Calibrate: wild vehicle coverage, pls check the carlist
Diagnosis: realize all vehicle systems diagnosis
Special Functions
TPS/ABS/EPB/DPF/TPMS/SRS Reset/Fuel Injector/Gear Learning/Battery Matching/ECU Programming/Throttle Matching/
Oil/service reset/Steering Angle Reset/Remote Manual Setting/Electronic Steering Reset/CVT Learning/value Reset
ECU Clone

1. including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.
2. Carlist and upgrade announcement, all details are available on the device
3. Customers can look up the features or uniquely support functions on the device
4. Help notes: built-in help notes for each model or function
5. Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient
TECHNICAL PARAMETER
● Operation system: Android 5.1.1
● CPU: Exynos4418  Dual Core ARM Cortex A9 1.4GHz
● Battery: 3700mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Memory capacity:1GB
● Storage capacity: 32GB
● LCD: 8.0 inch
● LCD resolution: 1280*800
● Touch screen: Capacitive touch screen
● Camera: 5 mega rear view camera
● Wi-Fi: supported
● Working temperature: -10℃  ~  55℃（14℉  ~  131℉ ）
● Storage temperature: -20℃  ~  70℃（-4℉  ~ 158℉ ）
● Weight: about 1.0 Kg
● Dimension: 254mm*174*mm*35mm
I. Functional Overview:
Induction Coil is used to detect the key induction coil failure of the vehicle.
II. Application Method:
Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.
I. Functional Overview:
Induction Coil is used to detect the key induction coil failure of the vehicle.
II. Application Method:
Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.
