Description

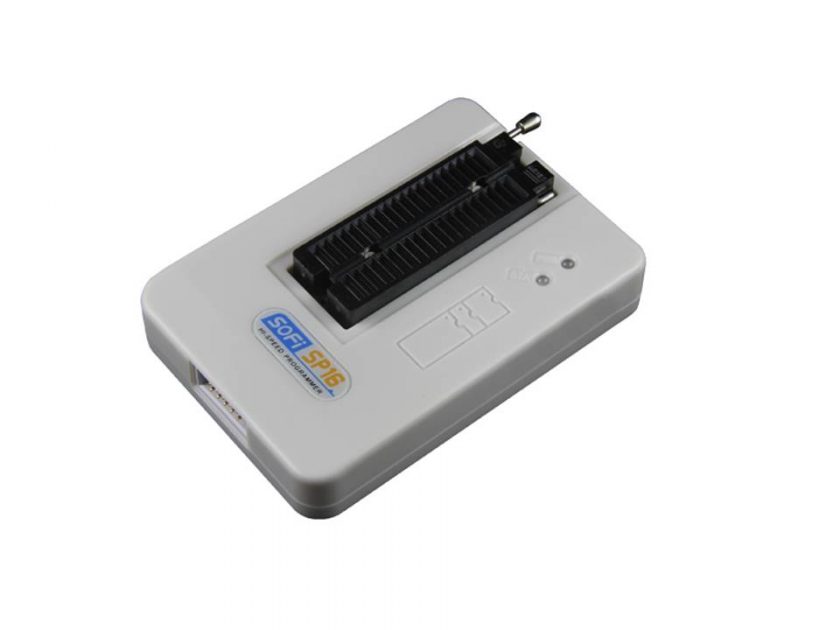

Designed specifically for serial EEPROM / SPI FLASH device, faster and more stable than generalpurpose
programmer
? USB power supply and communication, no external power supply required. Small size (size:
103x71x23mm), easy to carry
? Supports a full range of 93/24/25/BR90 memories, supports software upgrades to increase support for
new devices
? Supports detection of 25 series SPI FLASH device models;
? Supports pin contact detection to improve the reliability of programming;
? Supports ISP program. On-board patch devices can be directly connected to be programmed
? Standard 40Pin ZIF socket, applicable to wide/narrow devices and general adapters
? Over current protection function to effectively prevent misplaced or destroyed device’s effects on the
programmer;
? Programmer has a built-in 32-bit high-speed processor that provides high-speed programming and
precise timing;
? Supports off-line programming without connecting computers. Has a large data memory built-in that can
supports up to 512 M bit device to program off-line (Note 1);
? Mass production programming mode, automatic detection of device placement and start programming
operation;
? ATE interface function that supports automatic programming machine to control (Note 2);
? Supports one computer to connect multiple programmers programming at the same time, one computer
can connect up to 8 programmers
? The buzzer present voice prompt for success or failure
? Programmable voltage design, adjustable from 1.7V to 5.0V, supporting 1.8V/2.5V/3V/3.3V/5V devices;
? Provide device self-test function;
? Support WinXP (SP2), VISTA, Win7/Win8/Win10 (32bit/64bit)
