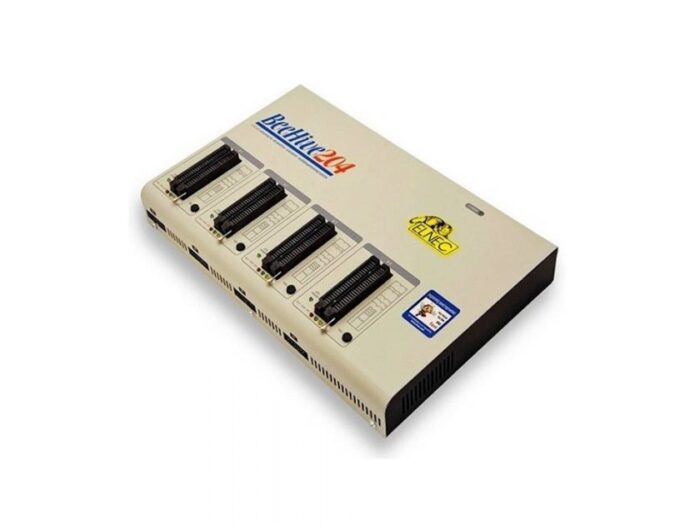

BeeHive204 Production Programmer

SKU: OMP-PR028 Category:



Four independent universal programming sites  in one unit

Extremely fast programming, one of the fastest programmers in this category.

Sustainable programming speed greater than 5 MBytes per second.

Programs 2 GB eMMC NAND Flash in less than 365 sec.

Powerful independent pin driver circuit for each and every pin of the programmer

In-circuit programming capability through ISP connector

Very low voltage support for the latest Flash memory chips

ESD protection on each pin of the sockets

USB (up to 480 Mbit/s) interface to PC

Comfortable and easy to use control program, works with all versions of MS Windows from Windows XP to Windows 10 (32-bit and 64-bit)


Hands-free operation: asynchronous and concurrent operation allows a chip to begin programming immediately upon insertion of a chip. The operator merely removes the finished chip and inserts a new chip. Operator training is therefore minimized.

Using built-in in-circuit serial programming (ISP) connector, the programmer is able to program ISP capable chips in circuit.

Supports all kinds of types and silicon technologies of today and tomorrow programmable devices without family-specific module.

You can be sure the next devices support require the software update and (if necessary) simple package convertor (programming adapter), therefore the ownership cost are minimized.

Provides very competitive price coupled with excellent hardware design for reliable programming. Probably best  value for money  programmer in this class.

It  interfaces with any IBM PC compatible personal computers, running MS Windows OS, through USB (2.0 High-speed)port.

Very fast programming due to high-speed FPGA driven hardware and execution of time-critical routines inside of the programmer. As a result, when used in manually-operated production, this one-socket-programmer in most cases waits for an operator.
