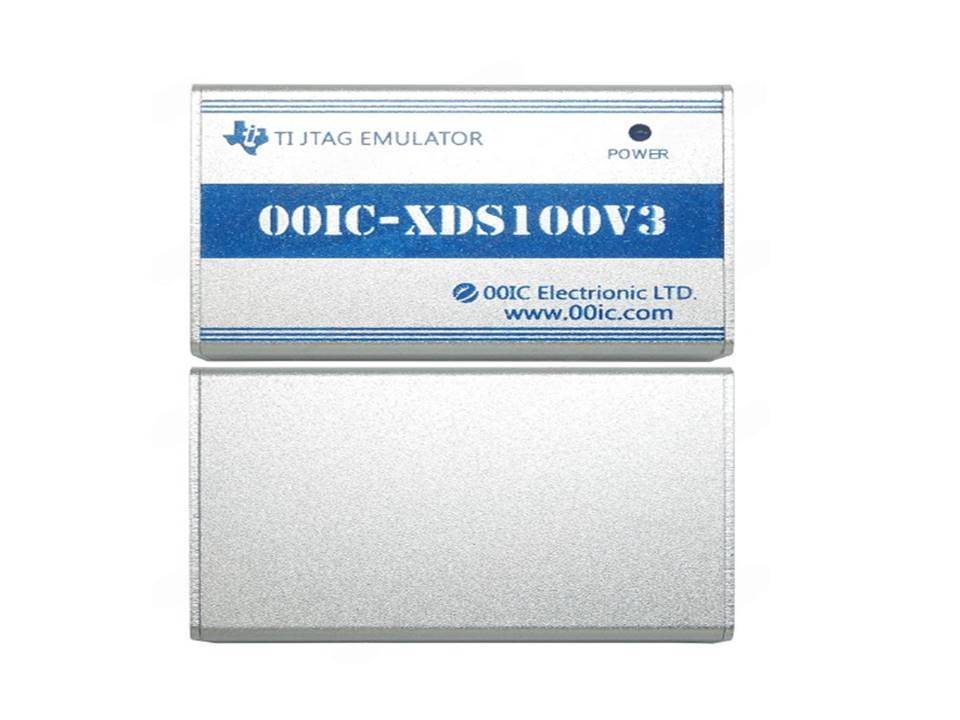

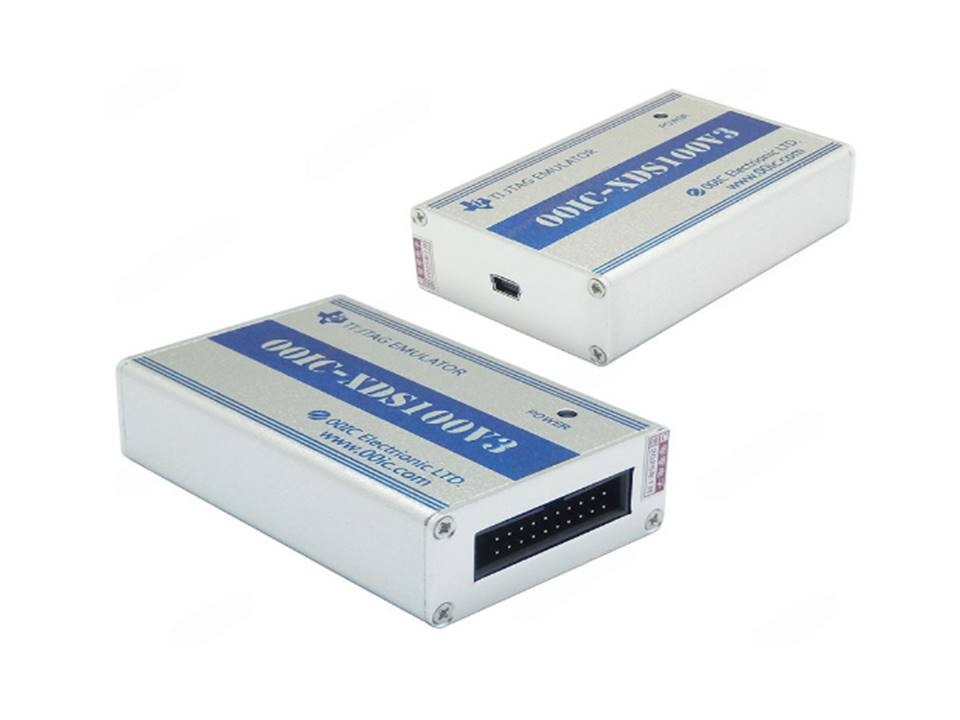

00IC-XDS100v3 TI DSP ARM Emulator DSP JTAG Debugger Programmer

FEATURE：

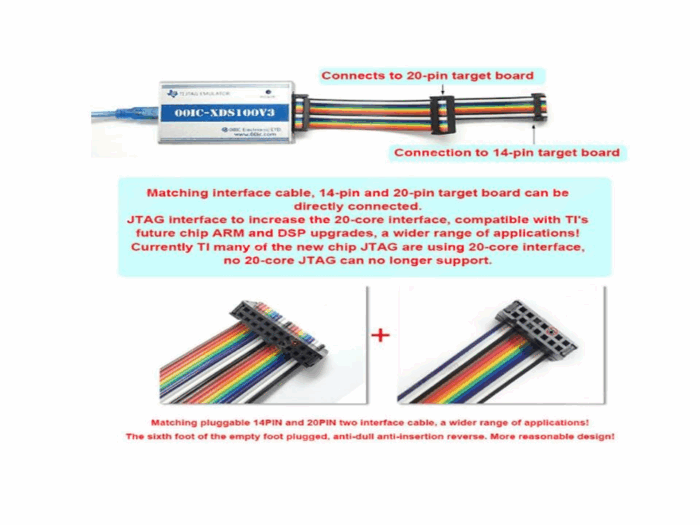

◆ JTAG interface supporting 20PIN and 14PIN

◆ Support high speed USB code download

◆ support for connection / disconnection, read / write memory, read registers, load programs, run, stop, single-step, software breakpoints, hardware breakpoints, real-time mode debugging

◆Support target cable disconnection detection, target chip power-off detection

Supports multiple FTDI device drivers

◆ Support adaptive clock

◆ Support JTAG reset, wait for reset mode again

◆ Support power-on reset startup mode

◆ Supports 1.8-3.3V JTAG level standard

◆ Supports TI’s JTAG and cJTAG protocols

◆ Support adjustable TCLK clock

◆Support LED lights show USB connection

◆Support complex industrial on-site debugging and isolation protection of JTAG

◆ With higher JTAG speed, FPGA system clock is 100MHz

◆ Support CCS5.2/CCS5.5/CCS6 and higher software

◆ Drive-free, plug in the emulator to automatically identify.

◆ Support C2000 from CCS environment programming

◆ Supports Windows 2000/XP/Vista/WIN7/8/10

◆ Aluminum alloy shell

◆Size: 75x50x20mm

◆Supports TMS320C28XXX, TMS320C54XX, TMS320C55XX, TMS320C674X, TMS320C64X+, TMS320C66XX, TI ARM9, Cortex A8 A9, Cortex M3 M4, Cortex r4, TMS470LSXX, TMS570LSXX, Davinci series, etc.
Note: Chips such as 2407/6713/642 are not supported

Packages Include:

1 x XDS100V3 Debugger Programmer

1 x USB cable

1 x 20-20-14pin cable
