MCH YBD-868 Universal Digital IC Tester

MCH YBD-868 Universal Digital IC Tester Manual

Product Description

YBD-868 Omatom Power User Manual

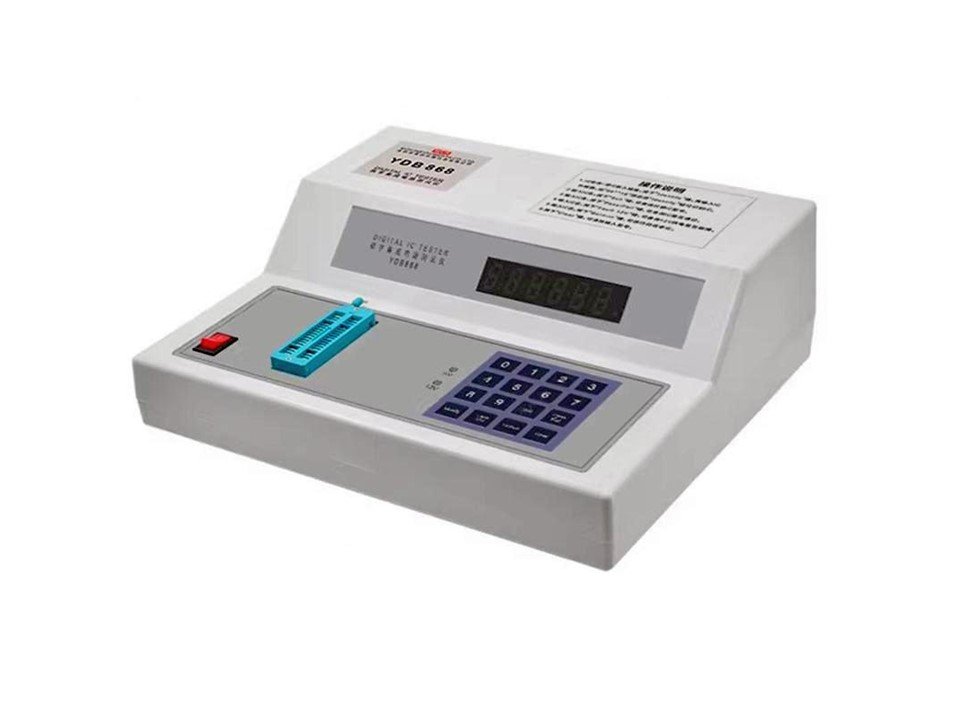

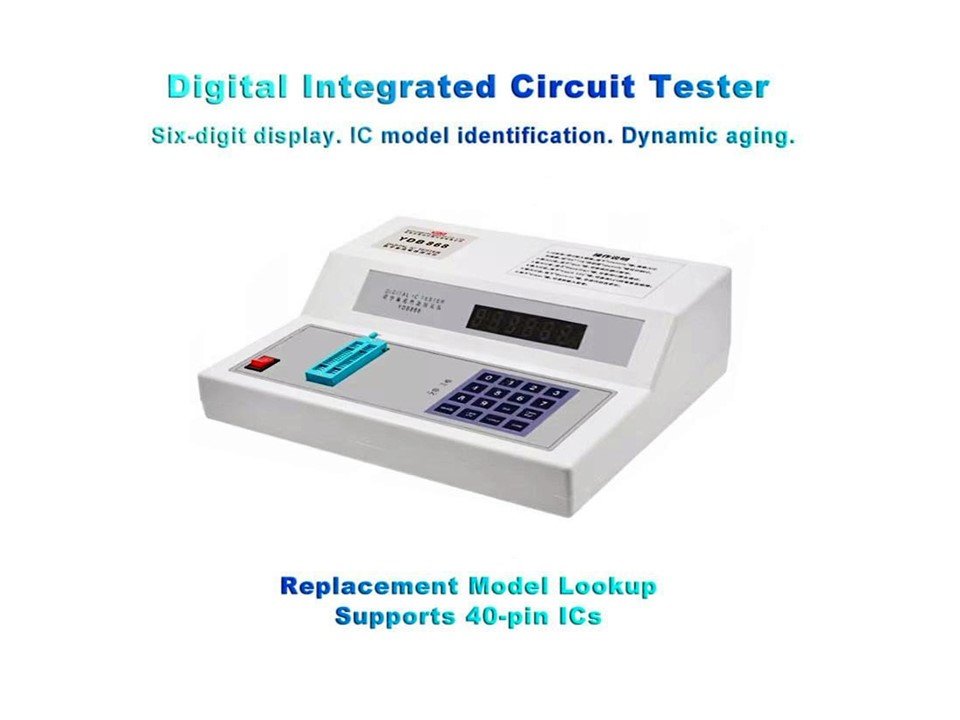

MCH YBD-868 Digital IC Tester is a universal testing instrument designed for testing and identifying a wide range of digital integrated circuits. It supports up to 40-pin DIP ICs and provides reliable PASS/FAIL testing, device identification, substitution checking, and dynamic burn-in testing.

With its easy-to-use keypad and digital display, the YBD-868 is suitable for electronics repair, maintenance, troubleshooting, laboratories, production testing, and educational applications.

Key Features

• Supports up to 40-pin DIP ICs
• Tests more than 2,000 device types
• Automatic IC model identification
• PASS/FAIL functional testing
• Dynamic burn-in testing
• IC substitution query function
• Supports 54/74-series TTL
• Supports 4000/4500-series CMOS

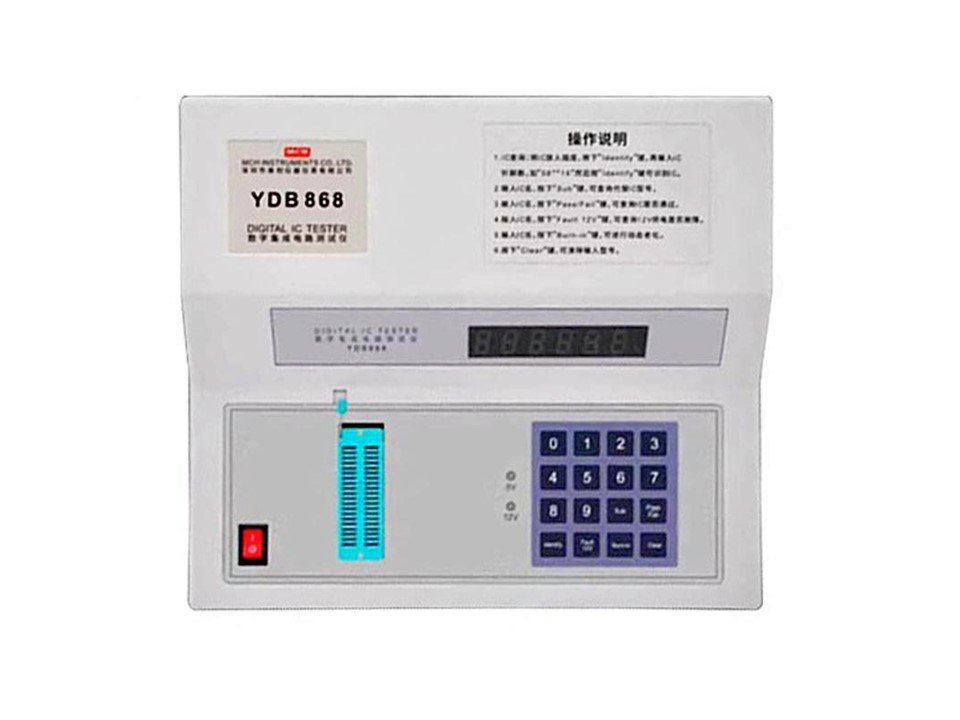

• 16-key keypad with audible indication
• 6-digit LED display
• 40-pin ZIF test socket

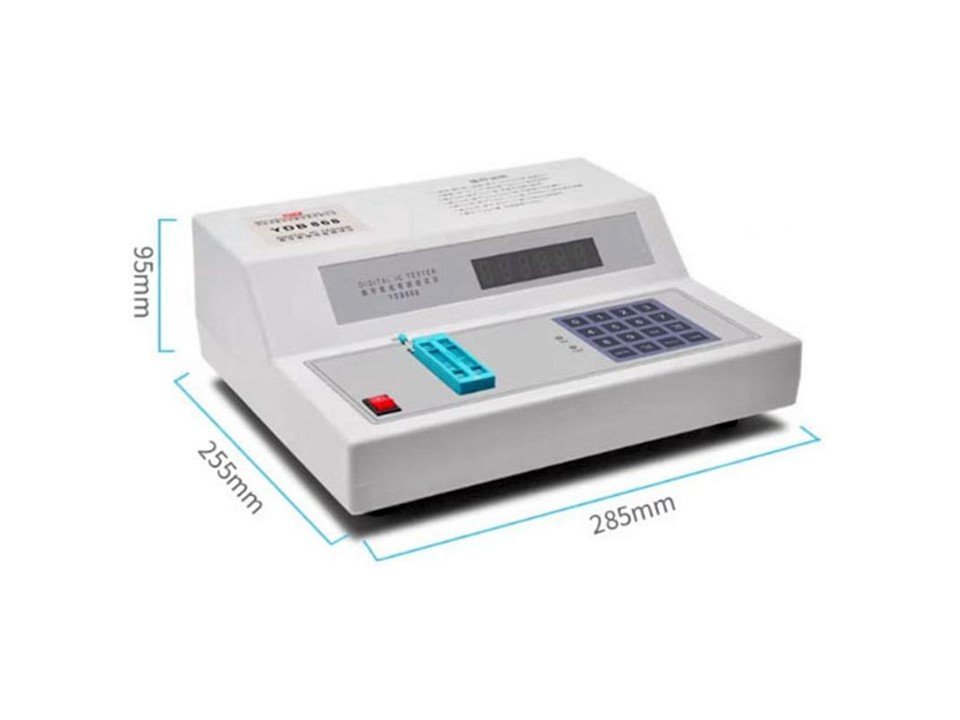

• Compact benchtop design
• Suitable for electronics repair and testing applications
