TTP224 4 WAY Touch Sensor module

SKU: OMP-S031 Category:

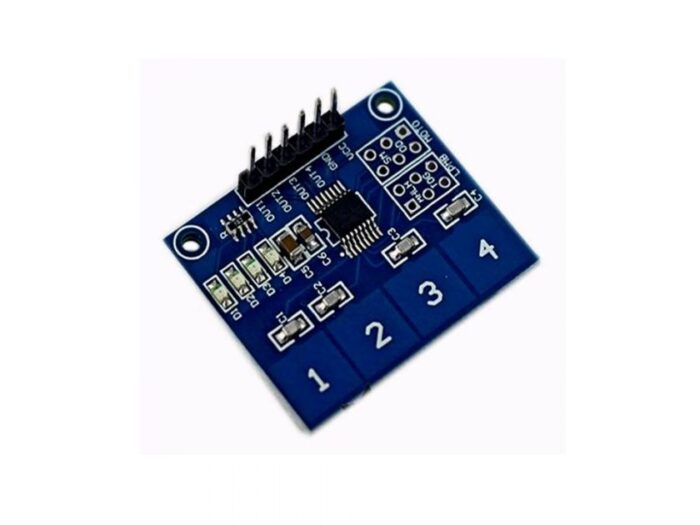

This is a 4 switch digital touch sensor with capacitive sense technology, the TTP 224 IC offers capacitive sense input feed designed for touch pad control, followed by 4- finger sized touch pad. The board has jumper’s arrangement to change the key press output mode in Timed or Toggle, Active High or Active Low. A separate jumpers adjustments are provided for changing the response time of the press key: 60mS fast mode or 160mS in Low power.

The output side of the board has 6 pin headers, with 4 pins to be connected with the digital I/O of any microcontroller board (Arduino, ARM STM32). 4 status LED SMD type are provided for check the status of the each pressed key.


Onboard TTP224 capacitive 4 key touch induction IC.

Onboard the 4 way level indicator.

Operating voltage: 2.4V-5.5V.

PCB board size:35(mm)×29(mm).
