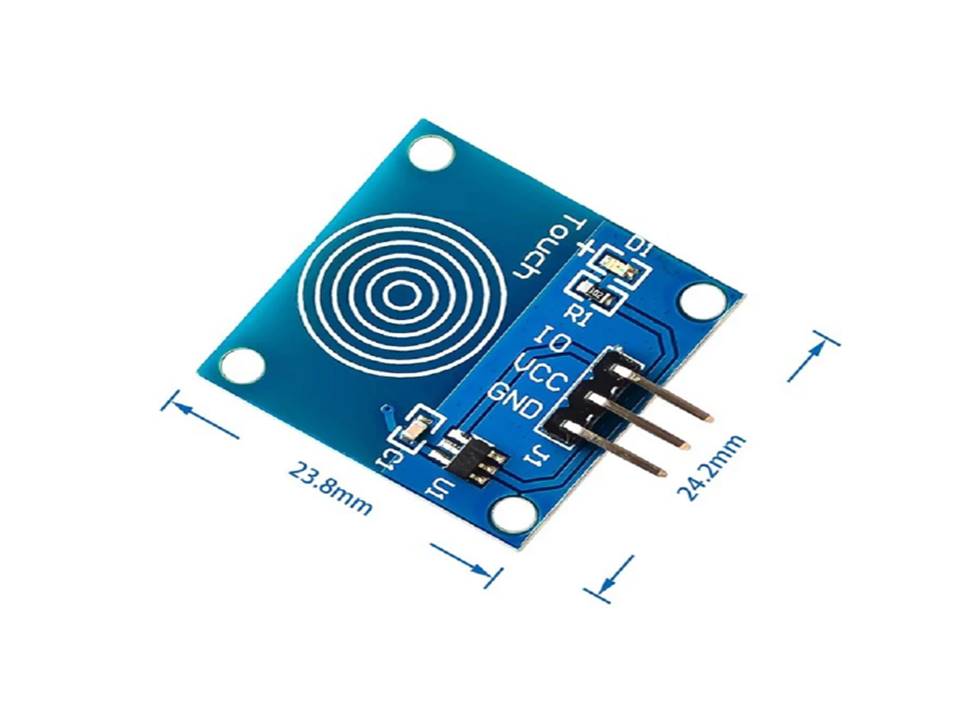

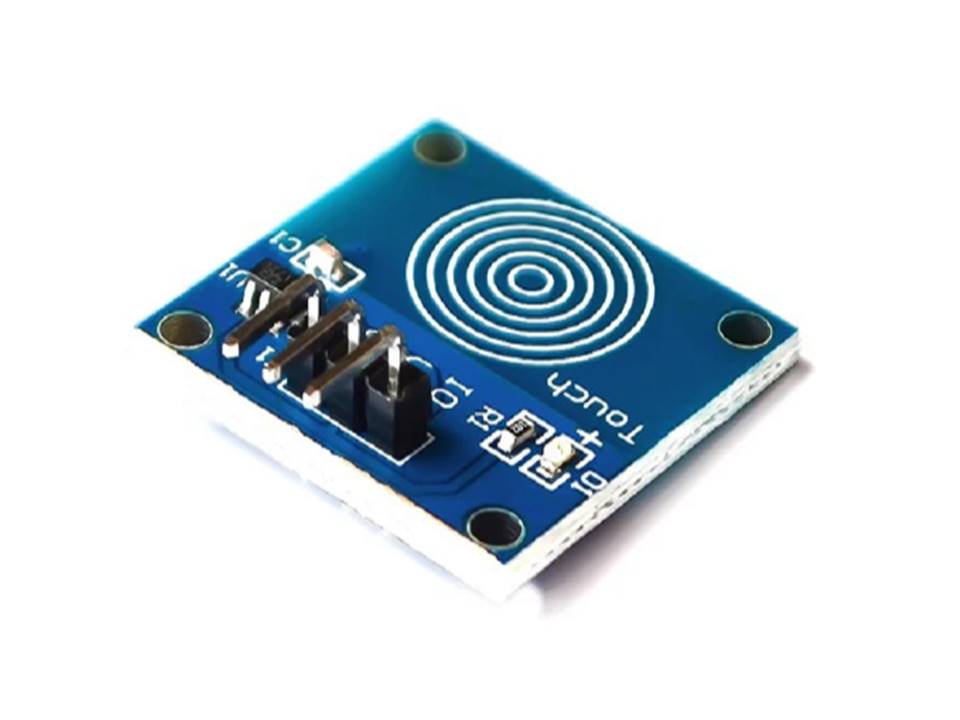

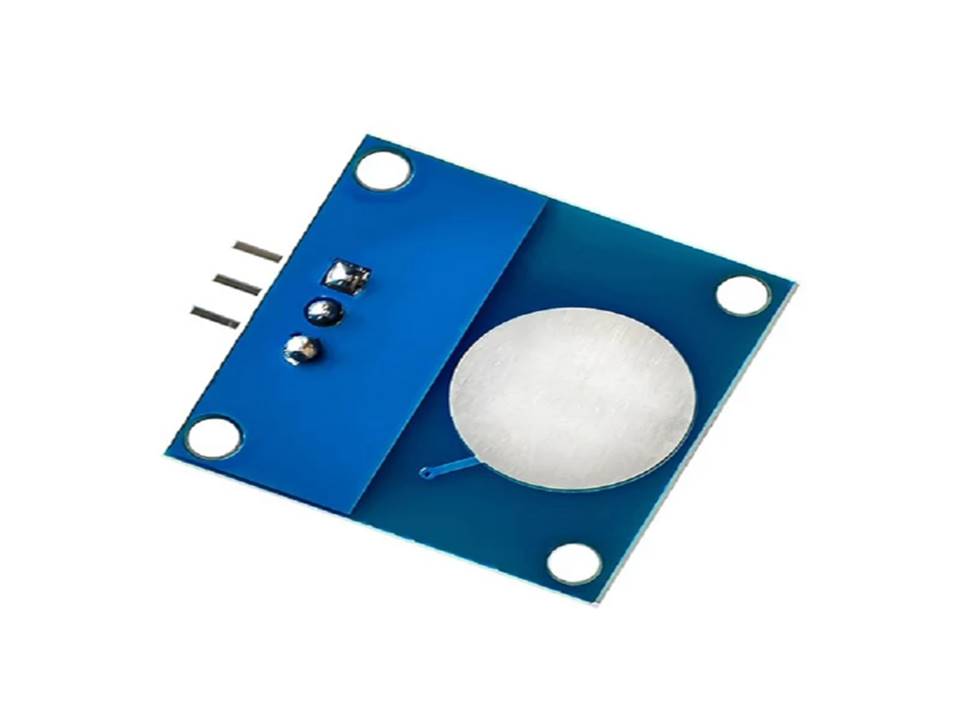

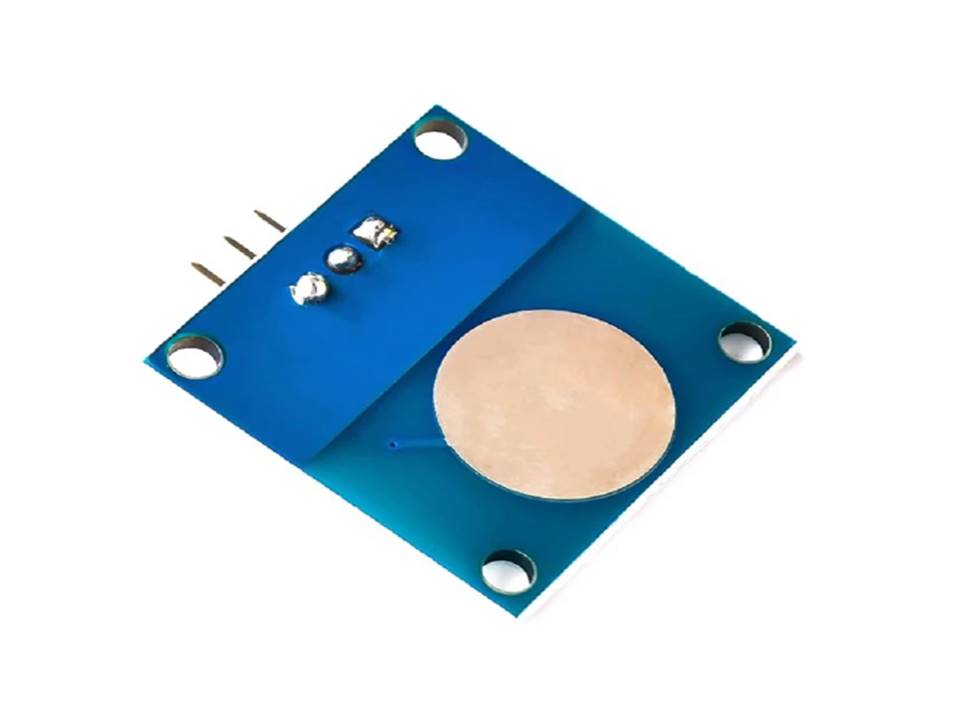

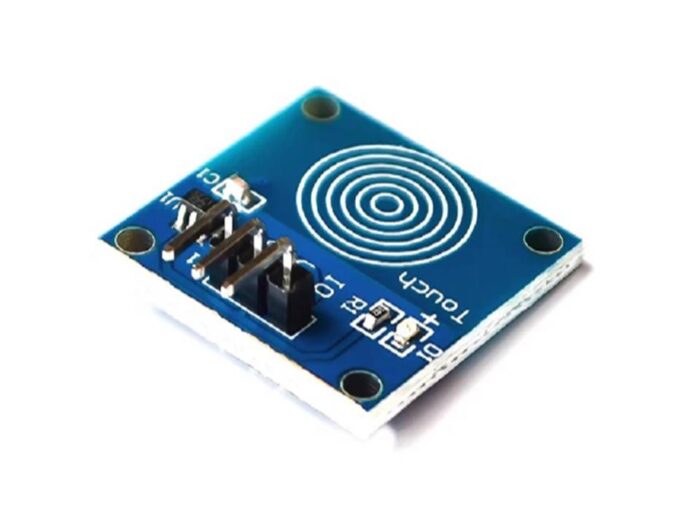

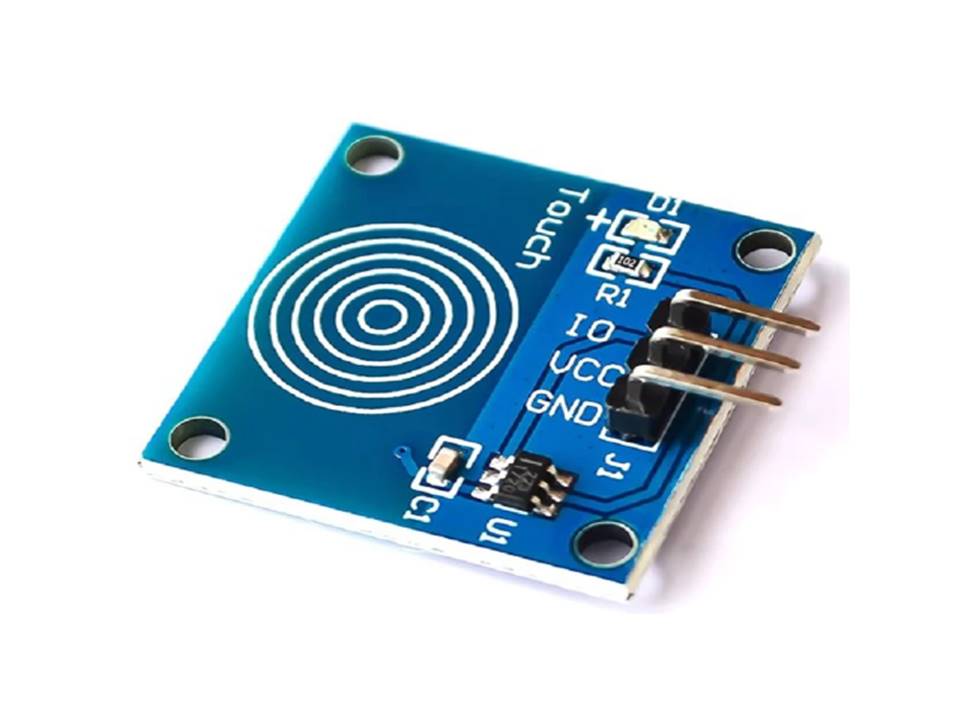

TTP223 Touch Sensor Module

150.00 {Inc. GST}

Without GST Price Rs. 127.11

GST Input Tax Credit is available

1 in stock (can be backordered)

SKU: OMP-S025 Category:

Description

The TTP223 is a touch pad detector IC which offers 1 touch key. The touching detection IC is designed  for  replacing  traditional  direct  button  key  with  diverse  pad  size.  Low power consumption and wide operating voltage are the contact key features for DC or AC application.

FEATURES

Operating voltage 2.0V~5.5V

Operating current @VDD=3V, no load, SLRFTB=1 At low power mode typical 1.5uA, maximum 3.0uA ,At  fast  mode  typical 3.5uA, maximum 7.0uA, @VDD=3V,  no  load,  SLRFTB=0  At low power mode typical 2.0uA, maximum 4.0uA ,At  fast  mode  typical 6.5uA, maximum 13.0uA

The response time max about 60mS at fast mode, 220mS at low power mode @VDD=3V

Sensitivity can adjust by the capacitance (0~50pF) outside

Have two kinds of sampling length by pad option (SLRFTB pin)

Stable touching detection of human body for replacing traditional direct switch key

Provides Fast mode and Low Power mode selection by pad option (LPMB pin)

Provides direct mode ‘toggle mode by pad option (TOG pin), Open drain mode by bonding option, OPDO pin is open drain output, Q pin is CMOS output

All output modes can be selected active high or active low by pad option (AHLB pin)

Have the maximum on time 100sec by pad option (MOTB pin)

Have external power on reset pin (RST pin)

After power-on have about 0.5sec stable-time, during the time do not touch the key pad,  And the function is disabled

Auto calibration for life and the re-calibration period is about 4.0sec, when key has not be touched

APPLICATION

Wide consumer products

Water proofed electric products

Button key replacement

Additional information

Weight 50 g
