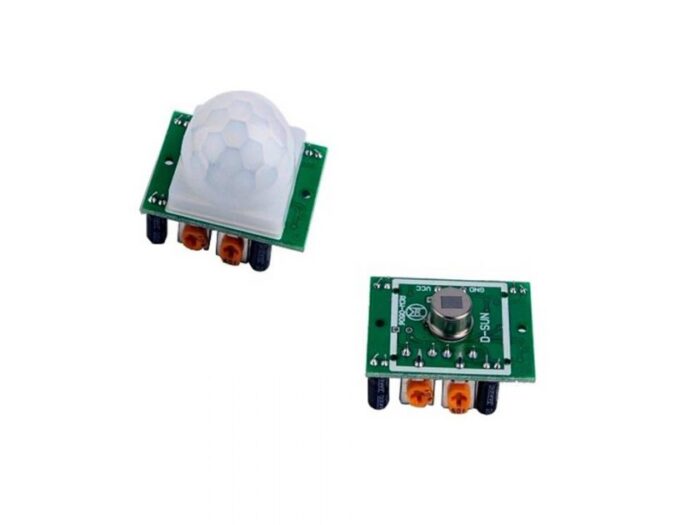

HC-SR501 PIR Motion Sensor

SKU: OMP-S035 Category:



PIR Motion Sensor Input 220vac output 220 vac load 500watt max delay time 3 sec to 15 min. One year warranty compact and sleek design used on inverter also application Hotels, Kitchen, Garden etc.


Working Voltage Range: DC 4.5V- 20V

Current Drain: <60uA

Detection Range: <140°

Voltage Output: High/Low level Signal: 3.3V TTL output

Detection Distance: 3 to 7m (can be adjusted)

Delay Time: 5 to 200s (Can be Adjusted, Default 5s +/- 3%)

Blockade time: 2.5s (Default)

Trigger: L: Non-repeatable trigger H: Repeat Trigger (Default)

Work temperature: -20-+80°C

Trigger Method: L Unrepeatable Trigger / H Repeatable Trigger

Material: Mixed Material

Dimension: 3.2cm x 2.4cm x 1.8cm (Approx)

Time Setting: Turn to Right, Time Increases (About 300S); Turn to Left, Time Reduce (About 5S).
