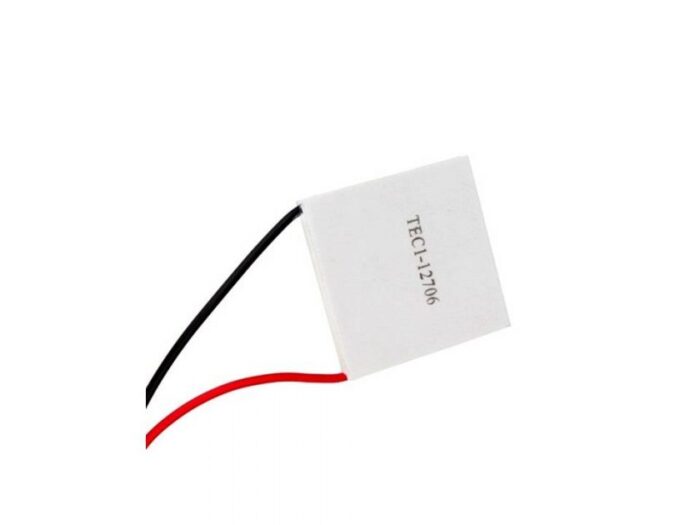

TEC1-12706 Thermoelectric Cooler Peltier Module

SKU: OMP-M087 Category:



This is TEC1-12706 40x40mm thermoelectric cooler Peltier plate module 12V 60W

Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.

Hot and cold on both sides of the temperature difference of 68 degrees. Connected to the 12-volt power supply cooling piece on both sides there will be difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise it will cause cooler internal overheating and burning.


Max Voltage: 14.4V (Hot side at 25°C), 16.4V (Hot side at 50°C)

Max Current: 6.4A

Max Refrigerating Power: 50W (Hot side at 25°C), 57W (Hot side at 50°C)

Difference Range: >68°C

Wires: 20AWG, 600V, 105°C

Wire length: 28.5cm (11.22″)

Weight: 23.22g (0.82oz)

Dimensions (excluding wires): 40mm (1.58in) length, 40mm (1.58in) width, 3.8mm (0.15in) height
