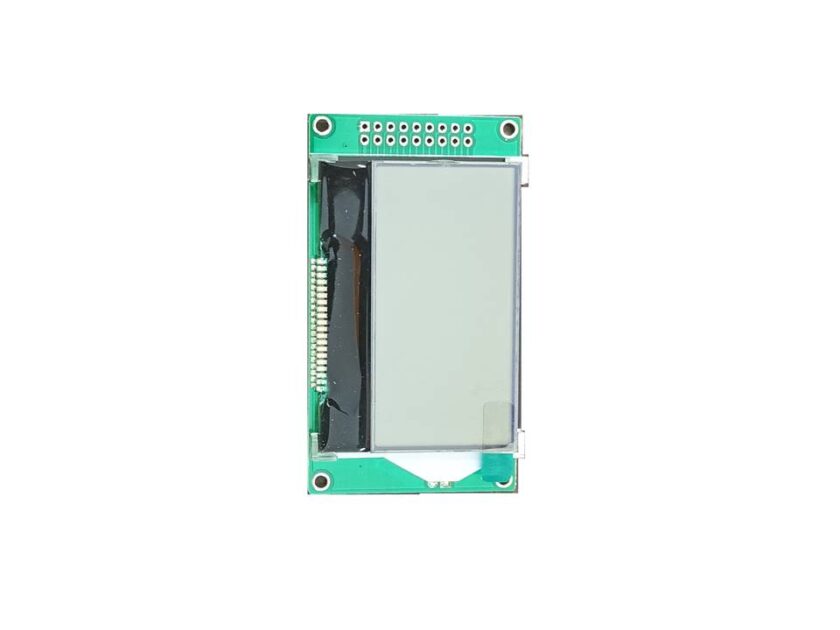

Description
NOTES:
1.LCD TYPE: FSTN,Positive Transflective.
2.OPERATING VOLTAGE: VDD-3.0V,Vop=9.45V
3.VIEWING DIRECTION: 6 O’CLOCK
4.DRIVE METHOD: 1/65 Duty,1/9 Bias
5.OPERATING TEMP: -20º C TO +70º C
6.STORAGE TEMP: -30º C TO +80º C
7.CONNECTOR TAPE: COG+20 Pin.
8.DRIVER IC: ST7567S
9.BACKLIGHT: 1 pes LED White,VF=3.1=0.2V,IF=15ma
