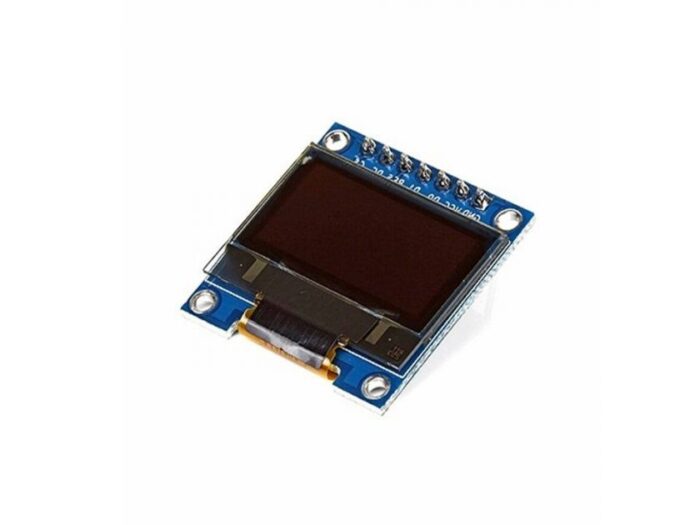

0.96 Inch 6 pin 128×64 White OLED Display Module

SKU: OMP-M091 Category:

Description

PRODUCT DETAILS

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode.

In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

96 inch white OLED display module. The display module can be interfaced with any microcontroller using SPI/IIC protocols.

SPECIFICATIONS

OLED Driver IC: SSD1306

Colour: white

Resolution: 128 x 64

Input Voltage: 3.3V – 6V

Working temperature: -30deg – 70deg

Compatible I/O Level: 3.3V, 5V

Mini Size: 2.7 x 2.8cm

Visual Angle: >160deg

Only Need 2 I/O Port to Control

Full Compatible with Arduino

Module volume ( generous ): 27.0 x 27.0 x 4.1mm
