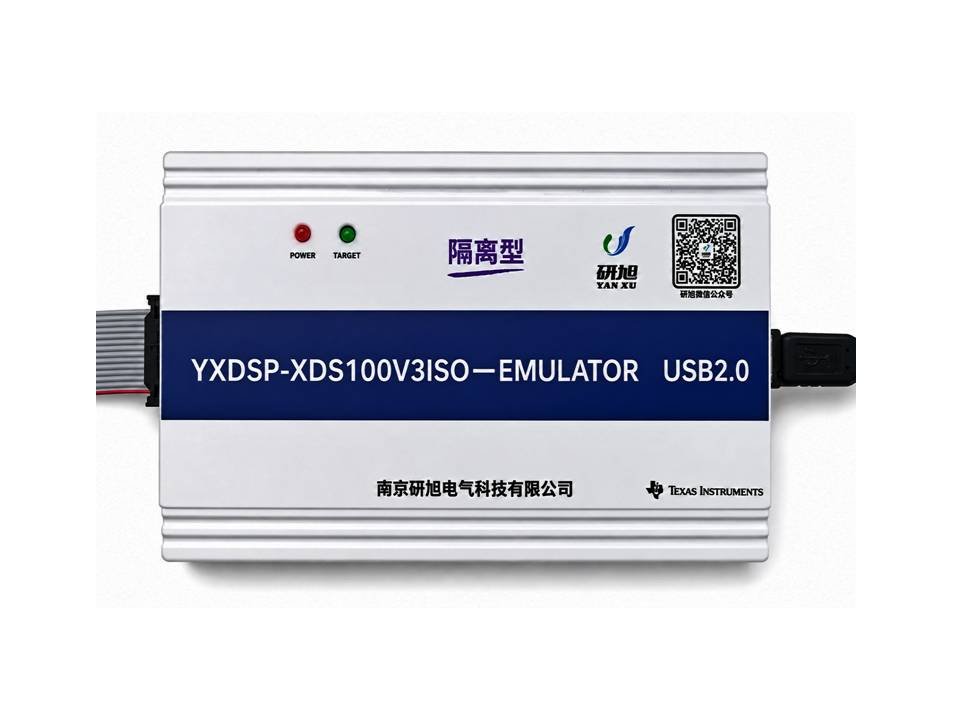

YXDSP-XDS100V3 Isolated Emulator Programmer

Product Overview

The YXDSP-XDS100V3 Isolated Emulator is an advanced JTAG debugging and programming tool developed based on Texas Instruments’ XDS100V3 architecture. As an upgraded version of the XDS100V2, it incorporates a high-performance 100MHz FPGA controller, delivering enhanced stability, faster download speeds, and reliable debugging performance.

Available in both isolated and non-isolated versions, the isolated model provides superior protection against electrical interference, surge voltages, and industrial noise. The USB and JTAG interfaces are completely electrically isolated, while the JTAG port can withstand up to 3KV surge voltage, ensuring safe and reliable operation in demanding environments.

Key Features

• Based on TI XDS100V3 architecture
• High-performance 100MHz FPGA controller
• Complete electrical isolation between USB and JTAG interfaces
• Supports CCS 5.2, CCS 5.5, CCS 6.0 and higher versions
• Driver-free operation with automatic device recognition
• Supports USB 2.0 High-Speed communication (480 Mbps)
• 3KV surge protection on JTAG interface
• High common-mode transient immunity (>25 kV/µs)
• Supports high-speed code download and online debugging
• Supports DSP FLASH programming and emulation
• Adjustable TCLK clock frequency
• Supports JTAG reset and boot modes
• Supports power-failure detection
• ESD protection for industrial applications
• Supports JTAG voltage levels from 1.8V to 3.3V

Technical Specifications

Supported Device Families

TMS320C28x Series

• TMS320F2810
• TMS320F2812
• TMS320F28335
• TMS320F2802x
• TMS320F2806x
• TMS320F2808
• TMS320F2809
• TMS320F28027
• TMS320F28035

TMS320C55x Series

• TMS320C5502
• TMS320C5509
• TMS320C5509A

TMS320C64x+ Series

• TMS320C6421
• TMS320C6424
• TMS320C6455

TMS320C674x Series

• TMS320C6745
• TMS320C6747
• TMS320C6748

OMAP Series

• OMAP-L137 Dual-Core Processors
• OMAP-L138 Dual-Core Processors

Applications

• DSP Development and Debugging
• Embedded System Design
• Industrial Automation
• Motor Control Development
• Firmware Programming
• Real-Time System Debugging
• Educational and Research Projects

Package Contents

• YXDSP-XDS100V3 Isolated Emulator
• USB Cable

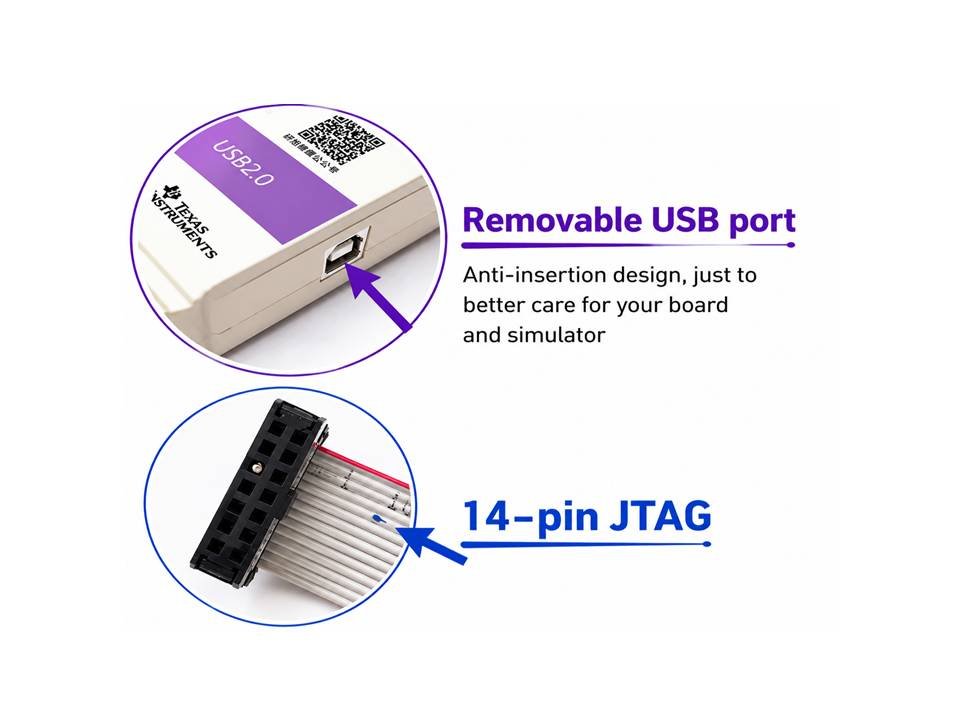

• 14-Pin JTAG Cable
• User Documentation

Advantages of the Isolated Version

The isolated version offers significantly higher immunity to electrical noise, surges, and ground-loop interference compared to standard emulators. Its galvanic isolation design protects the emulator, target board, and host computer, making it an ideal solution for industrial and professional development environments.
