XDS110 Debugger Emulator

Product Description

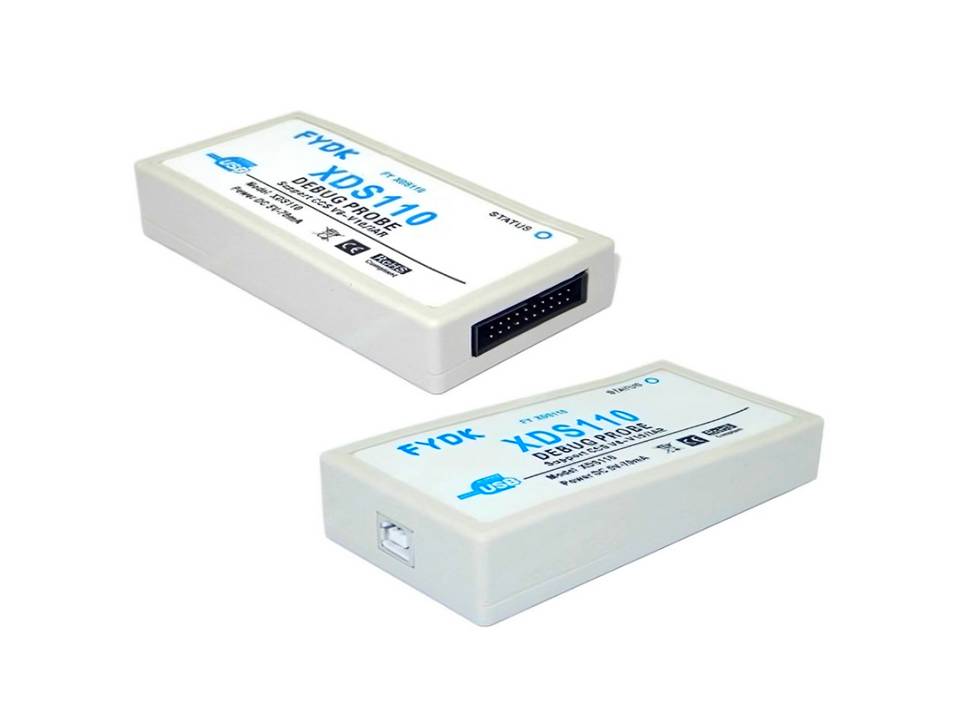

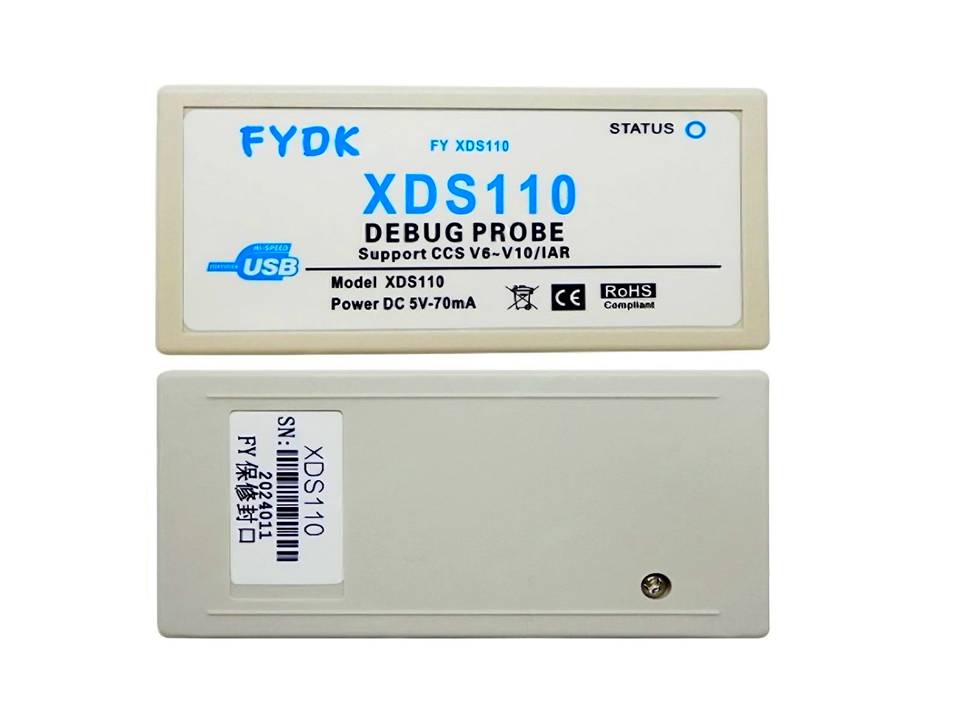

The XDS110 is a next-generation debug probe (emulator) designed for TI embedded processors. It replaces the XDS100 series and expands support for multiple standards, including IEEE1149.1, IEEE1149.7, and SWD, all within a single compact pod.

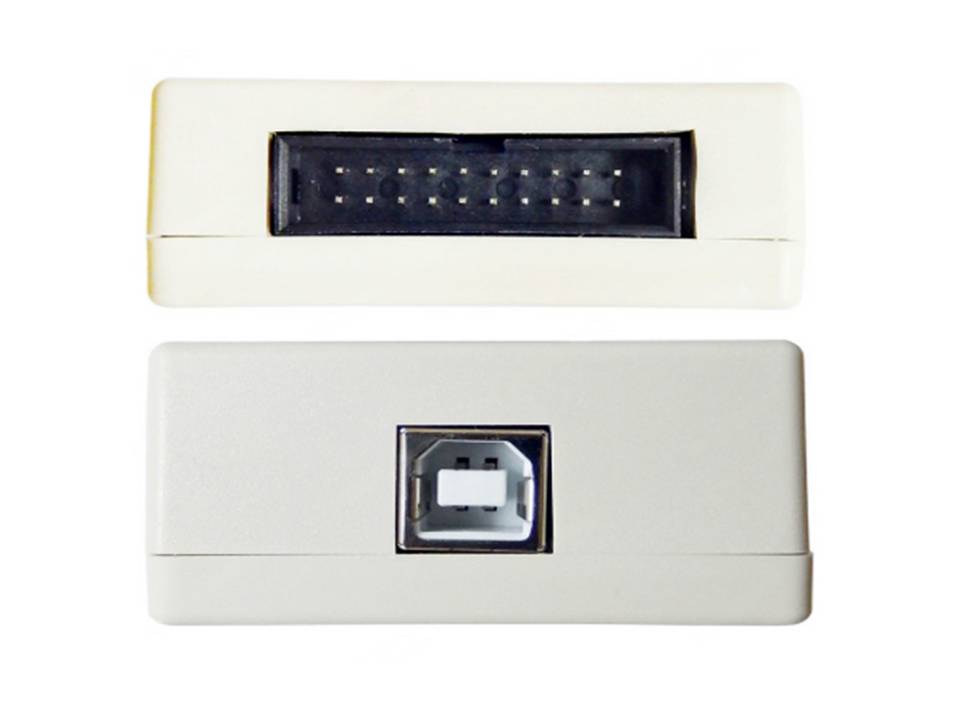

All XDS debug probes provide core and system trace capabilities for ARM and DSP processors equipped with Embedded Trace Buffers (ETBs). The XDS110 connects to target boards via a TI 20-pin connector (with adapters available for TI 14-pin and ARM 20-pin) and interfaces with the host PC through a USB 2.0 high-speed connection (480 Mbps).

Additionally, the XDS110 offers:

• An auxiliary 14-pin port with EnergyTrace™ support

• A full-duplex UART port

It supports simulation and debugging via 14-pin / 20-pin interfaces, is compatible with Code Composer Studio (CCS) V7/V8/V9/V10 and higher, and works with IAR for ARM. The device runs on Windows 7, 8, 10, and other supported operating systems.

Key Features

• USB 2.0 high-speed interface (up to 480 Mbps)

• Dual output level shifter chip with double buffering

• USB-side self-recovery protection for host computer safety

• JTAG-side ESD protection (15KV), stable and reliable

• Supports power failure detection and adaptive clock

• JTAG reset and wait-for-reset boot modes

• Power-on reset boot mode

• Multiple FTDI device driver support

• Adjustable TCLK clock

• JTAG voltage support: 1.8V ~ 5V

• Supports TI standard 14-pin and 20-pin JTAG interfaces

• 2-wire cJTAG interface for simplified target board connection

• Driver-free operation, automatically recognized by the host

• High-speed USB code download capability

• DSP Flash in-circuit emulation support

• Faster emulation and download performance

• Compatible with CCS V7 and above (including CCS V10)

• Supports IAR for ARM V7.5 or higher

• Works with Flash Programmer 2, UniFlash standalone programming software, and SmartRF Studio

• Compatible with Windows 7, 8, 10, and later versions

Supported Devices

• SimpleLink MCUs: CC13xx, CC26xx, CC3x, MSP432

• C2000, TM4C12x, Hercules microcontrollers

• Sitara series: AM335x, AM43xx, AM57xx, AM65xx, AMIC1xx

• Automotive SoCs: TDAx ADAS, DRAx infotainment

• mmWave sensors: IWR/AWR14xx, IWR/AWR16xx, IWR68xx

• DSPs: C674x, C66x (Keystone I), C642x, C645x, C55x

• Multicore DSP + ARM SoCs: 66AK2, TCI66x (Keystone II)

• Digital Power: UCD3x devices

• Other SoCs: PGA970, PRU, C674x, C66xx, Cortex M, Cortex R, Cortex A

Shipping List

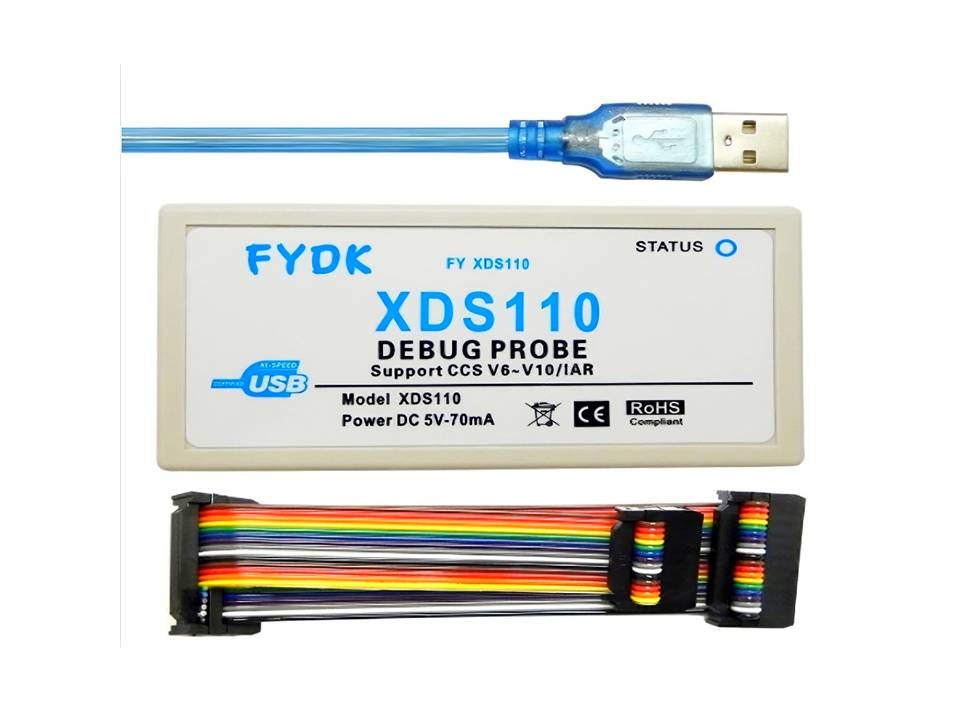

1. XDS110 Emulator – 1 set

2. USB 2.0 High-Speed Cable – 1 pc

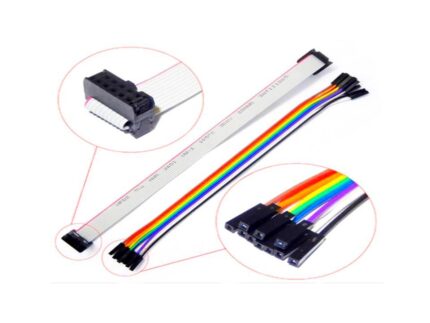

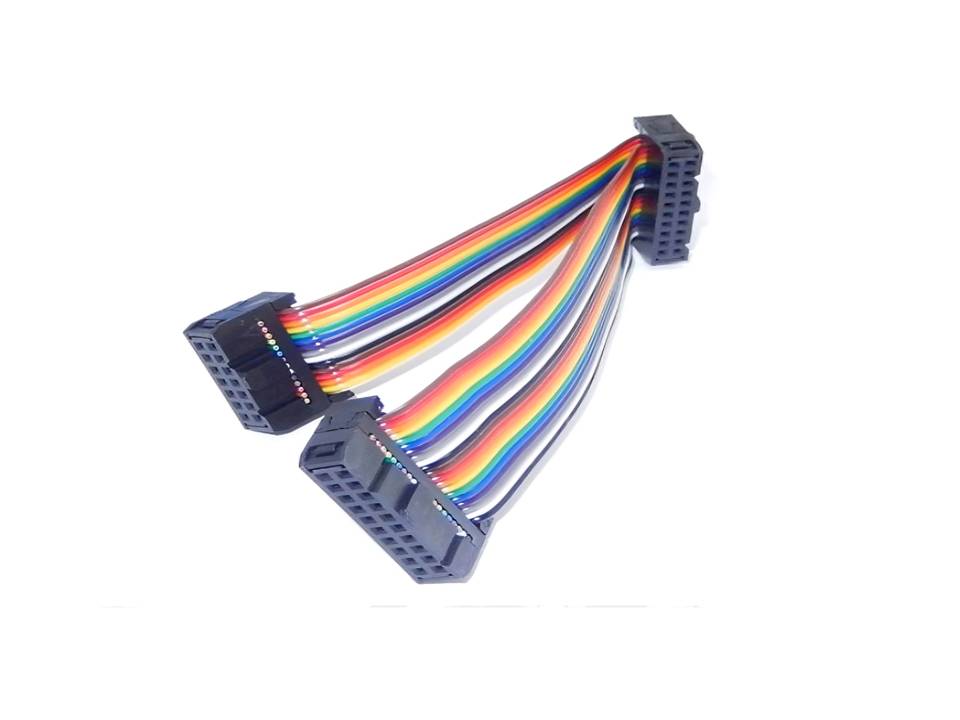

3. 14/20-pin JTAG Color Ribbon Cable – 1 pc
