Texas Instruments XDS110 Debug Probe (JTAG / cJTAG / SWD Emulator)

Overview

The Texas Instruments XDS110 is a next-generation debug probe (emulator) designed for TI embedded processors and microcontrollers. It replaces the XDS100 family while providing broader compatibility and enhanced debugging capabilities through support for IEEE1149.1 (JTAG), IEEE1149.7 (cJTAG), and ARM Serial Wire Debug (SWD) interfaces in a single device.

The XDS110 is the ideal low-cost debugging solution for TI microcontrollers, processors, and SimpleLink™ wireless devices. It offers improved JTAG and cJTAG throughput, support for SWD/SWO debugging, EnergyTrace™ technology, and high-speed USB connectivity.

Key Features

• Supports JTAG (IEEE1149.1), cJTAG (IEEE1149.7), SWD, and SWO
• High-speed USB 2.0 interface (480 Mbps)
• Compatible with Code Composer Studio™ v7.0 or later
• Supports Core and System Trace through Embedded Trace Buffer (ETB)
• Integrated EnergyTrace™ technology for power analysis
• UART communication and 4 GPIO pins available through auxiliary port
• Supports target voltages from 1.8V to 3.6V
• Faster data throughput compared to XDS100 debuggers
• Compact and reliable debugging solution

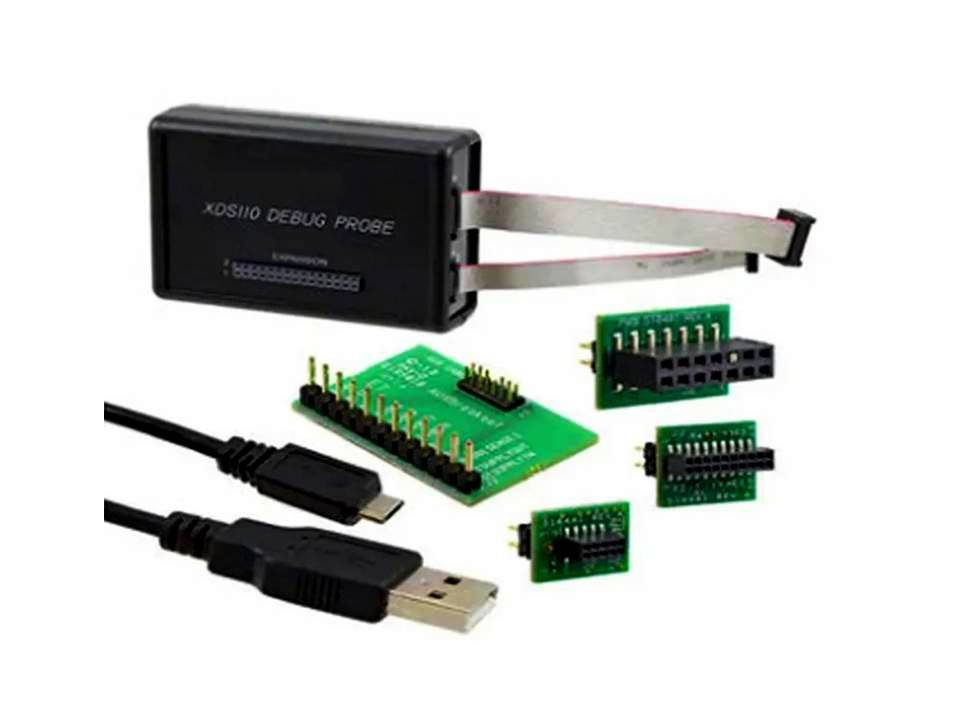

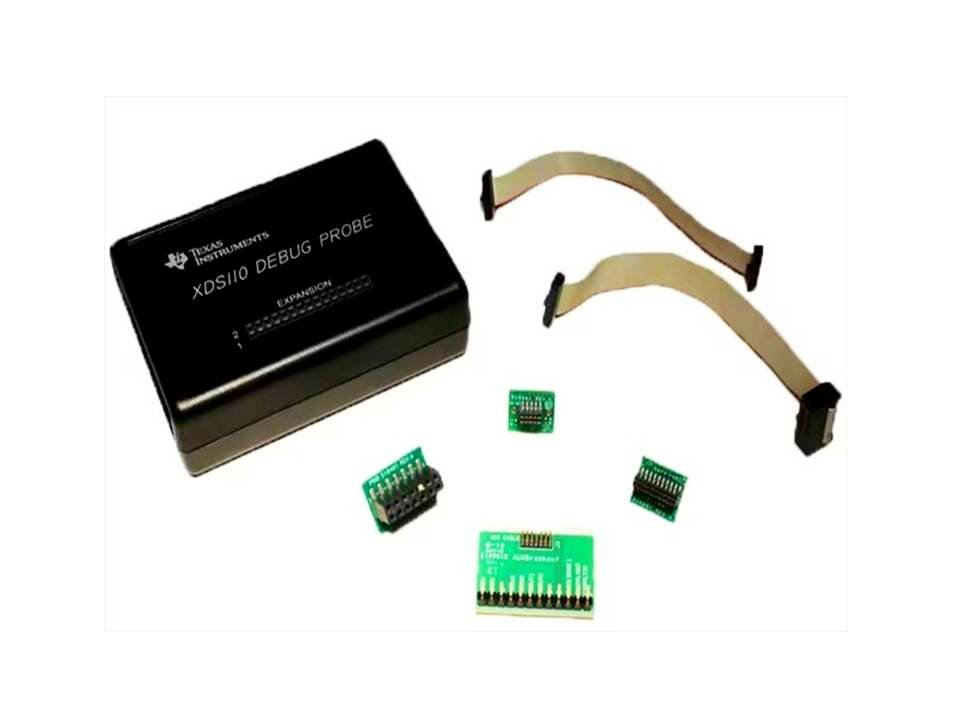

Package Contents

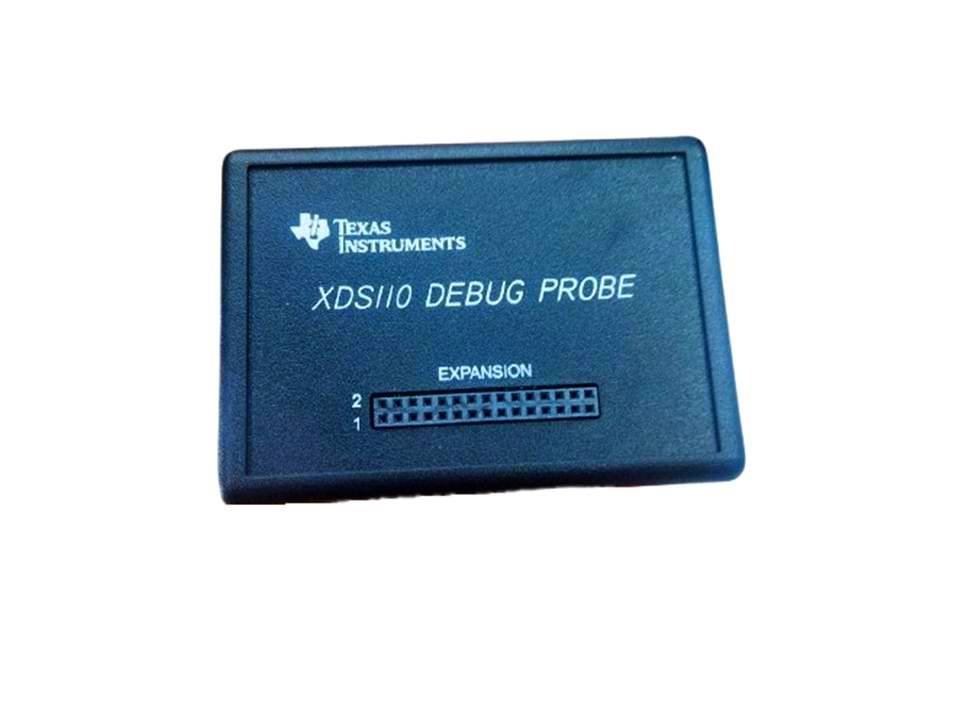

• XDS110 Debug Pod
• 20-Pin Debug Cable
• 14-Pin Auxiliary Cable
• TI 20-Pin to TI 14-Pin Adapter
• TI 20-Pin to ARM Cortex 20-Pin Adapter
• TI 20-Pin to ARM Cortex 10-Pin Adapter
• USB Cable
• Auxiliary Cable Breakout Board
• Quick Start Guide

Connectivity

Host Interface

• USB 2.0 Full Speed (12 Mbps)
• USB 2.0 High Speed (480 Mbps)

Target Interface

• TI 20-Pin JTAG Connector
• TI 14-Pin Adapter Support
• ARM Cortex 20-Pin Adapter Support
• ARM Cortex 10-Pin Adapter Support

Auxiliary Interface

• EnergyTrace™ Support
• Full-Duplex UART
• Four General Purpose I/O Pins

Supported Devices

SimpleLink™ Devices

• CC13xx
• CC26xx
• CC3x
• MSP432

Microcontrollers

• C2000 Series
• TM4C12x Series
• Hercules Series

Sitara Processors

• AM335x
• AM43xx
• AM57xx
• AM65xx
• AMIC1xx

Automotive Processors

• TDAx ADAS Processors
• DRAx Infotainment Processors

mmWave Sensors

• IWR14xx
• IWR16xx
• IWR68xx
• AWR14xx

DSP Processors

• C674x
• C66x
• C642x
• C645x
• Keystone I & II Devices
• 66AK2 Series
• TCI66x Series
• C55x Low-Power DSPs

Other Devices

• UCD3x Digital Power Controllers
• PGA970 SoC
• TI SoCs with PRU, Cortex-M, Cortex-R, Cortex-A, C674x and C66x cores

Unsupported Devices

• MSP430 Microcontrollers
• ARM9 Devices using Adaptive Clocking
• OMAPL13x
• AM1xxx
• DM64xx
• AWR12xx Sensors
• C54x DSPs
• C62x Series
• C670x Series
• C671x Series
• C672x Series
• C640x Series
• C641x Series
• F24x / C24x Devices

Measurement Capability

• Up to 75mA Native Measurement
• Up to 800mA with XDS110 EnergyTrace HDR Add-on

Additional functions include:

• Power Monitoring
• UART Communication
• GPIO Control

Software Requirements

• Code Composer Studio™ Version 7.0 or Later
• Compatible Third-Party Development Environment
• Target Board with Supported JTAG/SWD Interface

Applications

• Embedded System Development
• Firmware Debugging
• TI Processor Development
• SimpleLink Wireless Development
• Power Consumption Analysis
• Real-Time Trace Debugging
• Industrial and Automotive Development
