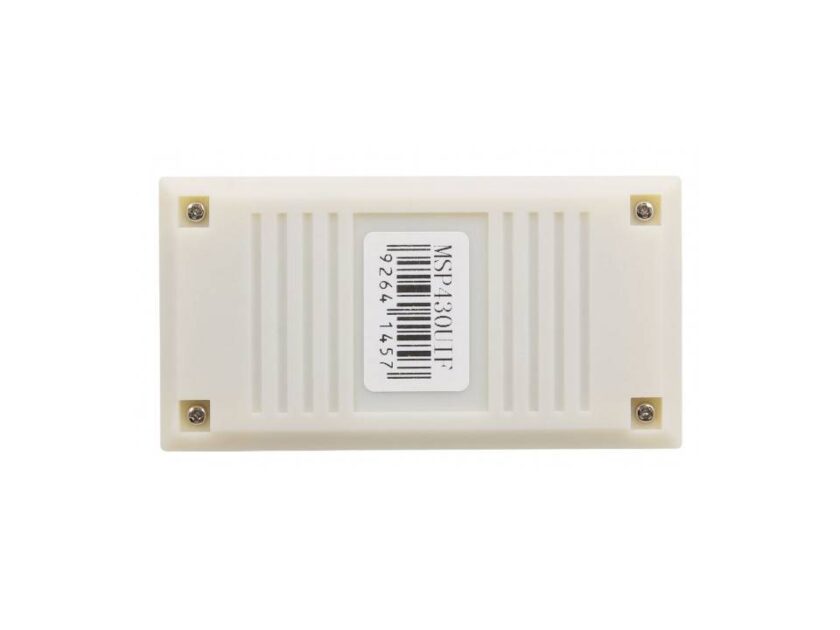

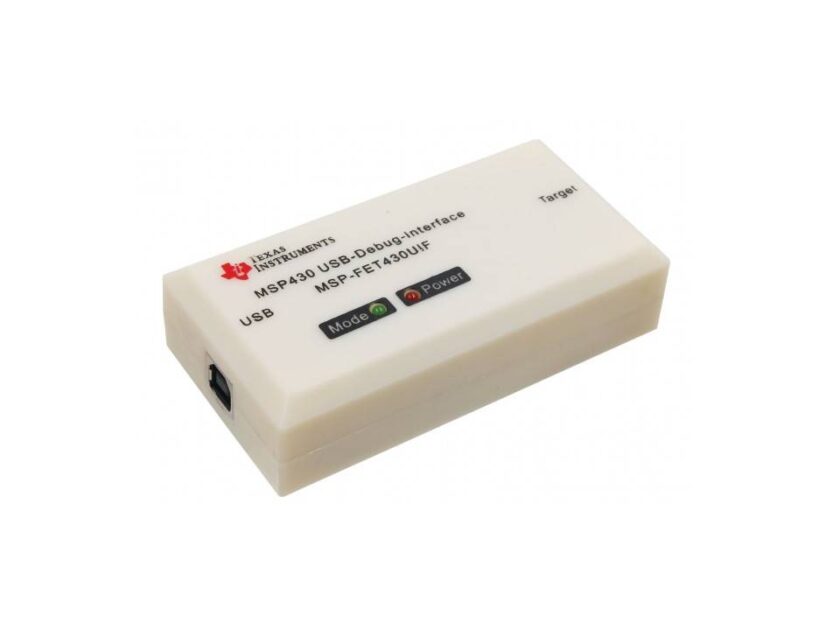

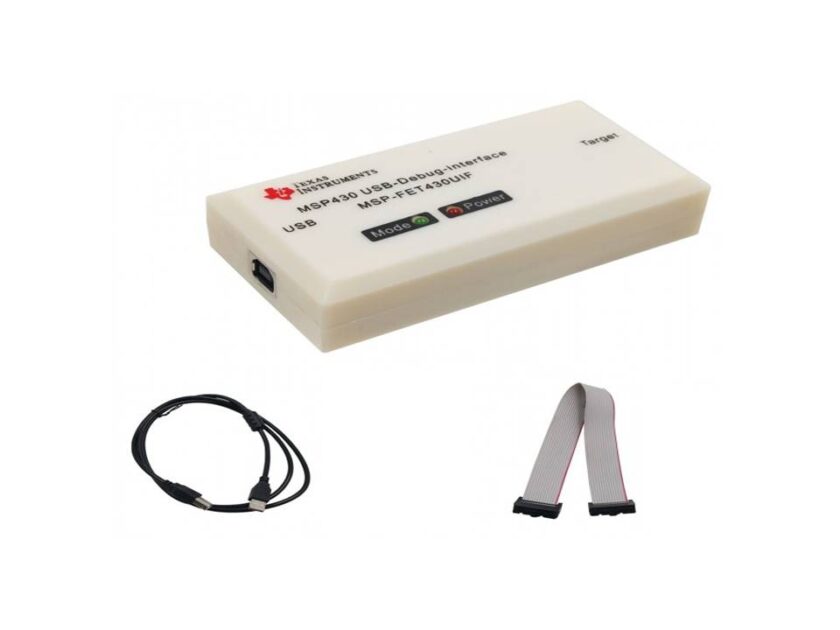

MSP430 Texas USB-Debug-Interface MSP-FET430UIF Support JTAG/BSL/SBW

3500.00 {Inc. GST}

Dispatch Time 15 to 20 Days

GST Input Tax Credit is available

Available on backorder

SKU: OMP-PR141 Category:


The MSP-FET430UIF is a powerful Flash emulation tool to quickly begin application development on the MSP430 MCU. It includes USB debugging interface used to program and debug the MSP430 in-system through the JTAG interface or the pin saving Spy Bi-Wire (2-wire JTAG) protocol. The Flash memory can be erased and programmed in seconds with only a few keystrokes and since the MSP430 Flash is ultra-low power, no external power supply is required. The debugging tool interfaces the MSP430 to the included integrated software environment and includes code to start design immediately. The MSP-FET430UIF development tools supports development with all MSP430 Flash devices.

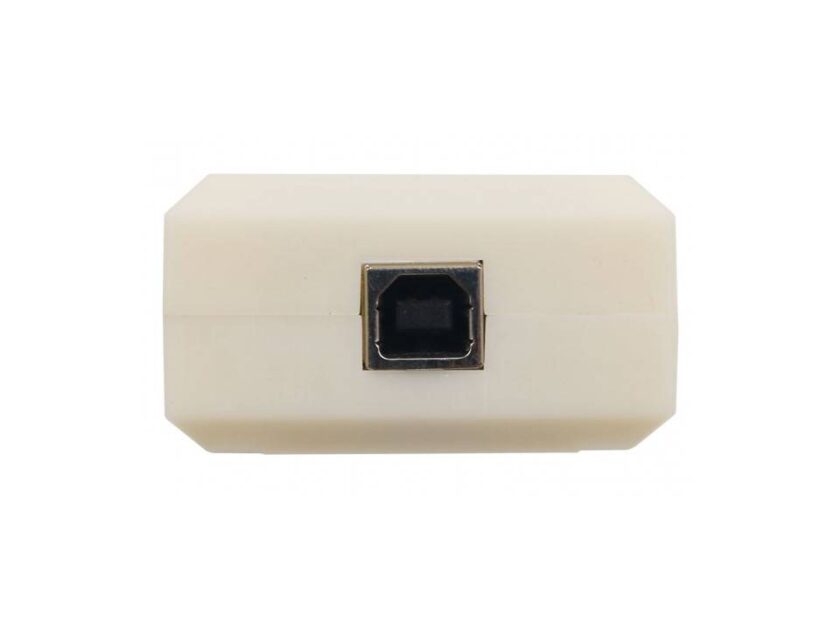

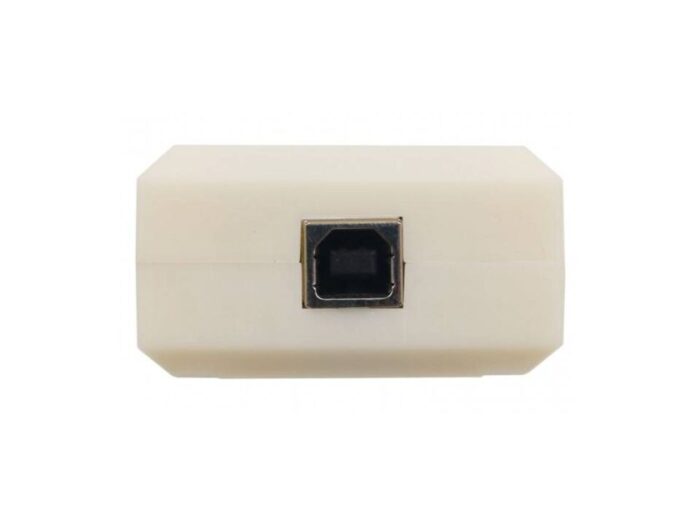

  • SB debugging interface (MSP-FET430UIF) connects a Flash based MSP430 MCU to a PC
  • Software configurable supply voltage between 1.8 and 3.6volts at 100mA
  • Supports JTAG Security Fuse blow to protect code

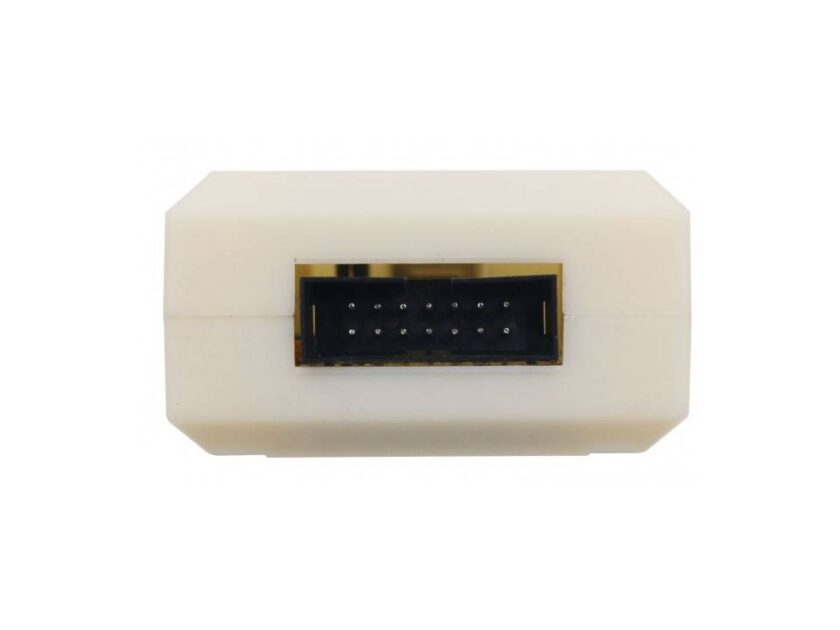

  • Supports all MSP430 boards with JTAG header
  • Supports both JTAG and Spy-Bi-Wire (2-wire JTAG) debug protocols

Additional information

Weight 100 g
