SOIC8 SOP8-DIP8 CLIP for RT809H RT809F T48 T56 TL866II EZP2019 TNM7000 Programers

270.00 {Inc. GST}

Cash On delivery available

GST Input Tax Credit is available

SKU: OMP-AD053 Category:

Description

FEATURES

Suitable for EEPROM 93CXX / 25CXX / 24CXX In-circuit Programming
TEST CLIP: SOIC 8 / SOP8
Connector type: Test Clip
Pin format: SOIC / SOP
Cable Size: 40 CM

USE: – SOIC8 CLIP SOP8 To DIP8 USED for RT809F Programmer, RT809H Programmer, TNM5000 Programmer, TL866II Programmer, EZP2013 Programmer, EZP2010 Programmer and EZP2013 Programmer.

Package Includes:
1 x Clip
1 x Cable

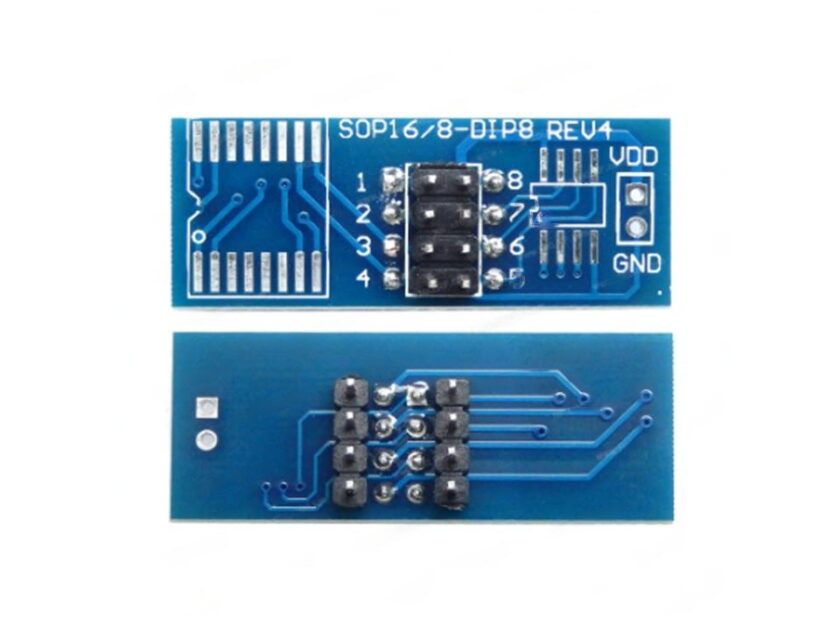

1 x Adapter board

Here’s a breakdown of the requirements and steps for creating a multi-function SOIC16 SOP16 SOP8 to DIP8 clip for various programming devices:

  1. Purpose: Enable programming of SPI FLASH chips in SOP8 and SOP16 packages using devices like RT809H, RT809F, T48, T56, TL866II, EZP2010, EZP2013, TNM7000, SoFi-SP8, and SoFi-SP16.
  2. Adapter Design: Create an adapter clip that allows for the conversion between SOIC16, SOP16, and SOP8 packages to DIP8, suitable for various programming devices.
  3. Compatibility: Ensure compatibility with different programming devices mentioned, covering a wide range of usage scenarios.
  4. Cable Size: The adapter clip should have a cable size of 40cm to allow for flexible positioning and usage.
  5. SPI Flash Chip Connection: Ensure proper connection for SPI flash chips in SOP8 and SOP16 packages, facilitating easy programming.
  6. Specific Example: Address the specific case of MX25L3205 chip, which is commonly found in notebooks and routers in SOP16 package. While many programmers support MX25L3205 chip in SOP8 package, a direct SOP16 package support might be lacking. However, the adapter clip allows for seamless programming by connecting SOP16 pins to corresponding SOP8 pins.
  7. Interchangeability: Emphasize that 25 SPI chips in SOP8 and SOP16 packages are interchangeable as long as the pin definitions are the same. This interchangeability simplifies the programming process and enables the use of SOP8 chips to operate on SOP16 chips, provided the chip models are identical.
  8. Operational Process: Highlight the simplicity of the process: connecting the corresponding SOP16 and SOP8 pins, thereby enabling the use of SOP8 chips to program SOP16 chips.

By following these points, you can design a versatile adapter clip that meets the requirements for programming SPI flash chips in various packages using different programming devices.

Additional information

Weight 100 g
