ISP Header for Xeltek Porgrammer

Description

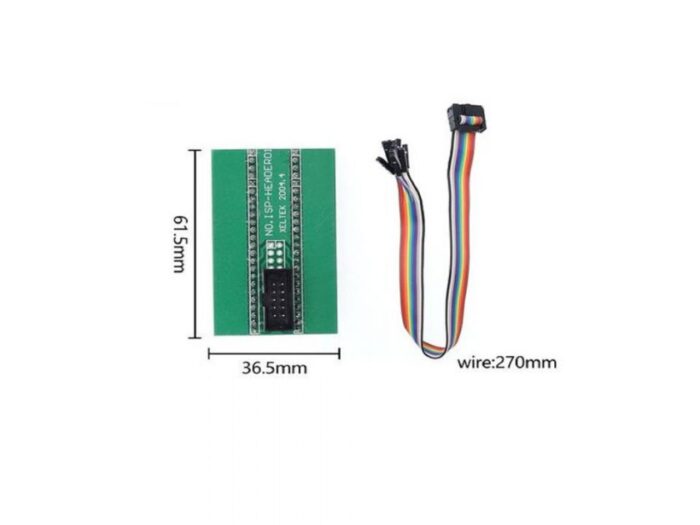

The PCB end of the adapter is composed of 48 pins, dual in line layout. Only the last 5 pins of each column of pins is used. So, it is just a 10 pin header.
Here is the pin mapping layout:
Pin#1 –> Brown
Pin#2 –> Orange
Pin#3 –> Green
Pin#4 –> Purple
Pin#5 –> White
Pin#6 –> Black
Pin#7 –> Grey
Pin#8 –> Blue
Pin#9 –> Yellow
Pin#10 –>Red
