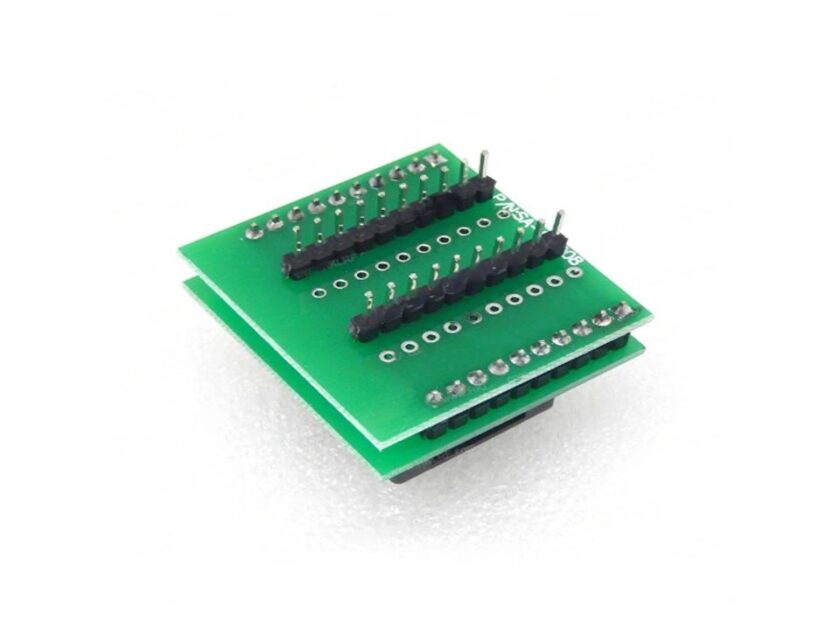

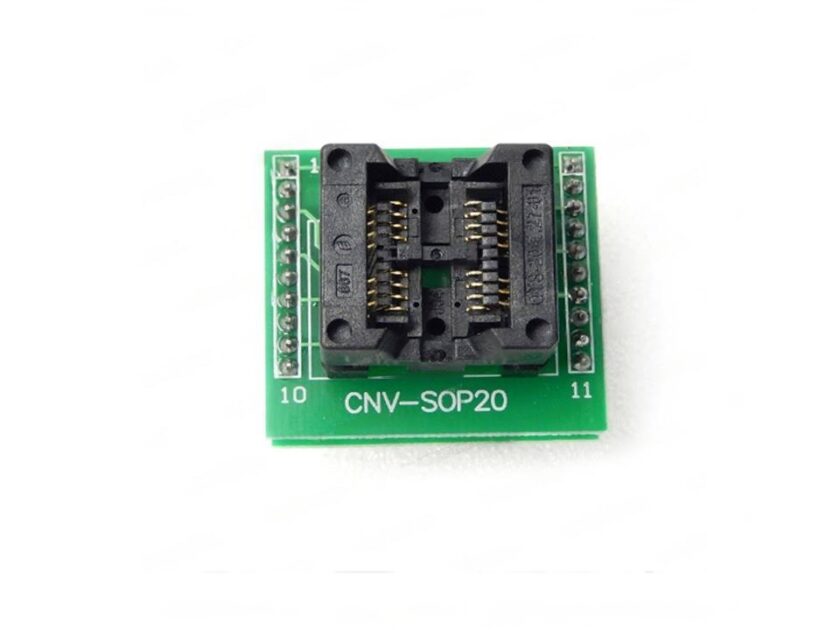

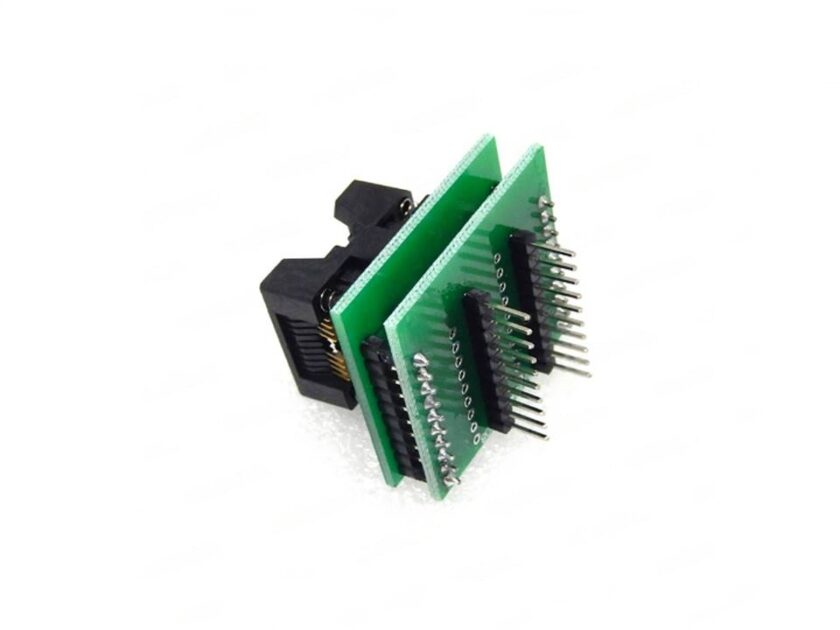

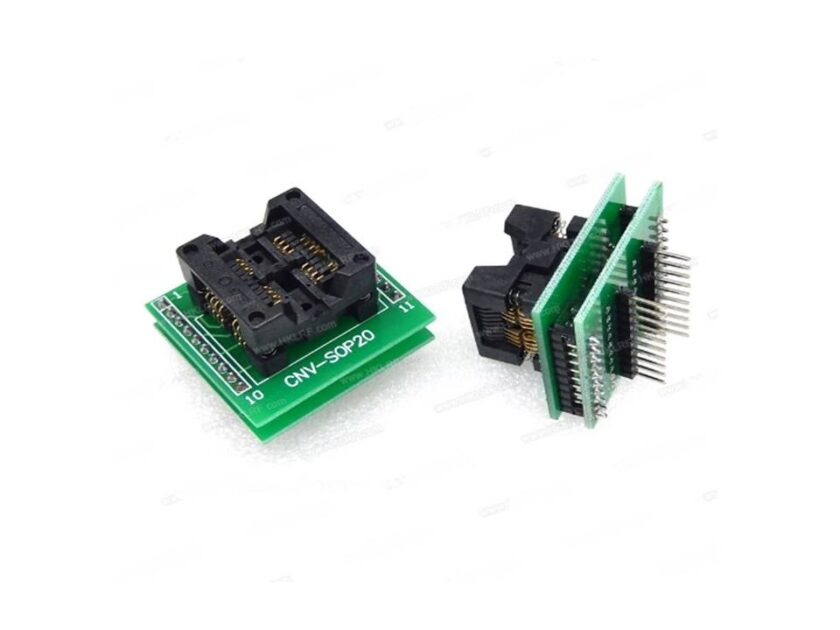

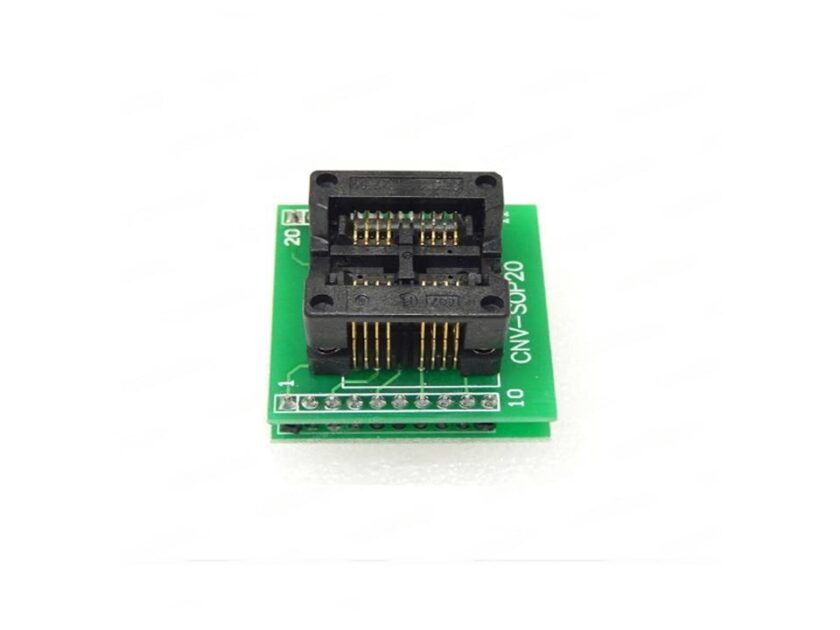

Double SOP8-DIP8 Adapter (SOP16-DIP20) OTS-20-1.27-01 (200mil)
₹950.00 {Inc. GST}
GST Input Tax Credit is available
Dispatch Time 12 to 15 days
Available on backorder
The Double SOP8-DIP8 Adapter (SOP16-DIP20) OTS-20-1.27-01 (200mil) is a specialized adapter designed to convert a SOP16 (Small Outline Package) IC into a DIP20 (Dual In-line Package) format, allowing it to be used on a standard breadboard or PCB with a 200mil (0.1-inch) pitch. This adapter is particularly useful for prototyping or testing SOP16 ICs in a DIP-compatible environment.
Key Features:
- Double SOP8-DIP8 Design:
– The adapter can accommodate two SOP8 ICs, effectively converting them into a single DIP20 footprint.
– This is useful for stacking or combining two SOP8 ICs into a single DIP-compatible package.
- SOP16 to DIP20 Conversion:
– The adapter is designed to convert a SOP16 IC into a DIP20 format.
– The SOP16 IC is mounted on the adapter, and the adapter provides DIP20 pins for easy insertion into a breadboard or PCB.
- Pitch:
– The adapter has a standard 200mil (0.1-inch) pitch, which is compatible with most breadboards and PCBs.
- OTS-20-1.27-01:
– This is the model number of the adapter, indicating its specific design and dimensions.
– The “1.27” refers to the pin spacing in millimeters (1.27mm pitch for the SOP16 IC).
- Compact and Durable:
– The adapter is typically made of high-quality materials to ensure durability and reliable connections.
Applications:
– Prototyping : Allows SOP16 ICs to be used on breadboards or prototype PCBs.
– Testing : Facilitates testing of SOP16 ICs in a DIP-compatible setup.
– Space-Saving : Combines two SOP8 ICs into a single DIP20 footprint, saving space on the PCB.
Usage:
- Place the SOP16 IC onto the adapter, aligning the pins correctly.
- Solder the IC to the adapter if necessary.
- Insert the DIP20 pins of the adapter into a breadboard or PCB.
Notes:
– Ensure proper alignment of the IC pins with the adapter to avoid damage.
– Double-check the pinout of the SOP16 IC to ensure correct connections on the DIP20 side.
This adapter is a handy tool for engineers, hobbyists, and students working with SOP16 ICs in a DIP-compatible environment.
| Weight | 100 g |
|---|
