SIM868 Quad Band GSM GPRS Module Combines GNSS technology

770.00 {Inc. GST}

Without GST Price Rs.652.54

GST Input Tax Credit is available



Out of stock

Category:

Description

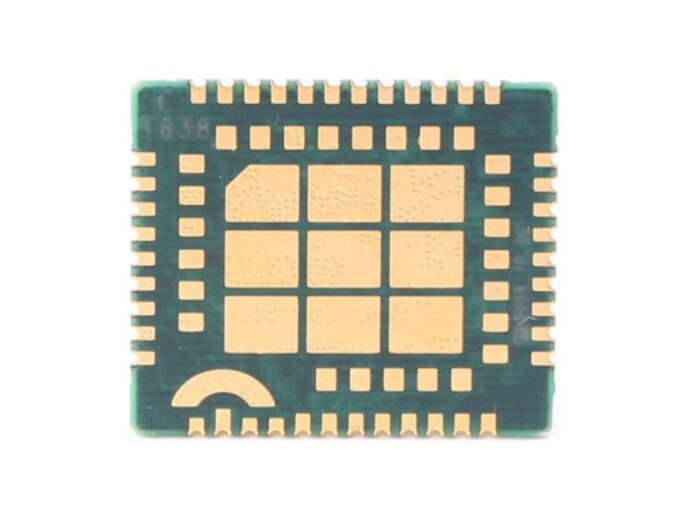

SIM868 module is a complete Quad-Band GSM/GPRS module which combines GNSS (GPS/GLONASS/BDS) technology for satellite navigation. The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications. Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.

GENERAL FEATURES
Quad-band 850/900/1800/1900MHz
GPRS multi-slot class 12/10
GPRS mobile station class B
Compliant to GSM phase 2/2+
Class 4 (2 W @ 850/900MHz)
Class 1 (1 W @ 1800/1900MHz)
Support GPS/GLONASS/BD
Dimensions 17.6*15.7*2.3mm
Weight 1.5g
Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
Supply voltage range 3.4 ~ 4.4V
Low power consumption
Operation temperature-40℃~85℃
SPECIFICATIONS FOR GPRS DATA
GPRS class 12 max. 85.6 kbps (downlink/uplink)
PBCCH support
Coding schemes CS 1, 2, 3, 4
PPP-stack
USSD
SPECIFICATIONS FOR SMS VIA GSM/GPRS
Point to point MO and MT
SMS cell broadcast
Text and PDU mode
SOFTWARE FEATURES
0710 MUX protocol
Embedded TCP/UDP protocol
FTP/HTTP
MMS
POP3/SMTP
DTMF
Jamming Detection
Audio Record
SSL
SPECIFICATION FOR GNSS
Receiver type
33 tracking /99 acquisition -channel
Sensitivity
Tracking -167 dBm
Re acquisition -161 dBm
Cold starts -149 dBm
Time-To-First-Fix
Cold starts 28s (typ.)
Hot starts <1s
Warm starts 22s
Accuracy
Horizontal position <2.5m CEP
INTERFACES
77SMTpads
SIM Card Interfaces
SIM card 3V/ 1.8V
Analog audio interface
RTC GNSS backup
I2C interface
USB interface
Serial interface
SD
GPIO
ADC
GSM Antenna pad
GNSS Antenna pad

Additional information

Weight 70 g
Item Code

 OMP-G017

Minimum Order Quantity

1 Piece
