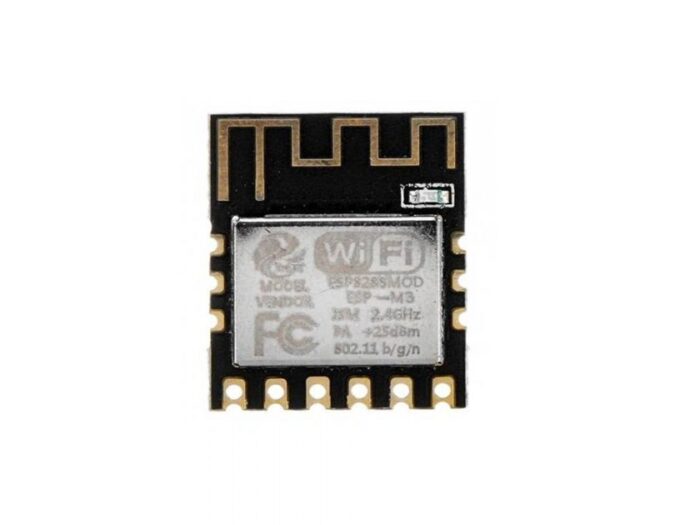

ESP-M3 ESP8285 WiFi Module

SKU: OMP-W040 Category:



The ESP8285 M3 WiFi Module is a highly technological electronic component especially designed to connect robotic or home automation projects to the World Wide Web with greater ease and cost.

It is composed of the ESP8285 chip, supporting the most commonly used networks (802.11 b / g / n), prepared for low-power wireless communication, operating with the Wi-Fi network at 2.4GHz frequency, supporting WPA, PA2PSK and WPS.


Model: ESP8285 ESP-M3

Network Support: 802.11 b / g / n / e / I

Working temperature: -40 ? – + 125 ?

Clock Speed: 80 MHz; (max 160 MHz)

Flash memory: 1 MB

Interface: HSPI, UART, I2C, I2S, PWM, GPIO

Direct WiFi Support (P2P)

Support mode: CCMP, TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc

Microcontroller: Tensilica L106 32-bit (MCU) and ultra-low 16-bit RISC
