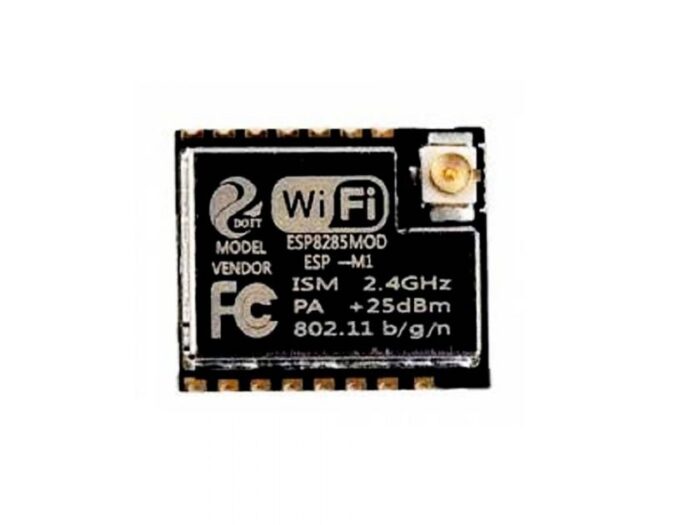

ESP-M1 ESP8285 WiFi Module

SKU: OMP-W038 Category:



ESP-M1 is encapsulated  by the high performance chip ESP8285, which is equal to ESP8266 chip plus 1M Flash. ESP8285 has the full and complete WiFi function, which can used independently and also used as a slaver with other Hoster MCU, which can start directly from the out-built Flash. In addition, the built-in high-speed buffer is benefit for the system performance. Especially, ESP8285 can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design.


Support 802.11 b/g/n/e/I;

Support WiFi Direct (P2P);

Support CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc., for hardware acceleration.


802.11 security certification: pre-certification and TSN

Support 802.11n (2.4GHz);

802.1h/RFC1042 frame encapsulation;


Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz, and RTOS;

Built-in TCP/IP protocol;

Built-in one-channel 10-bit high precision ADC;

Outboard interface: HSPI, UART, I2C, I2S, IR Remote Controk, PWM, GPIO;

Deep sleep current is 10uA; the cut-off current is smaller than 5uA;

Wake, connect and transmission data package within 2ms;

The consume power is smaller 1.0Mw (DTIM3) when at stand by status;

Built in 1M byte for SPI Flash.
