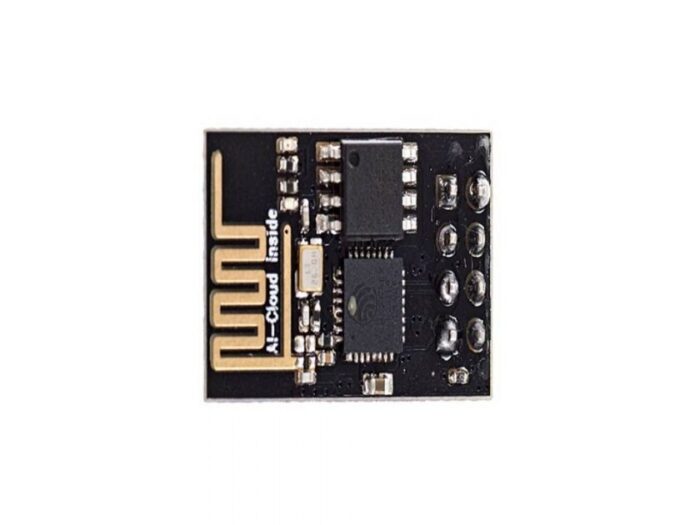

ESP-01 ESP8266 WiFi Module

SKU: OMP-W042 Category:



The ESP8266 ESP-01 is a Wi-Fi module that allows microcontrollers access to a Wi-Fi network. This module is a self-contained SOC (System On a Chip) that doesn’t necessarily need a microcontroller to manipulate inputs and outputs as you would normally do with an Arduino, for example, because the ESP-01 acts as a small computer. Depending on the version of the ESP8266, it is possible to have up to 9 GPIOs (General Purpose Input Output). Thus, we can give a microcontroller internet access like the Wi-Fi shield does to the Arduino, or we can simply program the ESP8266 to not only have access to a Wi-Fi network, but to act as a microcontroller as well.


Working frequency: 2400 – 2484 MHz

Working voltage: 3.0 – 3.6VDC

Working current: 200mA(MAX)

Serial port baud rate: 115200 (default), can be modified to other values by AT command

Serial communication format: 8N1

On-board flash capacity: 1M bytes

Antenna Type: Built-in PCB antenna is available.

Wireless Network Mode: station / softAP / SoftAP + station

Wireless criteria: 802.11 b / g / n

WIFI @ 2.4 GHz, support for WPA / WPA2 security mode

It is very easy to design projects by AT command
