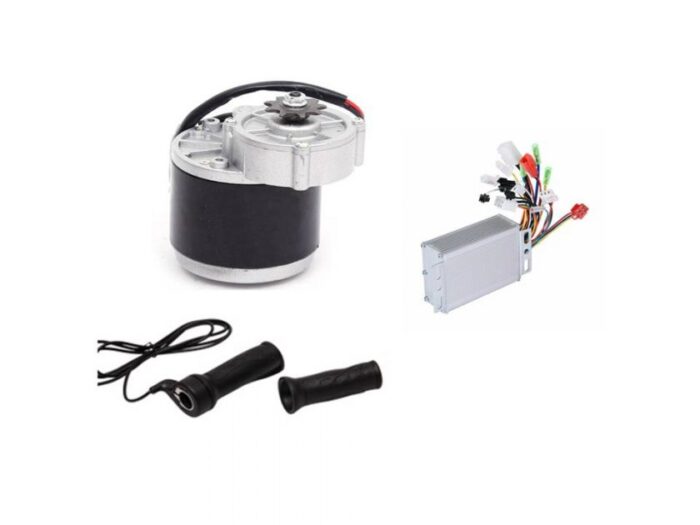

DIY Electric Bicycle Kit MY1016 250WZ2, Motor Controller, Twist Throttle
₹4750.00 {Inc. GST}
GST Input Tax Credit is available
Specifications:
MY1016Z
24 Volt DC Operation
Permanent Magnet DC Motor
Rated Load RPM: 400
No Load Current: <2.2 Amps
Rated Wattage: 250W (0.33 Horsepower)
Torque (NM): 22
Rated Current: 13.4 Amps
Efficiency: 78%
Reduction Ratio: 9.78:1
Direct Drive (No Free Spooling)
Suitable for Forward and Reverse Operations
Base Mount Model
9 Tooth Sprocket for 1/2″ x 1/8″ Pitch Chain
This motor is capable of rotation in either clockwise or counter clockwise by reversing the motor’s power wires.
For Chain Size: Pitch 0.5in; Roller Diameter 0.3in; Roller Width 0.16in
Packing list:
1pcs MY1016Z2 250W 24V brush motor
1pcs motor controller
1pcs throttle and dummy
| Weight | 1500 g |
|---|---|
| Item Code |
OMP-E070 |
| Minimum Order Quantity |
1 Piece |
