Arduino Yun Board

Description

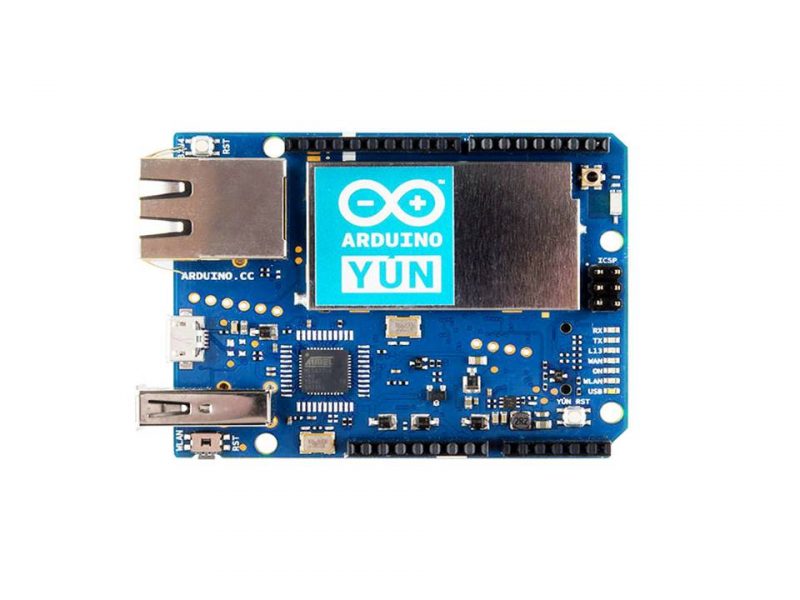

Arduino Yun Board is a micro controller board based on the Atheros AR9331. Arduino is an open-source physical computing platform based on a simple input/output board and a development environment that implements the Processing/Wiring language. The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux). The Atheros processor supports a Linux distribution based on Open WRT named Linino. The board has built-in Ethernet and Wi-Fi support, a USB-A port, micro SD card slot, 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a 3 reset buttons. The Yún is similar to the Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Yún to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial COM port.

Micro controller : ATmega32u4
RAM : 64 MB DDR2
Input Voltage : 5 V
Digital I/O Pins : 20
PWM Channels : 7
Analog Input Channels : 12
DC Current per I/O Pin : 40 mA
DC Current for 3.3V Pin : 50 mA
SRAM : 2.5 KB
Flash Memory : 16 MB
EEPROM : 1 KB
Clock Speed : 16 MHz
Weight : 32 g
Card Reader : Micro-SD
Operating Voltage : 3.3 V

Dispatch From:- Mumbai
