J-Link V9 LINK ARM Emulator Support A9 A8 V9.4 Programmer

4350.00 {Inc. GST}

GST Input Tax Credit is available

Dispatch Time 12 to 15 days

Description

J-Link is a USB powered JTAG emulator supporting a large number of CPU cores. Based on a 32-bit RISC CPU, it can communicate at high speed with the supported target CPUs.J-Link is used around the world in tens of thousands places for development and production (flash programming) purposes. J-Link is supported by all major IDEs such as IAR EWARM, Keil MDK, Rowley Cross Works, Atollic True STUDIO, IAR EWRX, Renesas HEW, Renesas e2studio, and many others. Including all models, more than 100,000 J-Links have been sold so far, making J-Link probably the most popular emulator for ARM cores and the de-facto standard.

FEATURES:

This Product have Direct download into flash memory of most popular micro controllers supported, Supported CPUs: Any ARM7/9/11, Cortex-A5/A8/A9, Cortex-M0/M1/M3/M4, Cortex-R4,RX100 / RX200 / RX610 / RX621 / RX62N / RX62T / RX630 / RX631 / RX63N, Download speed up to 1 MBytes/second, Supports unlimited breakpoints in flash memory, Setting breakpoints in external flash memory of Cortex-M systems is possible-Link’s Unlimited Flash Breakpoints technology only, Supported by all major IDEs, Supports concurrent access to CPU by multiple applications, Cross platform support (runs on Windows, Linux, Mac OS X) 4,Intelligence in the emulator firmware, Remote Server included. Allows using J-Link remotely via TCP/IP,GDB Server included, Production flash programming software (J-Flash) available, Software Developer Kit (SDK) available, Supports multiple target interfaces: JTAG, SWD,Supports SWV/SWO (Serial Wire Viewer/Serial wire output),Wide target voltage range: 1.2V-3.3V,5V tolerant, Supports JTAG chains with multiple devices, Embedded Trace Buffer (ETB) support, Various target adapters available, including optical isolation adapter,RDI interface DLL available, Fully plug and play compatible, No power supply required, powered through USB,Support for adaptive clocking, All JTAG signals can be monitored, target voltage can be measured, Target power supply: J-Link can supply up to 300 mA to target with overload protection

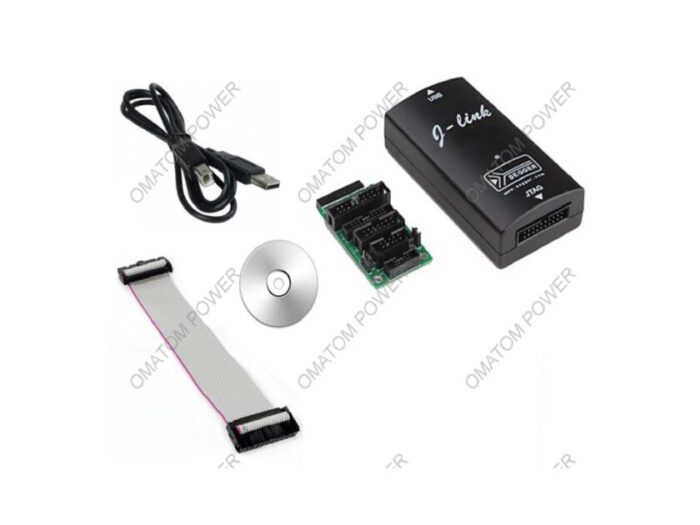

Package List:
1 x J-link V9 ARM Emulator
1 x USB Cable
1 x Connector Cable
1 x J-link ULINK2 Emulator V8 all-ARM JTAG Adapter Converter

It also supports MINI2440, TQ2440 and other New Version and Popular ARM board. It includes SWD 6PIN interface and SWD 4PIN port. It is also compatible with sockets as follow: 20PIN Pitch = 2.54MM20PIN Pitch = 2.0MM10PIN Pitch = 2.54MM10PIN Pitch = 2.0MM14PIN Pitch = 2.54 MM

Additional information

Weight 450 g
Item Code

OMP-031

Minimum Order Quantity

1 Piece
